LCIS

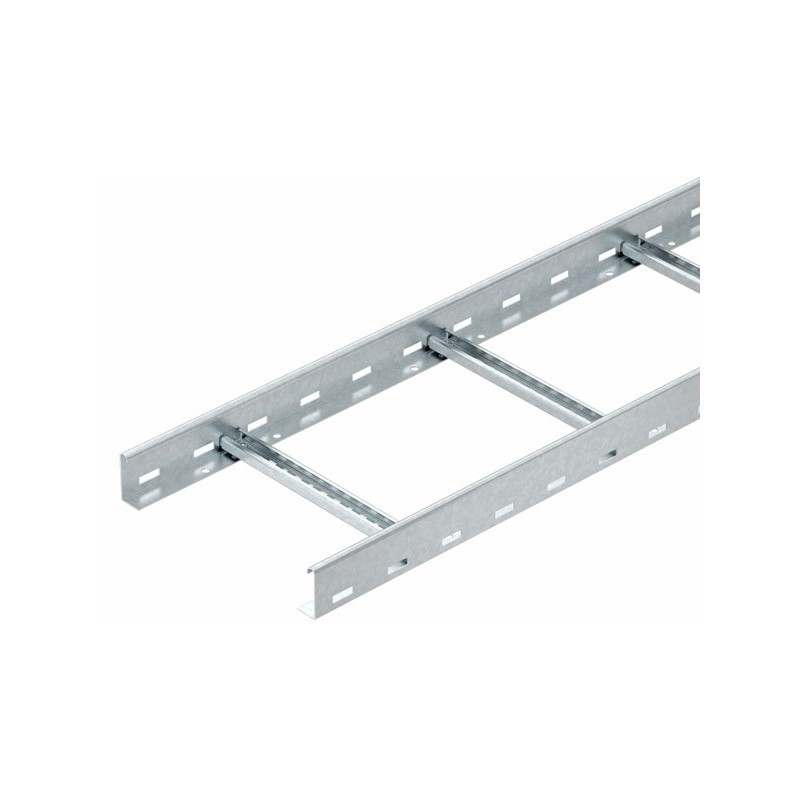

Cable ladder LCIS

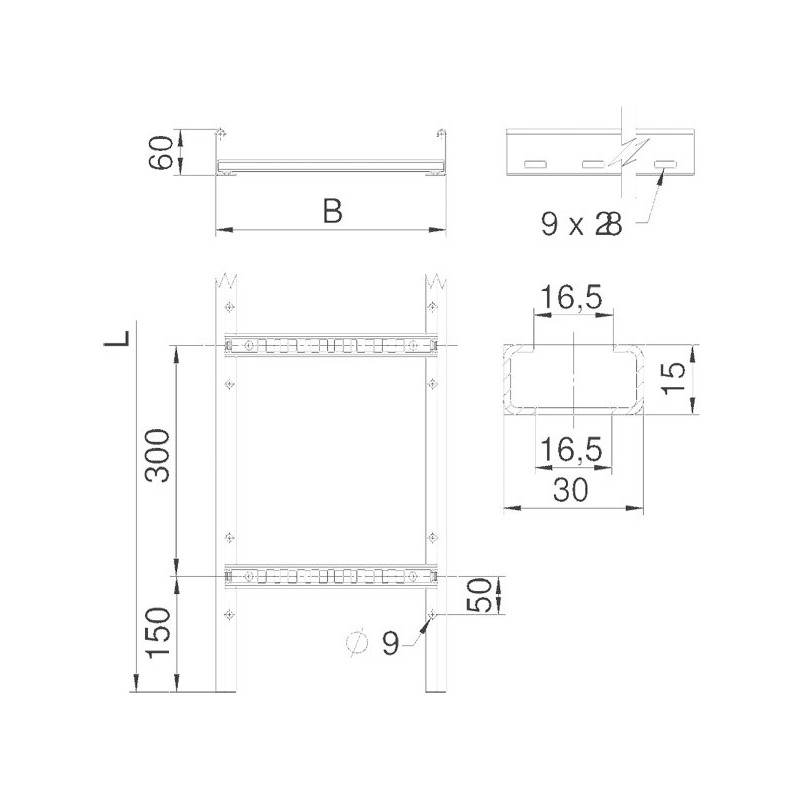

Cable ladder with 60 mm side height with welded C30 profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamps, type LKS 40. The slot dimension of the frame is 16.5 mm and the appropriate clamp clip is type 2056.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.

Code	Description	Price	Price+VAT	Unit
6209610	LCIS 620 3 FS kaabliredel perforeeritud ristpulk, keevitatud, 60x200x3000 St FS OBO	€26.32	€32.11	tk
6209612	LCIS 630 3 FS kaabliredel perforeeritud ristpulk, keevitatud, 60x300x3000 St FS OBO	€28.61	€34.90	tk
6209614	LCIS 640 3 FS kaabliredel perforeeritud ristpulk, keevitatud, 60x400x3000 St FS OBO	€29.63	€36.15	tk
6209616	LCIS 650 3 FS kaabliredel perforeeritud ristpulk, keevitatud, 60x500x3000 St FS OBO	€31.93	€38.95	tk
6209630	LCIS 620 6 FS kaabliredel perforeeritud ristpulk, keevitatud, 60x200x6000 St FS OBO	€51.92	€63.34	tk
6209632	LCIS 630 6 FS kaabliredel perforeeritud ristpulk, keevitatud, 60x300x6000 St FS OBO	€56.10	€68.44	tk
6209643	LCIS 620 6 FT, kaabliredel perf.ristpulk,keevitatud, 60x200 OBO	€14.15	€17.26	m
6209645	LCIS 630 6 FT, kaabliredel perf.ristpulk, keevitatud 60x300 OBO	€15.32	€18.69	m
6209647	LCIS 640 6 FT, kaabliredel perf.ristpulk, keevitatud 60x400mm OBO	€16.03	€19.55	m
6209649	LCIS 650 6 FT kaabliredel perf.ristpulk,keevitatud 60x500 OBO	€17.05	€20.80	m
6209651	LCIS 660 6 FT kaabliredel perf.ristpulk keevitatud 60x600 OBO	€17.96	€21.91	m
