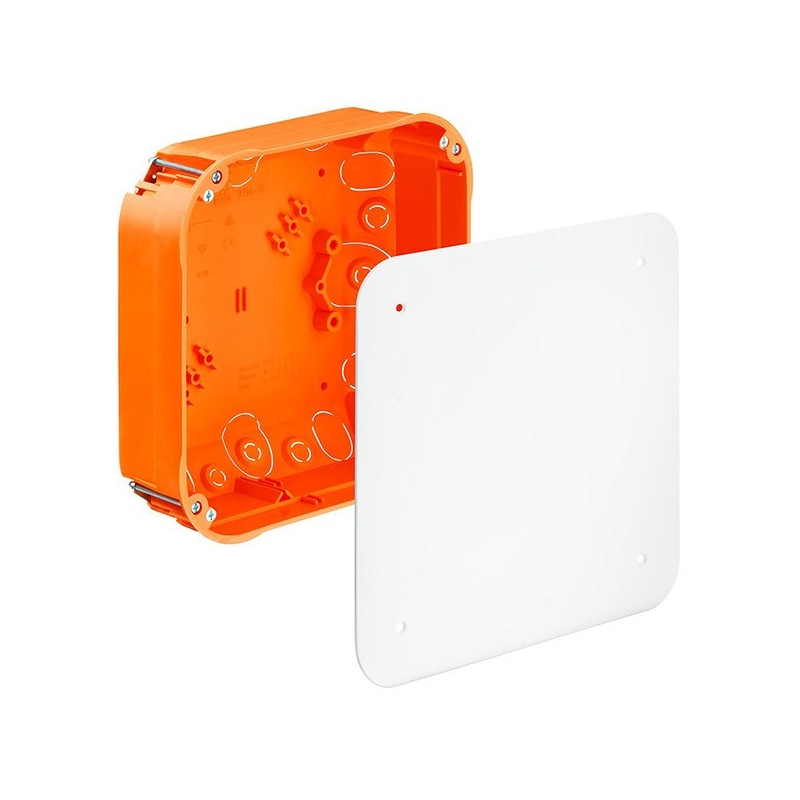

9196-91 165x165mm

Junction casing 165 x 165 x 72 mm
Order number: 9196-91
EAN: 4013456231009

For installation: DIN terminal strips, TS 35 standard rails for terminal strips, etc., terminal blocks up to 16 mm²
With drilling template (supplied)
Including cover

Length165 mm
Width165 mm
Depth72 mm
Cut hole Ø4 x 68 mm
For terminals up to16 mm2
Break-out openings Ø 20 mm8
Break-out openings Ø 25 mm2
Break-out openings Ø 32 mm2
Cable entries for NYM and low-voltage cabling
Use separator wall
For maximum of 2 electrical circuits
