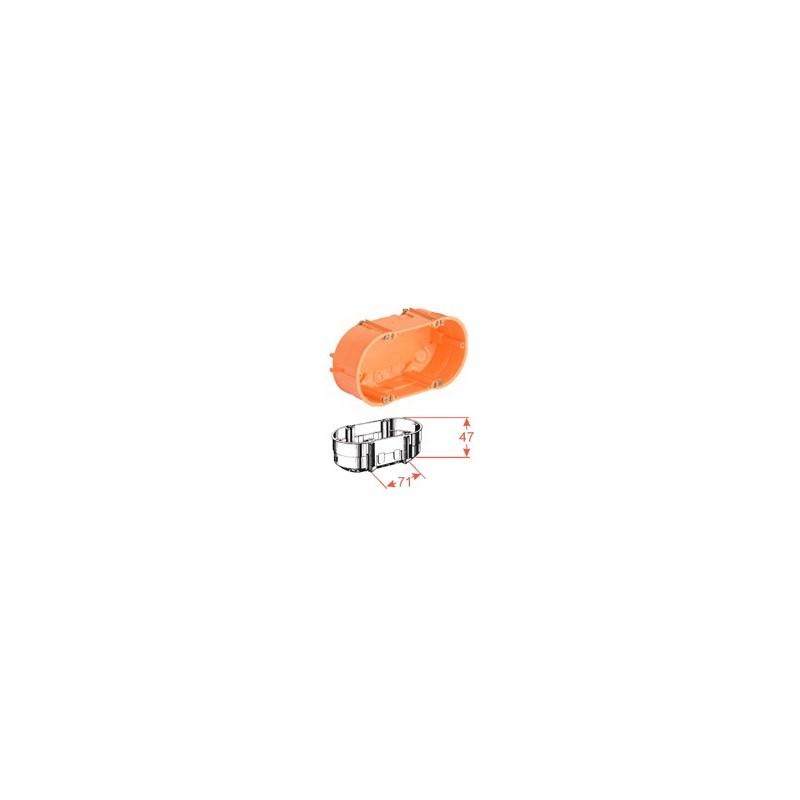

9062-02 2-ne toos

Two gang junction box

• cutting hole 2 x Ø 68 mm
• for plate thickness 7 - 35 mm
• for 2 electrical inserts or 1 block insert
• with 4 screws
• can also be used as junction box (incl. 2 switch inserts) -
• use separating wall 9062-22  to separate circuits
• mounting screws distance 60 mm
• 6 entries for 20 mm Ø DIN EN conduitsA
• 6 NYM wiring entries
• 2 wiring entries for low voltages
• with holding ring
• fireproof up to 850° C to VDE 0606 norm
• protection class IP 3X
• dimensions to DIN standard
• automatic fully insulated through wiring in combinations of boxes and junction boxes for switches and sockets possible
• automatic strain relief of sheathed cables, self-clamping of conduits
• can also be used as junction boxes with screwed down cover to DIN VDE 0606 norm
