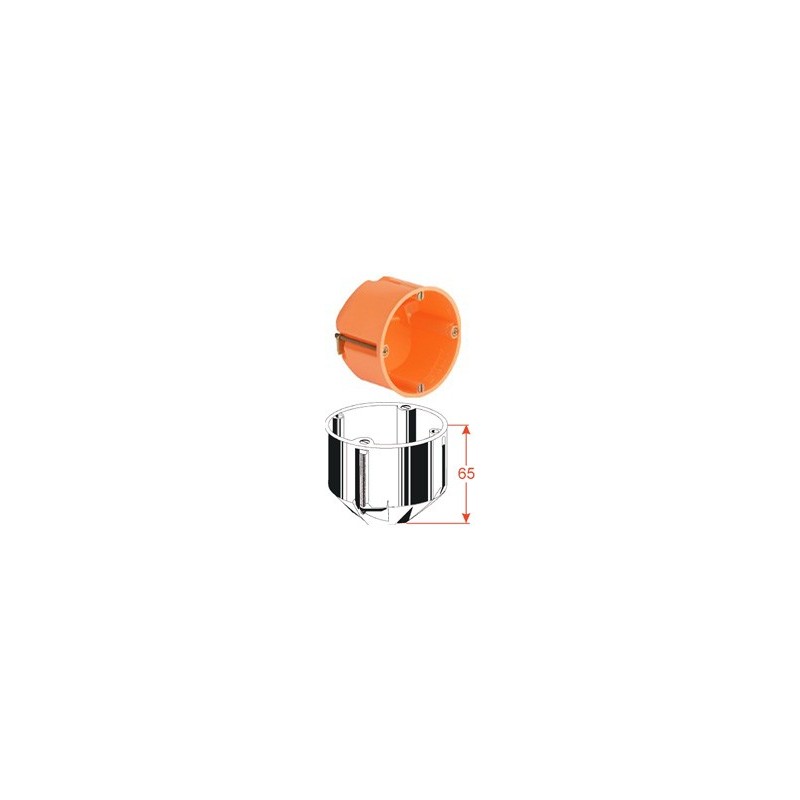

9066-01 Tuulekindel toos

One gang junction box

• wind tight version
• cutting hole Ø 68 mm
• for plate thickness 7 - 35 mm
• cable or conduit entries to max. Ø 25 mm made by means of Universal opening cutter 1085-80
• switch screw separation 60 mm
• with holding ring
• fireproof up to 850° C to VDE 0606 norm
• protection class IP 3X
• dimensions to DIN standard
• normed combination distance 71 mm
• fully insulated through-wiring in combinations of boxes and junction boxes for switches and sockets through support connectors
• automatic strain relief of sheathed cables, self-clamping of conduits
• can also be used as junction boxes with screwed down cover to DIN VDE 0606 norm
• certifications for wind tightness (e.g. blower door test) and for use in hygienic areas (hospitals, medical practices, etc.) are available.
