Dali 1Ch LED Dimmer 4A 12-28V

DALI 1Ch LED Dimmer Constant Voltage 12-24V - 4A

1 channel DALI LED-Dimmer
Suitable for constant voltage LEDmodules and stripes

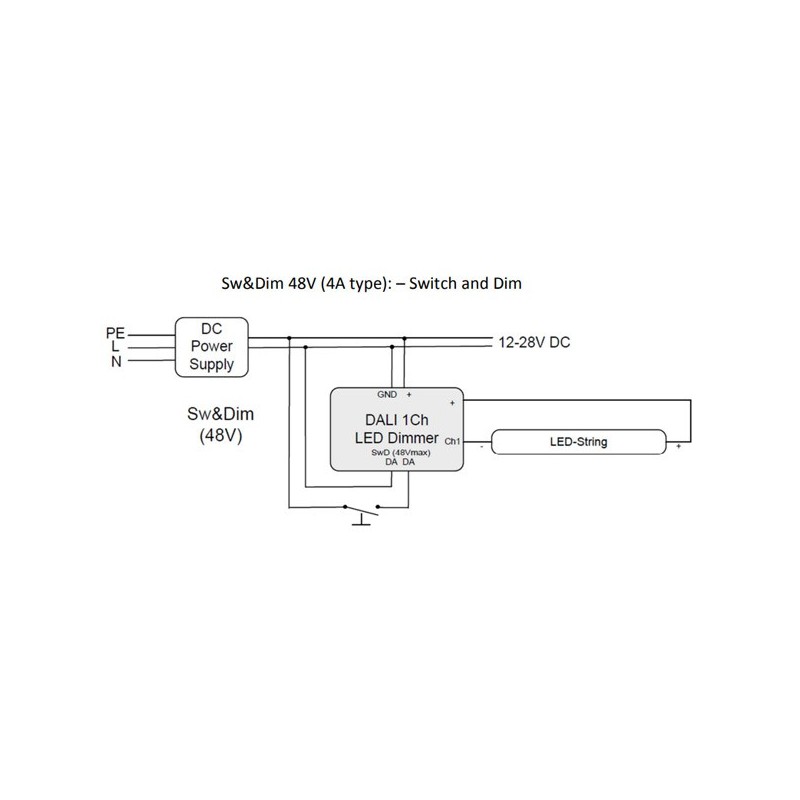

Sw&Dim -  < 48V control voltage
1 switch inputs offer control of light level control without DALI, up from FW 4.0 device can be alternatively controlled directly by a motion sensor (corridor function)
dimming range 0.1%-100%
adjustable PWM-frequency  (122Hz / 244Hz / 488Hz / 976Hz)

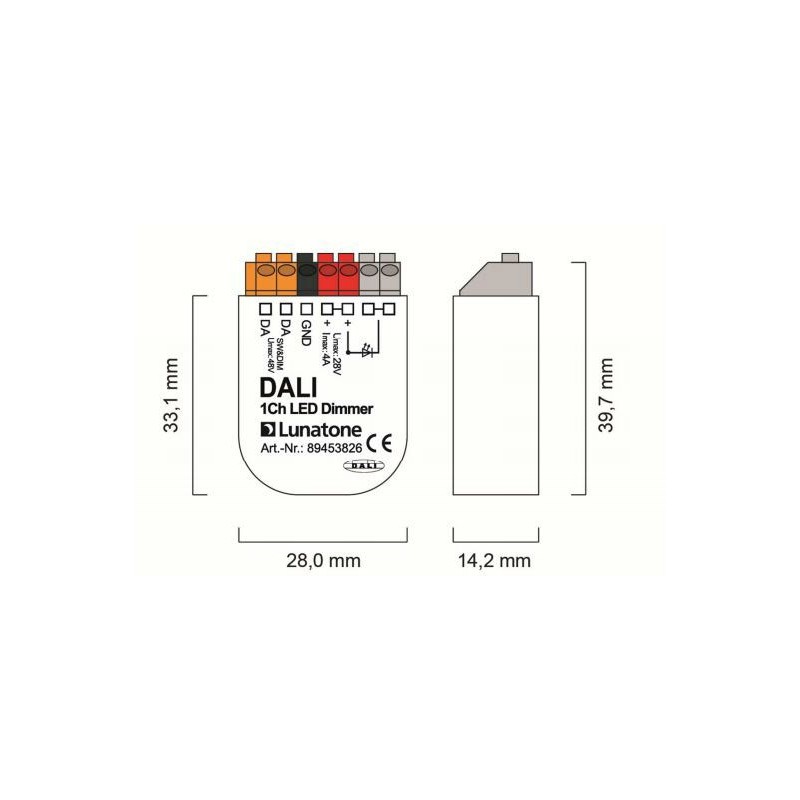

compact types for integration in luminaires or remote ceiling
supply voltage type : 12V to 28V DC
max. input current of 4A
low standby power consumption
high efficiency
configuration via PC-software DALICockpit and DALI USB-interface
user-friendly factory default settings
