Dali 1Ch LED Dimmer 8A 12-48V

Overview

1 channel DALI LED-Dimmer
suitable for constant voltage LEDmodules and stripes

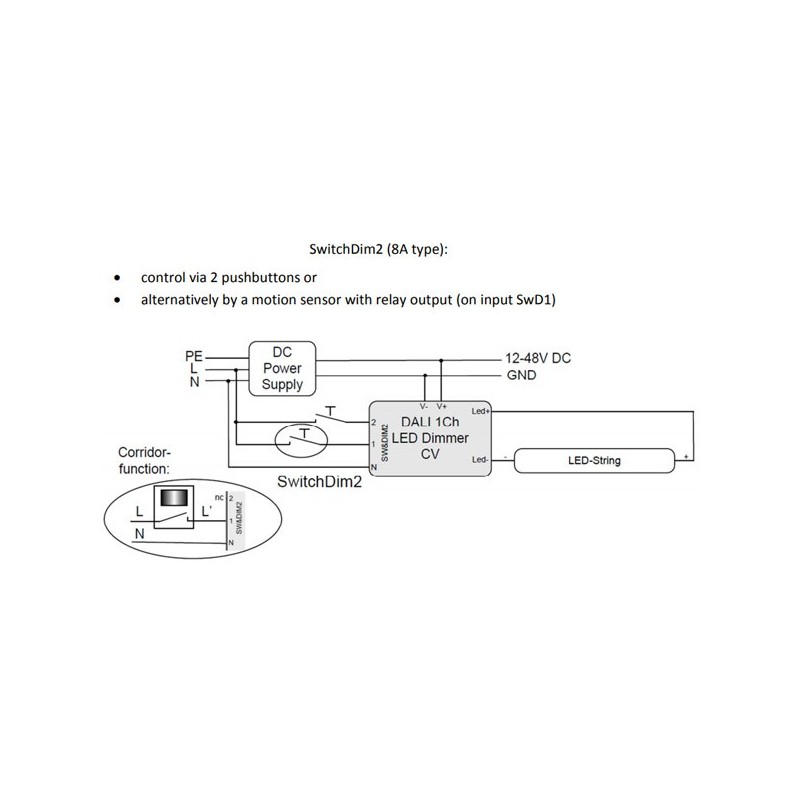

SwitchDim2: 2 switch inputs offer control of light level control without DALI, up from FW 4.0 device can be alternatively controlled directly by a motion sensor (corridor function)
dimming range 0.1%-100%
adjustable PWM-frequency (122Hz/244Hz/488Hz/976Hz)
compact types for integration in luminaires or remote ceiling
supply voltage: 12V to 48V DC
max. input current  8A
low standby power consumption
high efficiency
configuration via PC-software DALICockpit and DALI USB-interface
user-friendly factory default settings.

RECOMMENDATION: Care should be taken on keeping cable lengths between DC power supply and dimmer as well as between dimmer and luminaires (Led-Strings) as short as possible. This kind of installation will minimize the influence of voltage drops.
