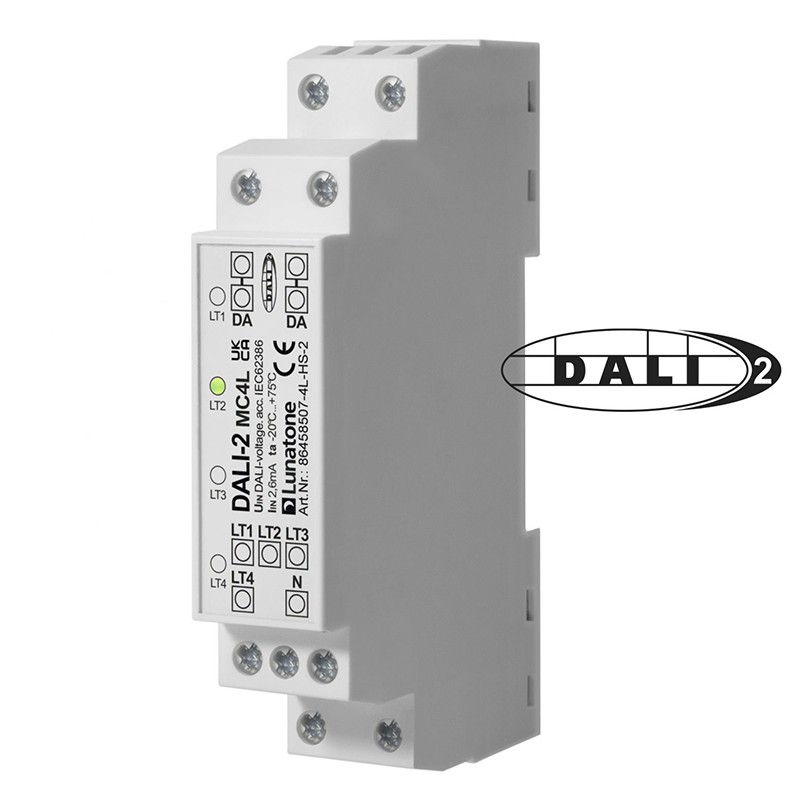

• DALI-2 control module with 4 switching inputs for mains voltage
• galvanic isolation between switching input and DALI-line
• Multi-master capable: Several modules can be installed within a DALI circuit.
• Different DALI commands, destination addresses and switching modes can be assigned to each input
• Integrated DALI-2 application controller
• Four DALI-2 pushbutton instances are available for an easy integration
• In addition to the standard DALI commands, the application controller also supports DALI DT8 TC and RGB (W) control
• New: Alternative button function: A second function can be assigned to each input. Activated / deactivated via a scene command or switch at input 4. Thus,
Offering an easy solution to the partition wall problem.
• With the application controller Sequences, macros and other functions can be realised.
• Easy configuration via Lunatone DALI USB interface and DALI-Cockpit Software Tool.
• Light indication of active inputs.
• DALI-2 control unit according to IEC62386-103
