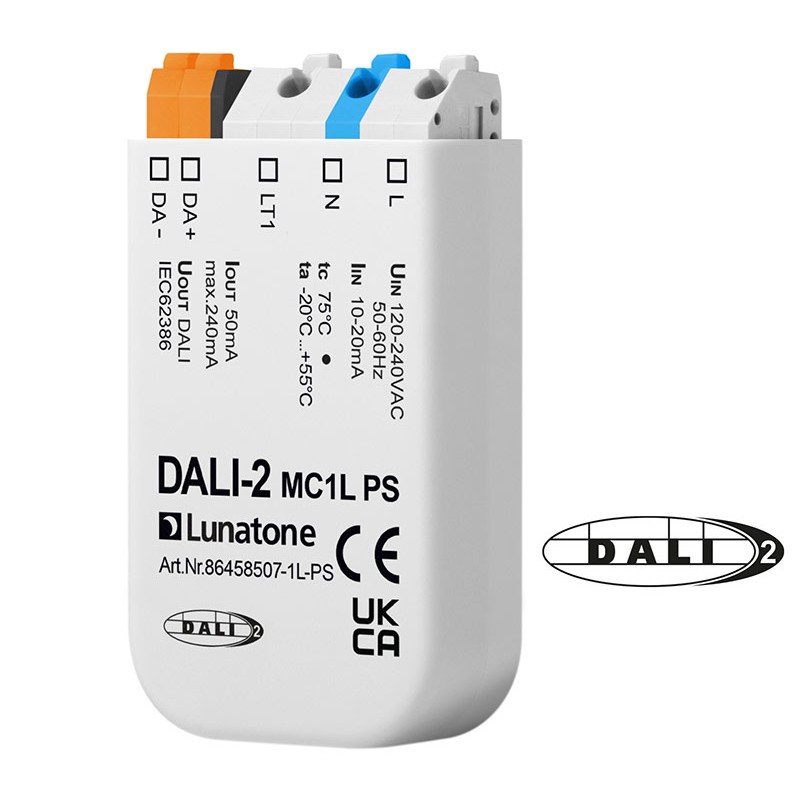

DALI-2 control module with 1 switching input for mains voltage
Integrated DALI Bus power supply - 50mA
galvanic isolation between switching input and DALI-line
Multi-master capable
Different DALI commands, destination addresses and switching modes can be assigned to each input
Integrated DALI-2 application controller
In addition to the standard DALI commands, the application controller also supports DALI DT8 TC and RGB (W) control
One DALI-2 pushbutton instance is available for an easy integration
Suitable for push-buttons, as well as switches
Alternative button function: A second function can be assigned to each input. Activated / deactivated via a scene command. Thus, Offering an easy solution to the partition wall problem.
Easy configuration via Lunatone DALI USB interface and DALI-Cockpit Software Tool
Easy installation: the device can be installed in a flush-mounted installation
box and is supplied via the DALI bus
DALI-2 control unit according to IEC62386-103
