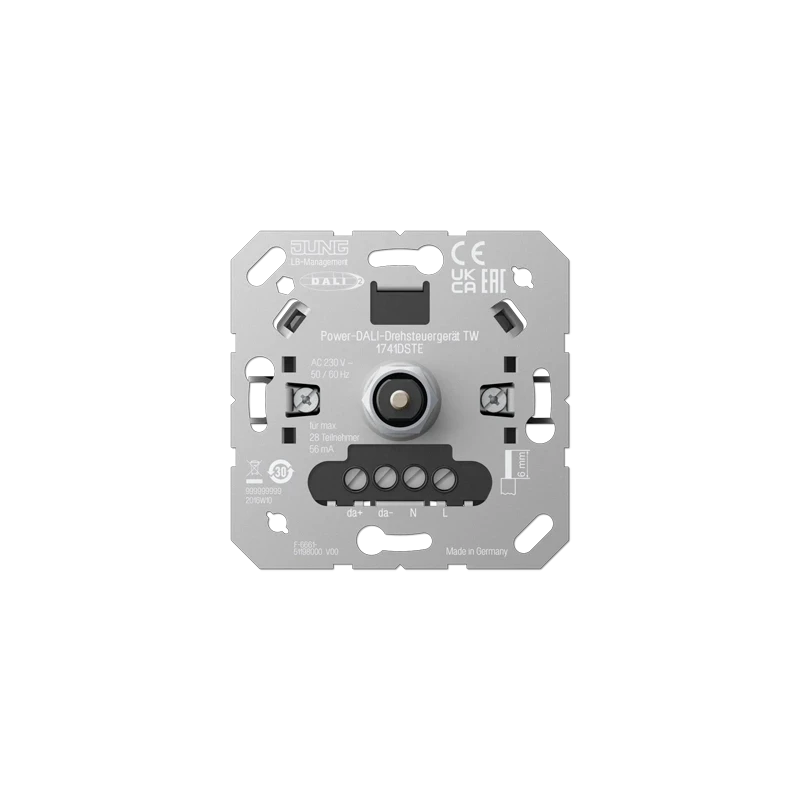

DALI2 TW dimmer 1741DSTE 1740DSTE

Intended use

Brightness setting for luminaires with DALI/DALI-2 interface
Setting of colour temperature for luminaires with DALI Device Type 8 for tunable white acc. to IEC 62386-209
Installation in flush box with dimensions according to DIN 49073

Product characteristics

The Power DALI rotary controller TW supplies the control current for up to 28 DALI devices.
Saving of colour temperature limiting values
Saving of basic brightness and switch-on brightness
Certified acc. to IEC 62386-101 and -103 (Single Master)
The device functions as a DALI-2 single master and should not be combined with other DALI controllers.

Centre plates:

AS / A ranges: ref.-no. A 1740 ..
CD range: ref.-no. CD 1740 ..
LS range: ref.-no. LS 1740 .., .. 1740 ..
