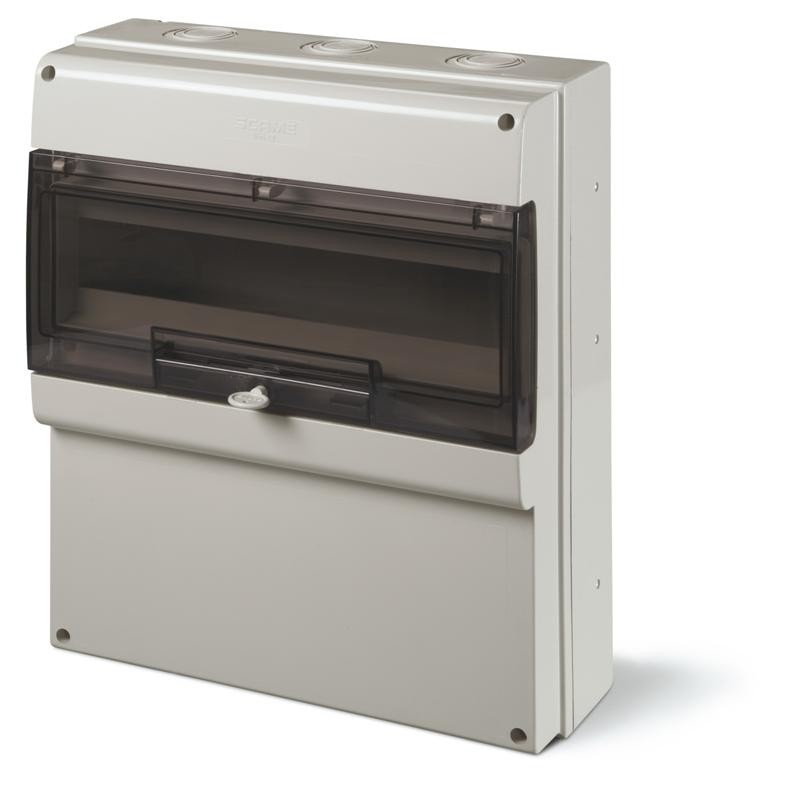

Domino modular pinnapealne kilp IP66
Domino modular pinnapealne kilp IP66

Domino modular pinnapealne kilp IP66

TECHNICAL CHARACTERISTICS

  • Protection degree IP66 to IEC529 and EN 60529
  • Non-ageing elastomer seals.
  • Double insulation (use the bottom insulating caps supplied)
  • Made of halogen-free self-extinguishing thermoplastic material. RAL 7035 gray, abnormal heat and fire resistant up to 650° C (glow-wire test to IEC 695-2-1) Dimensional stability incontinuous operation from -20°C to +85°C.
  • Resistance to chemicals (weter, saline solutions, acids, bases, mineral oils) and weathering.
  • Reference standard IEC 670
  • The units are approved for the execution of assemblies to EN 60439-1 and EN 60439-4
Code Description Price Price+VAT Unit
672.4116
Kilp 16 mood.IP66 +paneel LP uks SCAME 400x328x140 mm €44.00 €53.68 tk
672.5116
Kilp 16 mood.IP66+ paneel LP uks SCAME 550x328x140 mm €55.00 €67.10 tk
Code: 672.4116
Kilp 16 mood.IP66 +paneel LP uks SCAME 400x328x140 mm
Price: €44.00
Price+VAT: €53.68
tk
Code: 672.5116
Kilp 16 mood.IP66+ paneel LP uks SCAME 550x328x140 mm
Price: €55.00
Price+VAT: €67.10
tk
