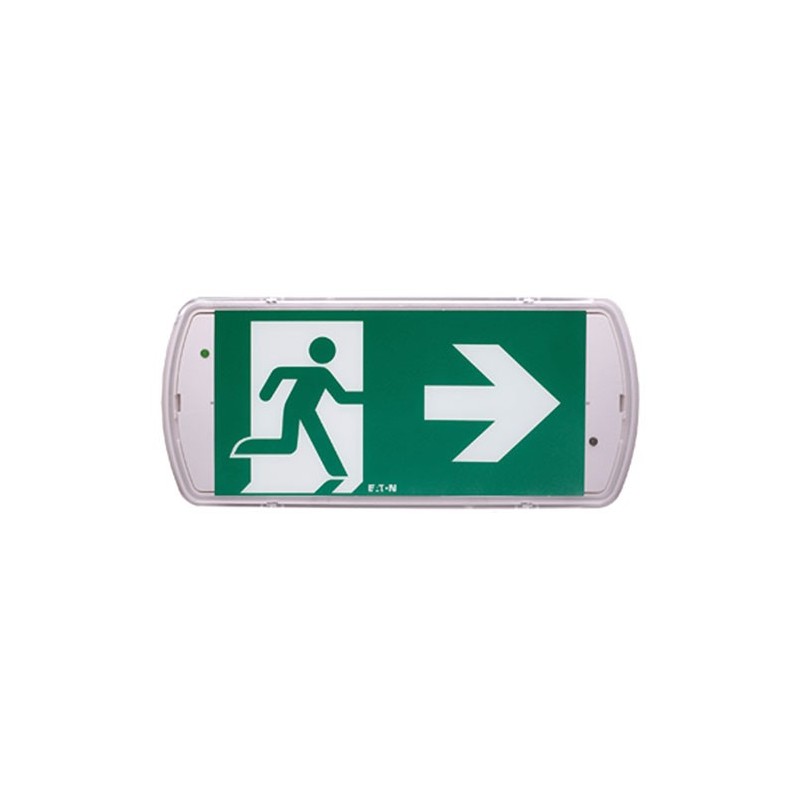

SafeLite SL30 turvavalgusti
Safelite self-contained luminaires
Compliant with EC standards All applications covered (Escape route, Anti-panic, Exit sign) One product throughout installation for same look and feel across the building Accessories available for a better integration in all buildings Easily installed as retro fit due to good performance ensuring scheme compliance 1h & 3h Duration Latest generation LEDs with high lumen/watt ratio
Function - Use either as an emergency luminaire or exit sign
Testing system - Stand Alone
Housing - Polycarbonate, Glow wire test : 850°C, RAL9003
Type of mounting - Surface
Options : Recessed box for concrete, recessed base for ceiling, double sided diffuser, set of 3 adhesive exit legends (L, R, D)
Terminals - up to 1x2,5 mm2 per connection
Degree of protection - IP42/IK04 or IP65/IK07
Operation Mode - Non Maintained or Maintained & Non Maintained mode selectable
Connection voltage - 230V -/+ 5% [220V-240V] 50-60Hz
Permissible ambient temperature: +5°C to +40°C
Battery Ni-Cd Light source - LED strip
Viewing distance - 30m
Insulation class - II

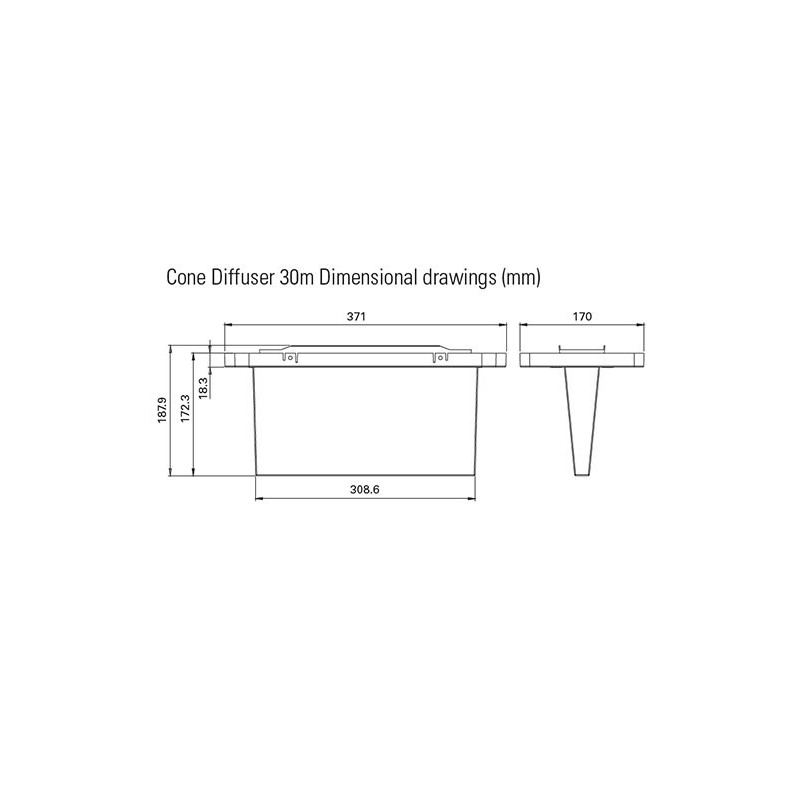

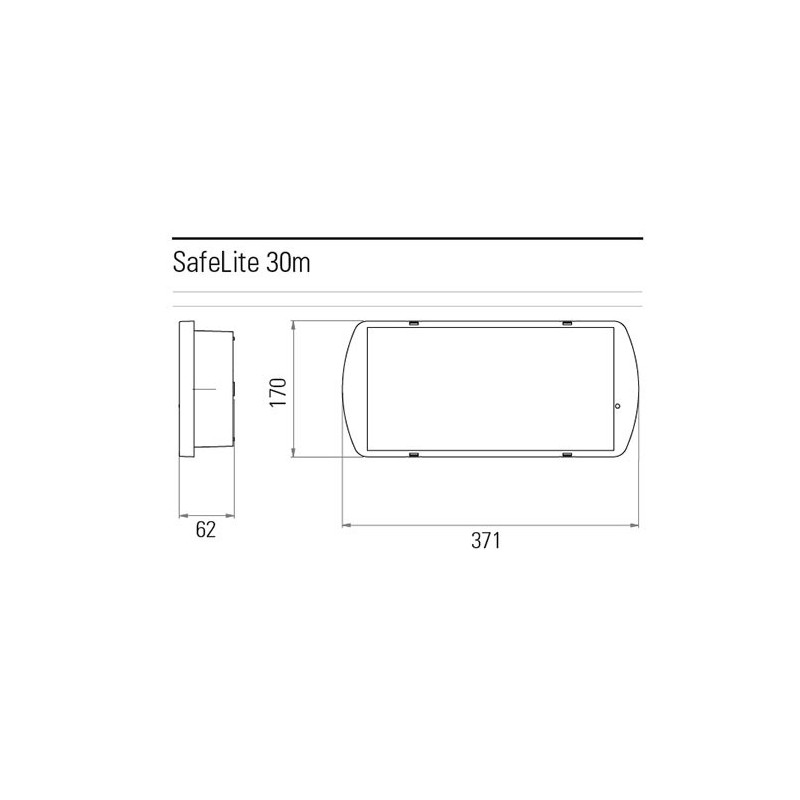

Dimensions in mm - 371 x 170 x 62mm
Compliant with EC standards All applications covered (Escape route, Anti-panic, Exit sign) One product throughout installation for same look and feel across the building Accessories available for a better integration in all buildings Easily installed as retro fit due to good performance ensuring scheme compliance 1h & 3h Duration Latest generation LEDs with high lumen/watt ratio
Function - Use either as an emergency luminaire or exit sign
Testing system - Stand Alone
Housing - Polycarbonate, Glow wire test : 850°C, RAL9003
Type of mounting - Surface
Options : Recessed box for concrete, recessed base for ceiling, double sided diffuser, set of 3 adhesive exit legends (L, R, D)
Terminals - up to 1x2,5 mm2 per connection
Degree of protection - IP42/IK04 or IP65/IK07
Operation Mode - Non Maintained or Maintained & Non Maintained mode selectable
Connection voltage - 230V -/+ 5% [220V-240V] 50-60Hz
Permissible ambient temperature: +5°C to +40°C
Battery Ni-Cd Light source - LED strip
Viewing distance - 30m
Insulation class - II
Dimensions in mm - 371 x 170 x 62mm
Code | Description | Price | Price+VAT | Unit | ||
---|---|---|---|---|---|---|
SL3CD |

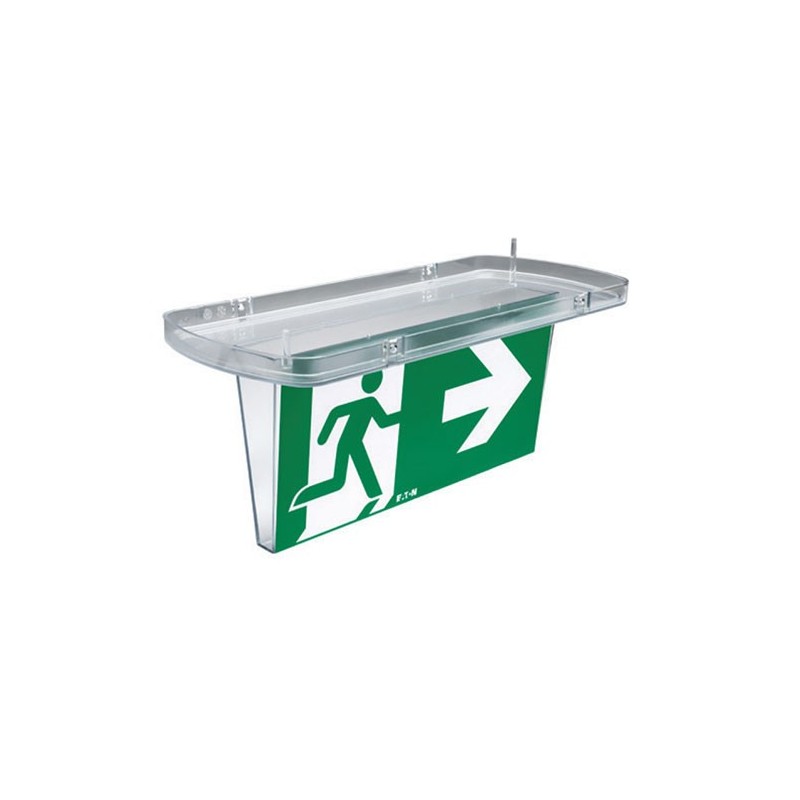

SafeLite kahepoolne kuppel SL30 Cone Diffuser Eaton |
€16.00
€12.00 |
-25%
€14.64 |
tk | ||
SL3MNM42E1C3A |
Turvavalgusti SafeLite SL30 M/NM IP42 150lm 1h 30m Eaton |
€34.00
€25.50 |
-25%
€31.11 |
tk | ||
SL3MNM65E3C3A |
Turvavalgusti SafeLite SL30 M/NM IP65 150lm 3h 30m Eaton |
€42.00
€31.50 |
-25%
€38.43 |
tk |
Code: SL3CD
SafeLite kahepoolne kuppel SL30 Cone Diffuser Eaton
-25%
Price:
€16.00
€12.00
Price+VAT: €14.64
Price+VAT: €14.64
Code: SL3MNM42E1C3A
Turvavalgusti SafeLite SL30 M/NM IP42 150lm 1h 30m Eaton
-25%
Price:
€34.00
€25.50
Price+VAT: €31.11
Price+VAT: €31.11
Code: SL3MNM65E3C3A
Turvavalgusti SafeLite SL30 M/NM IP65 150lm 3h 30m Eaton
-25%
Price:
€42.00
€31.50
Price+VAT: €38.43
Price+VAT: €38.43
