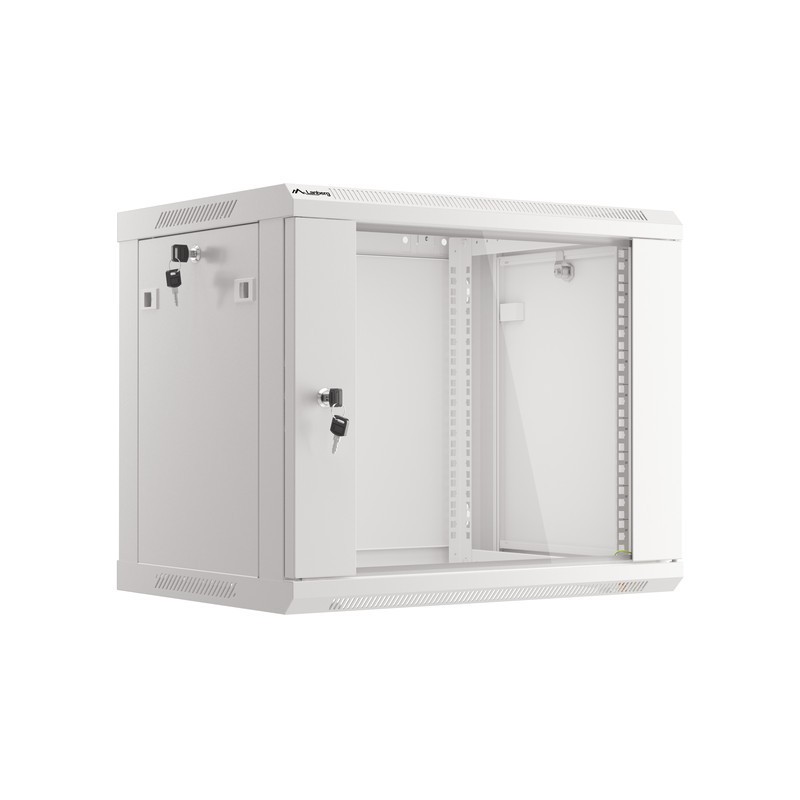

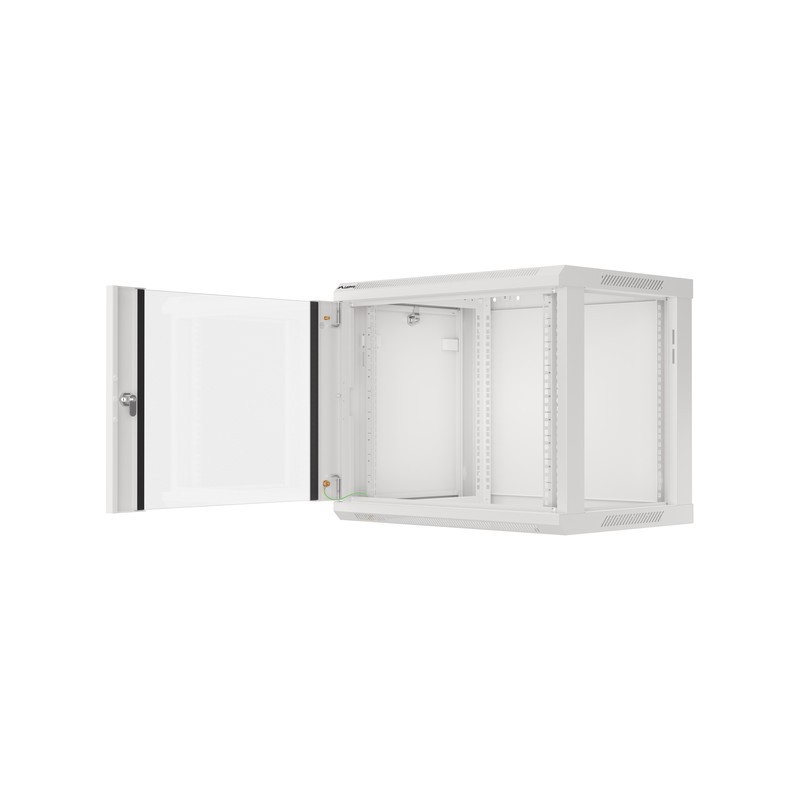

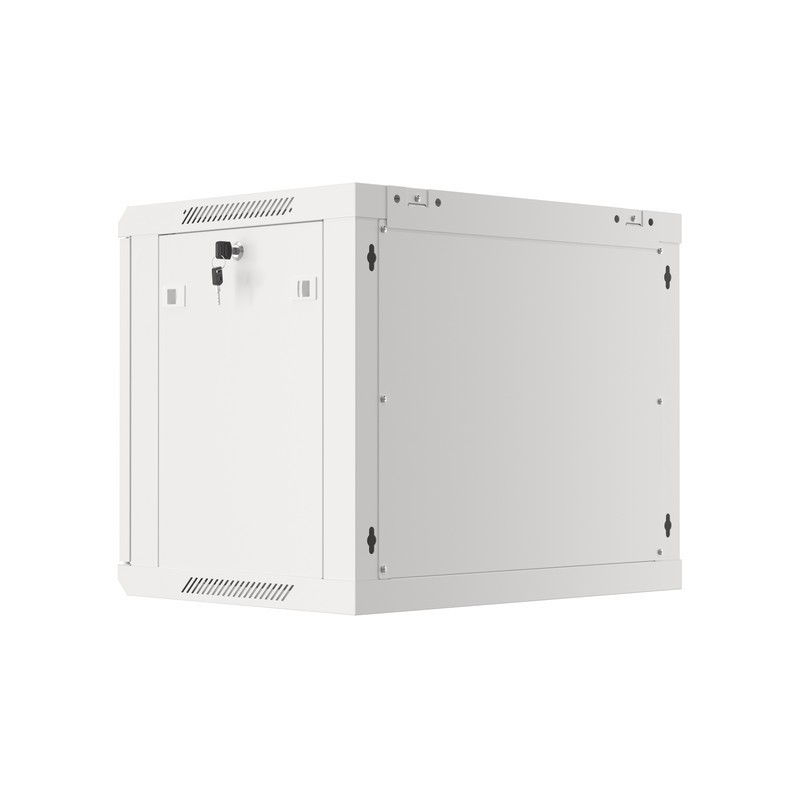

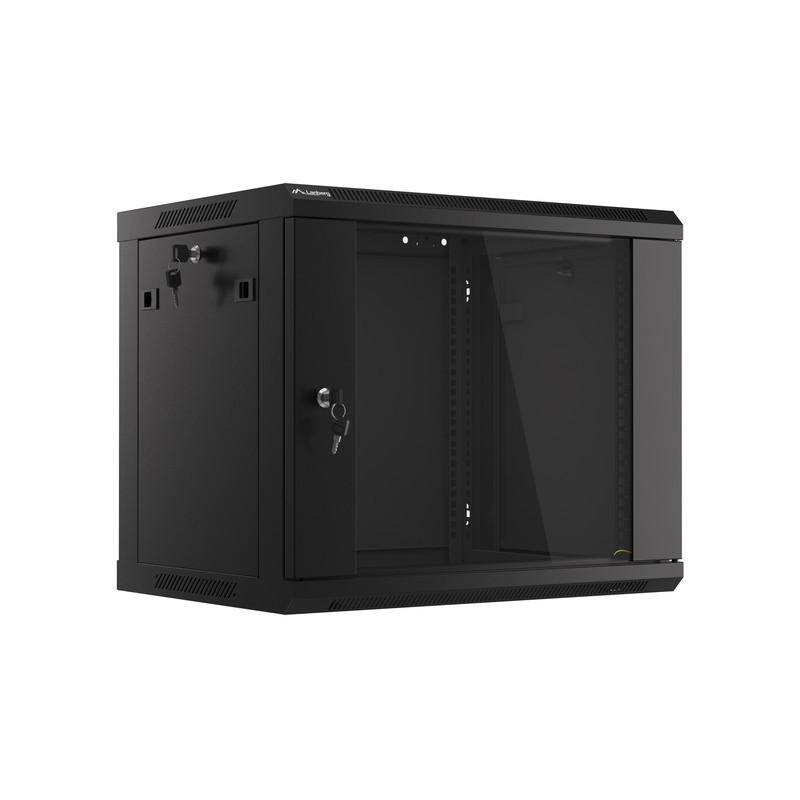

Seinakapp 19" 9U 600x450mm klaasuks

Cabinet type: Wall mount
Body color: Grey RAL7035 or Black RAL9004
Height: 9U
Cabinet dimensions (W x D x H): 600x450x512.35 mm
Height (top panel - bottom panel): 503.85mm
Height (top panel - ground including screws): 512.35 mm
Internal width spacing between rack rails: 450 mm
Width of the spacing between holes of rack rails: 475 mm
External width spacing between rack rails: 495 mm
Loading capacity: max. 60 KG
Degree of protection: IP20
Doors type: Temper glass
Standard: ANSI/EIA RS-310-D, IEC297-2, DIN41494; PART1 & PART7, ETSI
Material: High grade cold rolled steel, powder coated
Fan mounting slots: Yes, 120mm, 110V or 230V
Glass thickness: 5.0 mm
Sheet thickness: vertical mounting rails - 1.50 mm; mounting profile - 1.50 mm; others - 1.00 ~ 1.20 mm; top & bottom & side panel - 1.00 mm
Cable entry panel: Top, Bottom

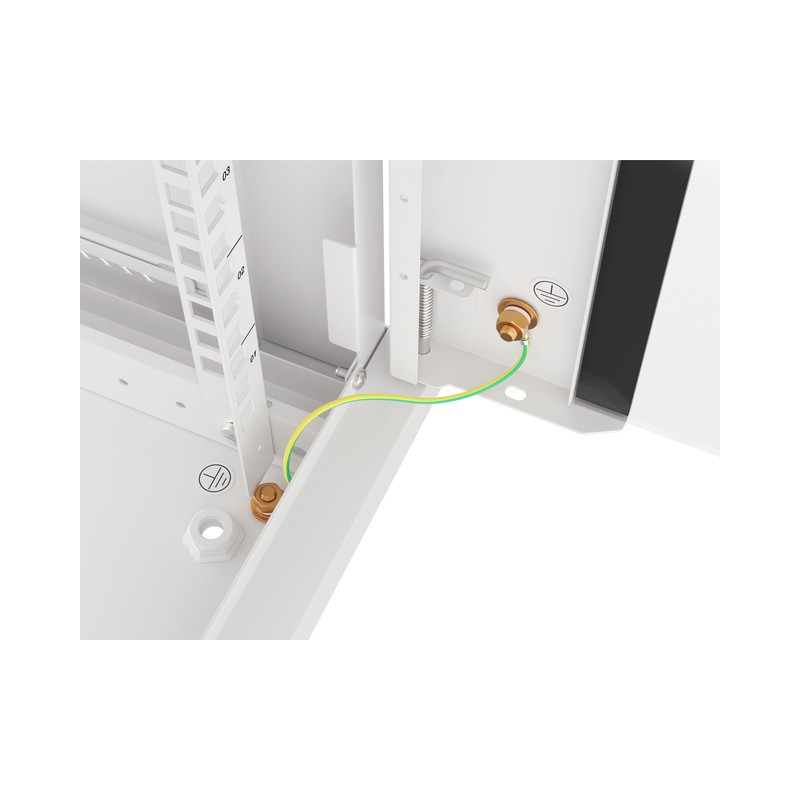

Included: Accessory bag, earth kit (pins, grounding cable, nuts and mounting washers), front door lock, two side panels with locks, 12 cage nuts M6.

Code	Description		Price	Price+VAT	Unit
WF01-6409-10B	Seinakapp 19" 9U 600x450mm klaasuks must Lanberg		€116.66 €110.83	-5% €137.43	tk
WF01-6409-10S	Seinakapp 19" 9U 600x450mm klaasuks hall Lanberg		€116.66 €110.83	-5% €137.43	tk
