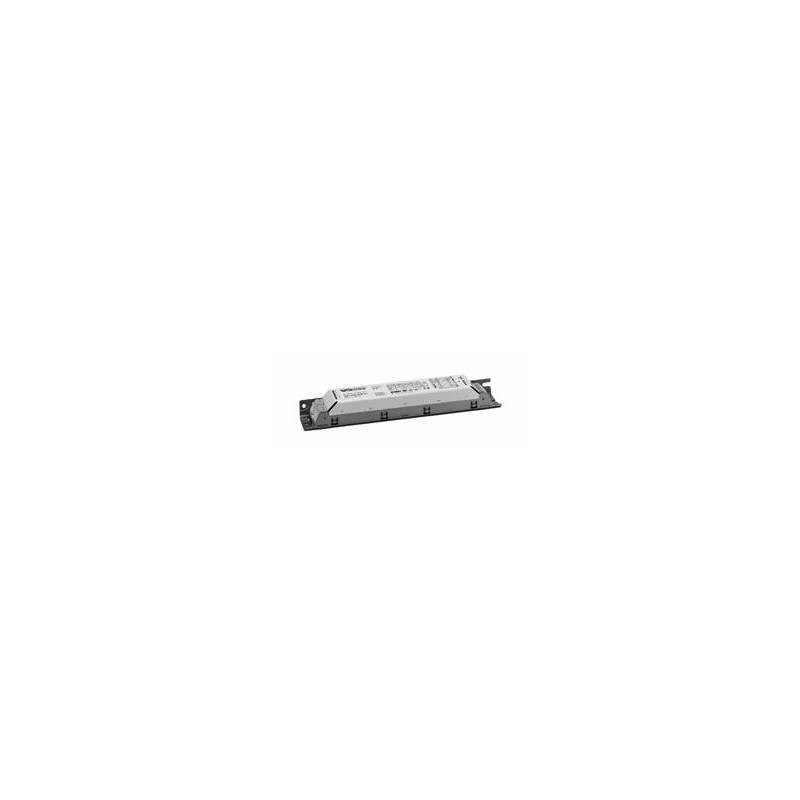

ELXc M8

Casing: metal, white lacquered
Power factor: > 0.98
Ambient temperature ta: -20 to +55°C
DC voltage operation: for operation: 176-254V, for ignition: 198-254V.
Push-in terminals: 0.5-1.0 mm². IDC- terminals for automatic luminaire wiring
Suitable for lighting systems with high switching frequency (> 5/day).
Lamp type: T8(T26)
warm start
Main voltage AC [V]: 220-240V
Frequency [Hz]: 50
Protection class: Class of protection I

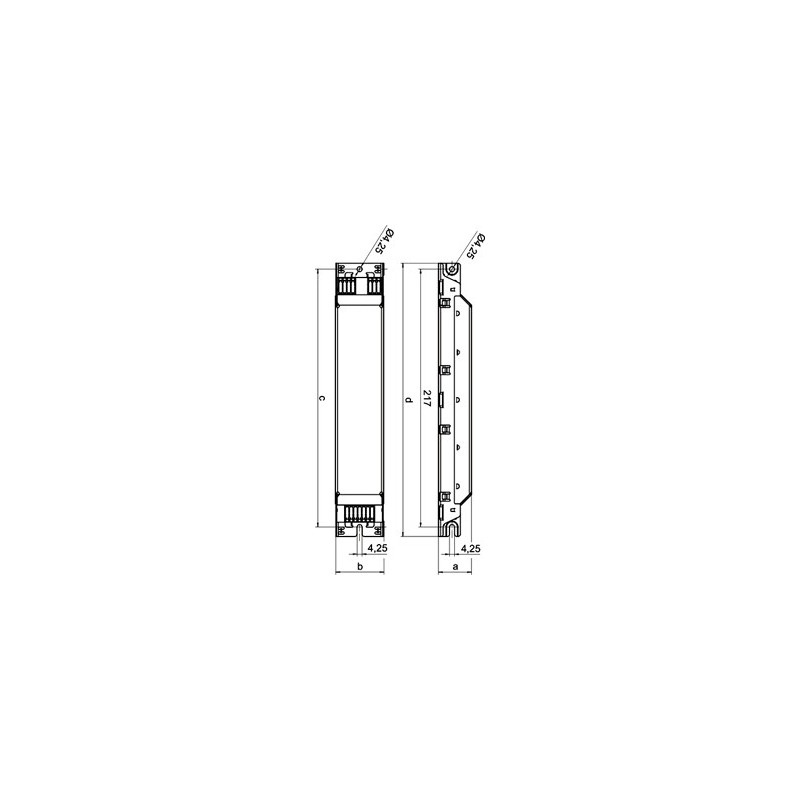

Width B [mm]: 40 Height [mm]: 28,5 Length [mm]: 230 Fixing centre [mm]: 220
Max. ambient temperature [°C]: 55
Unit: 10 pcs.
EN 61347 (Safety) EN 60929 (Performance) EN 61000-3-2 (Mains harmonics) EN 55015 (RFI-suppression) EN 61547 (EMC immunity to interference)
