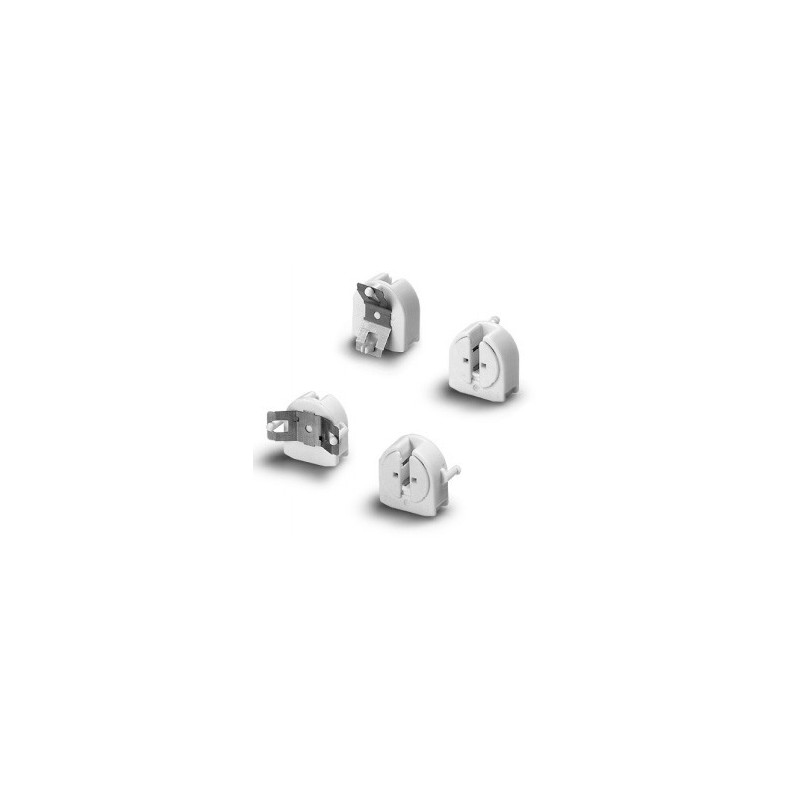

T5-G5 built-in

Casing: PBT GF, white, rotor: PBT GF, white
T140, nominal rating: 2/500
Push-in twin terminals: 0.5–1 mm²
Max. permitted temperature Tm on the rear side of the lampholder: 110 °C
G5 built-in lampholders Rear split pins for wall thickness up to 1.2 mm
Weight: 2.9/3.3 g
Type: 09405/09406 and 09415/09416
Ref. No.: 505733
Ref. No.: 505734 with spring adjustment
Ref. No.: 505735
Ref. No.: 505736 with spring adjustment
