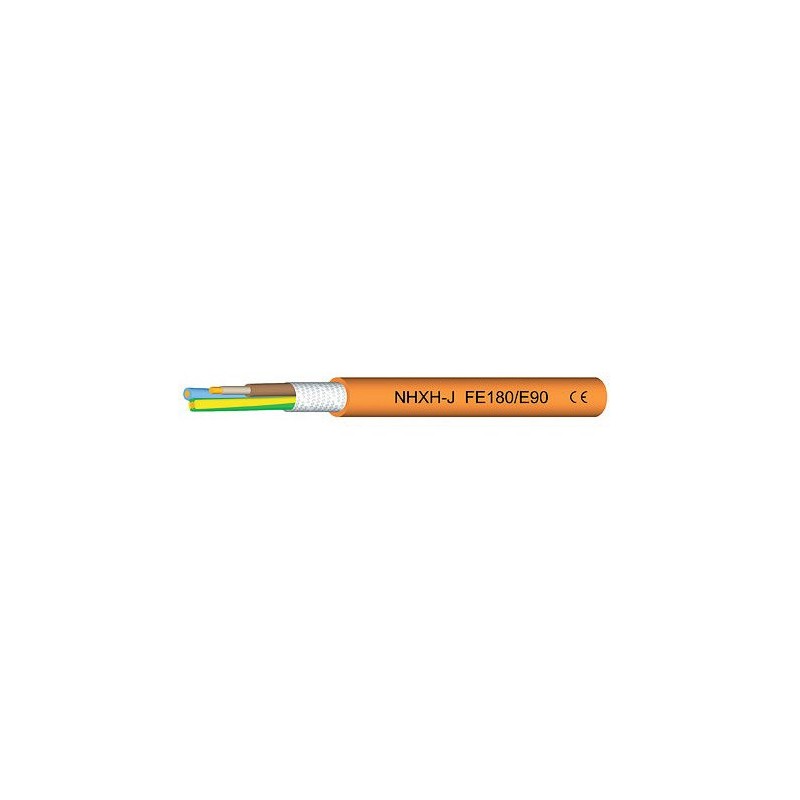

(N)HXH-J (O) FE180/E90 0,6/1 kV tulekindel kaabel

FIRE RESISTANT HALOGEN FREE POWER CABLES
APPLICATIONS
(N)HXH FE180 PH90/E90 0.6/1 kV and (N)HXH-J FE180 PH90/E90 0.6/1 kV fire resistant power cables, insulated and sheathed with halogen free compounds, are intended for power supply to fire protection equipment which is to operate in fire conditions (e.g. water pumps in fire extinguishing systems, smoke removing fans).
Halogen free cables shall be applied in locations where, in case of fire, higher safety for human beings and expensive electronic equipment is required.
Functions of the cables are maintained – power is supplied to equipment which must operate in fire conditions and during fire fighting. The cables are flame retardant and their smoke emission is low, emitted fumes are non toxic and non corrosive.
The cables are certified by Scientific and Research Development Centre for Fire Protection (Centrum Naukowo- Badawcze Ochrony Przeciwpożarowej) at Józefów.
The cables are suitable for indoor and outdoor installations.

CONSTRUCTION
conductor – bare copper, solid or stranded, according to PN-EN 60228, EN 60228, RE - single wire round conductor; RM - multiwire round conductor
insulation – double insulation ,cross-linked silicone rubber - colours in accordance with PN-HD 308,
filler – filler made of halogen free compound,
inner sheath – inner sheath made of halogen free compound,
sheath – orange, cable sheath made of halogen free compound according to HD 604 S1 and VDE 0276-604 –HM4, (oxygen index bigger than 35%).
