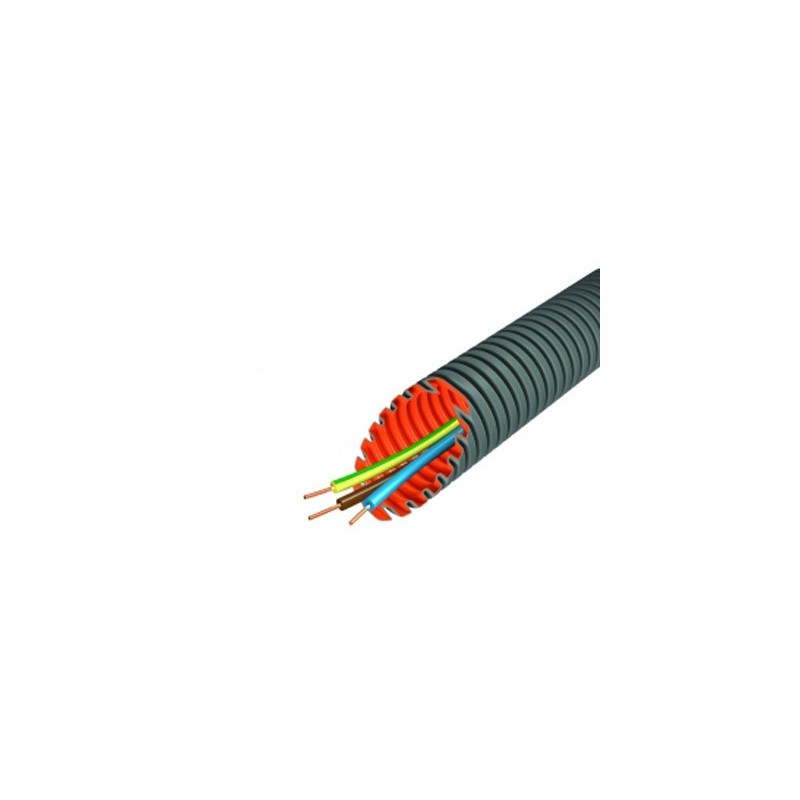

FM-0H-SMART Dca kõrikaabel 750N

Installation on plastering

In floors

In dry concrete

In keramzite concrete

Advantages:

Time saving (no pulling of cables into conduits required)

Cost saving (less man-hours required for the work)

Halogen-free material for conduits and cables

The gliding inner layer allows quick and easy addition of wires or cables also after installation

Due to better heat exchange, more load can be applied to the wires

Technical information:

Wires: 3x1.5mm2; 4x1.5mm2; 3x2.5mm2; 5x1.5mm2; 5x2.5 mm2, etc.

Cables: 3x1.5mm2; 3x2.5mm2; 5x1.5mm2; 5x2.5 mm2;

Easy identification of wires due to the colour coding according to the European standard

Temperature resistance of the conduit: from -25°C to +105°C

Available sizes: 16, 20, 25, 32, 40, 50 mm

Available in rolls of 100m

SMART PRE-WIRED are conduits with pre wired power or telecommunication cables or wires. The installation of the conduits is much quicker and simpler because cables are already pre wired at the factory and do not need to be pulled on-site. This reduces the total costs of installation. Due to the halogen-free material, SMART PRE-WIRED are suitable for installations in public buildings: schools, kindergartens, hospitals, hotels, theatres, cinemas, museums, stadiums, arenas, shopping-centres, airports, railway terminals, office buildings. Due to the fire-safety requirements for protection against smoke, halogen-free conduits are also recommended for use in multi-apartment buildings. The SMART conduits are manufactured in compliance with standards EN 61386-22; EN 50267-2-2; EN 61034-2; EN 60332-1-2, and EN 60332-1-3.
