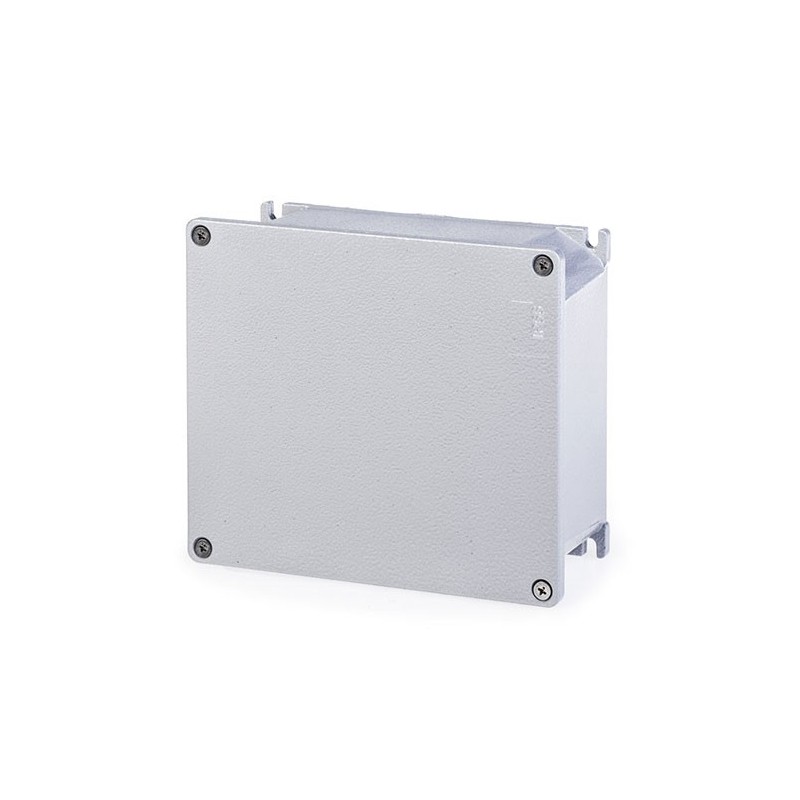

Alubox

Enclosures and covers die-cast in aluminium alloy UNI 7369/2nd, supplied with blank walls and cover on, with screws for attaching the cover and for earthing. Protection degree of assembled items: IP66. The outside of the enclosure is varnished giving an attractive appearance, while the inside has been left rough to guarantee the electrical continuity. Perforated zinc coated steel mounting plates can be attached to the enclosures, they are used for attaching equipment, terminals, etc..

TECHNICAL DATA SHEET
Protection degree :IP66/IP67
Operating temperature :according to the reference standard -25°C +60°C
Maximum operating temperature :(short period) -40°C +90°C
Material :Aluminium alloy
Impact resistance: IK degree at 20°C IK08
Cable inlets :Blank sides
DIN rail fixing: Yes
Colour: Grey RAL 9006 with metallic pigments

Code	Description	Price	Price+VAT	Unit
653.00	Alubox 100x100x59 IP66 Scame	€10.30	€12.57	tk
653.01	Alubox 140x115x60 IP66 Scame	€15.00	€18.30	tk
653.011	Alubox põhjaplaat 140x115 harukarbile Scame	€4.00	€4.88	tk
653.012	Alubox põhjaplaat 166x142 harukarbile SCAME	€4.50	€5.49	tk
653.013	Alubox põhjaplaat 192x168 harukarbile SCAME	€5.50	€6.71	tk
653.02	Alubox harukarp IP66 166x142x64 SCAME	€18.30	€22.33	tk
653.03	Alubox harukarp IP66 192x168x80 SCAME	€27.00	€32.94	tk
