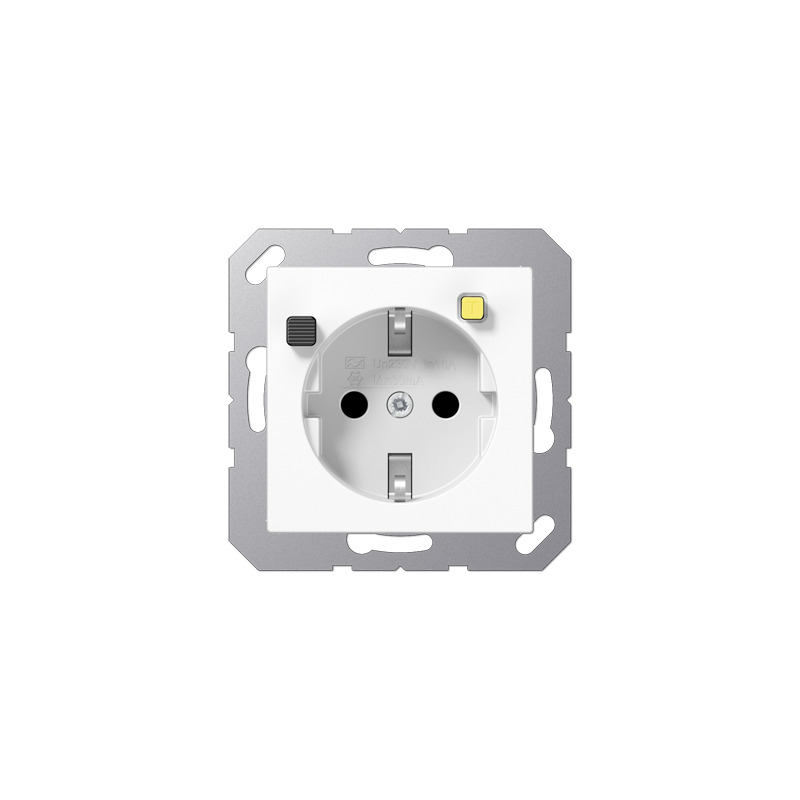

A series outlet with RCD 30mA

SCHUKO® socket with RCD (residual current device) 16 A / 250 V ~

according to DIN EN 61008-1 (VDE 0664-10) and DIN EN 61008-2-1 (VDE 0664-11)

Rated residual current: 30 mA

with enhanced contact protection (shutter)

Screwless terminals for wires up to 2.5 mm2

not suitable for installation in surface caps

The SCHUKO socket with RCD is suitable to replace sockets in older installations.

Sockets that are connected to the RCD-protected output terminals (L’ N’) are likewise RCD-protected. The electrical installation up to the SCHUKO® socket with RCD is not protected. The socket can also be switched on and off manually, using the built-in switch.
