eNet vastuvõtja-universaaldimmer harutoosi

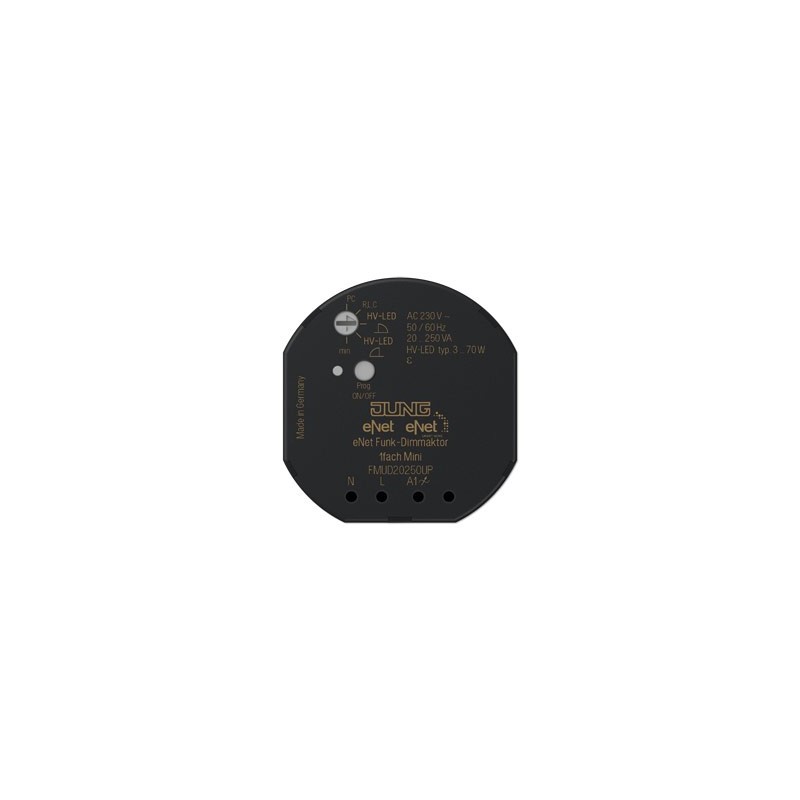

eNet radio dimming actuator 1-gang mini
New system feature: Fully-encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Intended use
Switching and dimming of incandescent lamps, HV halogen lamps, electronic transformers for halogen or LED lamps, dimmable inductive transformers for halogen or LED lamps, HV LED or compact fluorescent lamps
Operation with suitable eNet radio transmitters
Installation in flush box according to DIN 49073 in combination with a suitable cover
Mounting in surface-mounted housing or mounting adapter (ref.-no. FM-EBG) for false ceilings
Product characteristics
Switch-on via bulb-preserving soft start
Switch-on brightness can be saved permanently
Minimum brightness can be saved permanently
Scene operation possible
Status indication with LED
Status feedback to radio transmitter
Switchable with Prog button
Electronic short-circuit protection with permanent switch-off after 7 seconds at the latest
Electronic over-temperature protection
Automatic or manual setting of the dimming principle suitable for the load
Power extension possible by means of power boosters (ref.-no. ULZ 1755 REG)
Optional accessory: compensation module LED, ref.-no.: KM LED 230 U
Can be set with eNet server:
Maximum brightness
Dimming speed
Switch-on delay / switch-off delay
Dim up/dim down ramp
Switch-off warning
Operating locks
Continuous on, Continuous off
Hotel function
Run-on time
Supplementary functions with eNet server:
Fully-encrypted radio transmission (AES-CCM) from eNet Server software version 2.0
Update of the device software
Repeater function
Reading of error memory
Volume discounts
Quantity | Discount |
---|---|
10 | 10% |
Code | Description | Price | Price+VAT | Unit | ||
---|---|---|---|---|---|---|
FMUD20250UP |
eNet vastuvõtja-universaaldimmer harutoosi 20-250W(hõõgl), 7-70W 230V LED JUNG | €139.35 | €170.01 | tk |
Code: FMUD20250UP
eNet vastuvõtja-universaaldimmer harutoosi 20-250W(hõõgl), 7-70W 230V LED JUNG
Price:
€139.35
Price+VAT: €170.01
