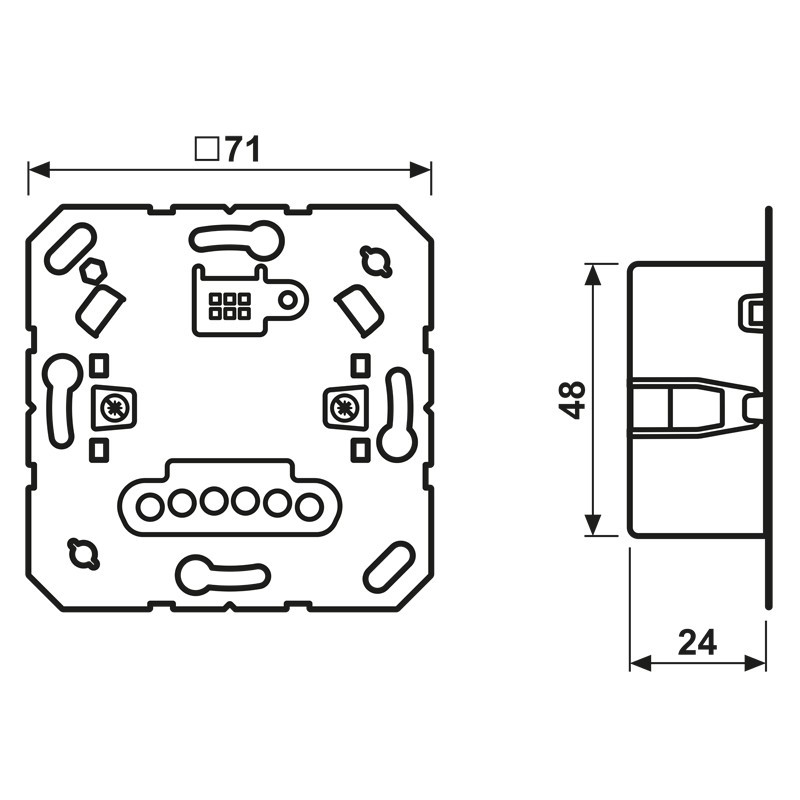

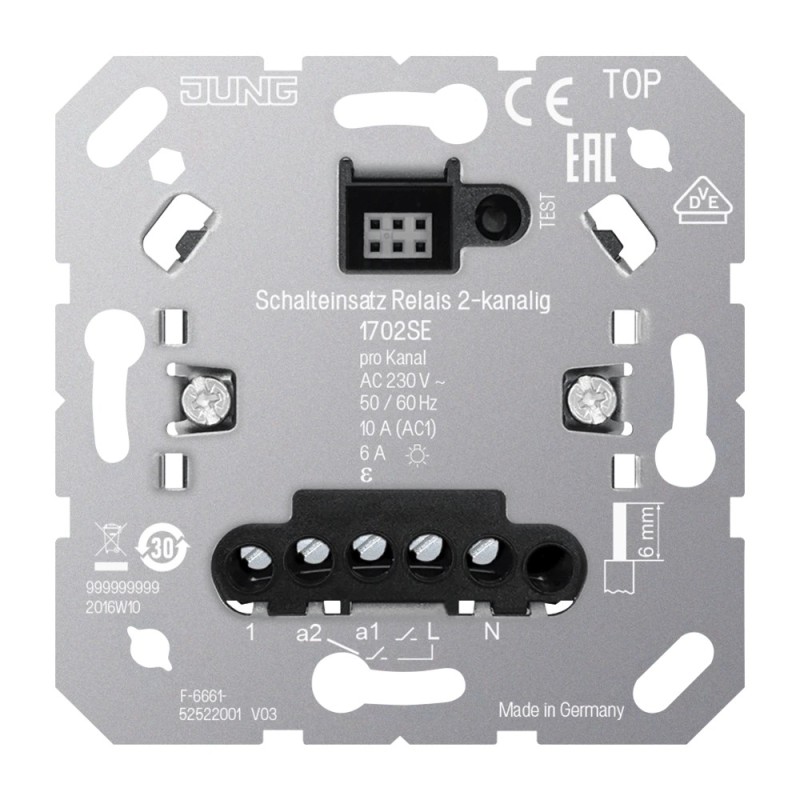

1702 SE Relay switch insert, 2-channel

Intended use:
Switching of lighting and motors
Operation with suitable cover
Installation in flush box with dimensions according to DIN 49073

Product characteristics:
Connection of satellite units possible
Test operation for functional test

In combination with LB Management push-button 2-gang:
Two independent outputs
Time function for output a2 adjustable

In combination with LB Management push-button 1-gang (ref.-no. ..1700.., ..1701..), LB Management timer display, LB Management motion detector: Output a2 switches depending on output a1 e.g. to switch on ventilation, depending on the lighting, and switch it off with a delay. Switch-on delay of output a2 adjustable Switch-off delay of output a2 adjustable

In combination with satellite insert 3-wire and LB Management push-button 2-gang: Two independent outputs

In combination with satellite insert 2-wire, rotary satellite insert or push-button: Output a2 switches depending on output a1 e.g. to switch on ventilation, depending on the lighting, and switch it off with a delay.
