Led Driver 7W ConstantCurrent Triac dimmable

Input Voltage 220 – 240V
Frequency 50 – 60 Hz
Power Factor 0.92
Current Ripple ± 5%
Constant Current LED Driver, Triac dimmable, Leading & Trailing edge
Output Current adjustable via DIP-SWITCH
180mA, 200mA, 300mA, 350mA
up to 80% Efficiency
Lifetime 50.000h
IP grade IP20
Insulation Class II

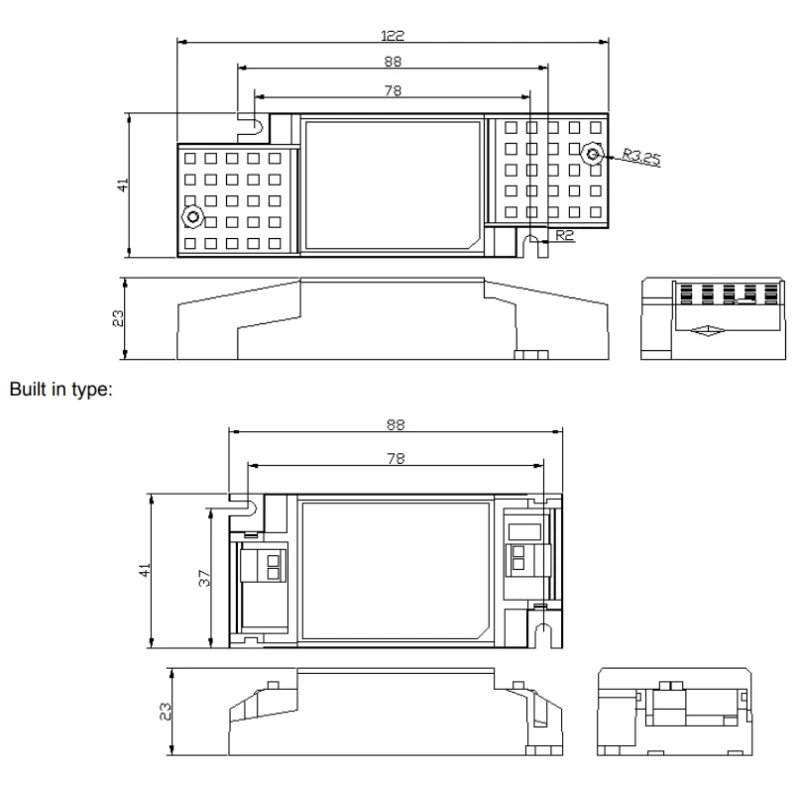

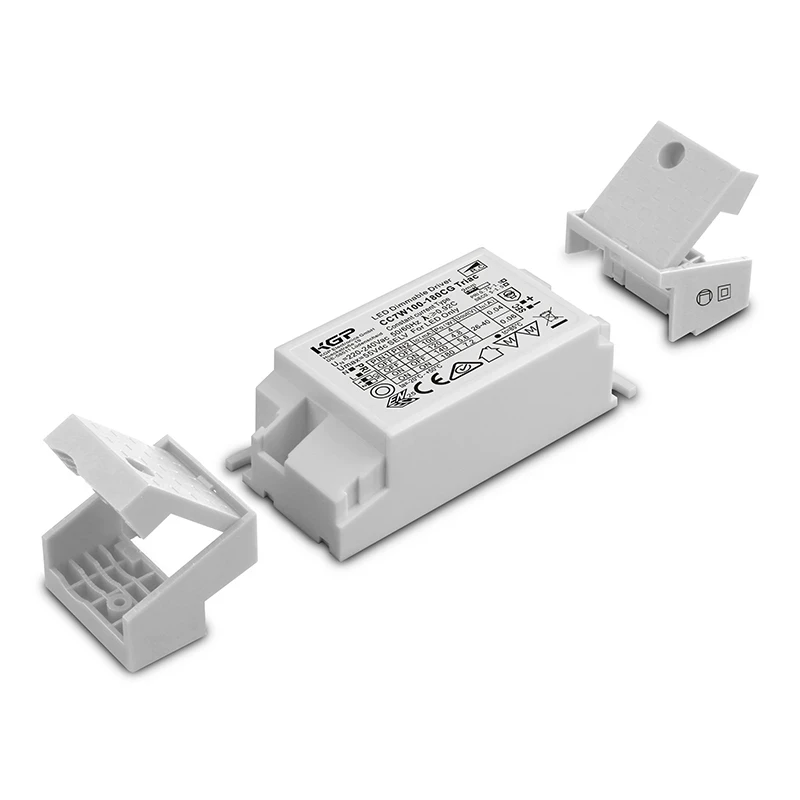

Housing with removable cord grip - 125 x 41 x 23mm
Overload Protection, Short Circuit Protection, Open Circuit Protection, Overheat Protection
SELV

Product description

Independent dimmable LED Driver

Constant current LED Driver

Dimmable via leading edge and trailing edge phase dimmers

Dimmable via 1 ... 10 V

Output dimmed analogue (current amplitude)

Dimming range typ. 10 to 100 % (depending on dimmer)

For luminaires of protection class I and protection class II

For luminaires with M and MM as per EN 60598, VDE 0710 and VDE 0711

Temperature protection as per EN 61347-2-13 C5e

SELV

Output current 180, 350 or 500 mA

Output power 10 W

Nominal life-time up to 50,000 h

5-year guarantee

Housing properties

Casing: polycarbonate, white

Type of protection IP20

Screw terminal

Functions

Overload protection

Short-circuit protection

No-load protection

No output current overshoot at mains on/off

Code	Description		Price	Price+VAT	Unit
CC7W180-350CG_TRIAC	Led Driver Triac PhaseCut dimm 7W 180/200/300/350mA 12-20V ENEC Dipswitch-seadistatav KGP		€10.00	€12.20	tk

Code: CC7W180-350CG_TRIAC

Led Driver Triac PhaseCut dimm 7W 180/200/300/350mA 12-20V ENEC Dipswitch-seadistatav KGP

Price: €10.00
Price+VAT: €12.20
