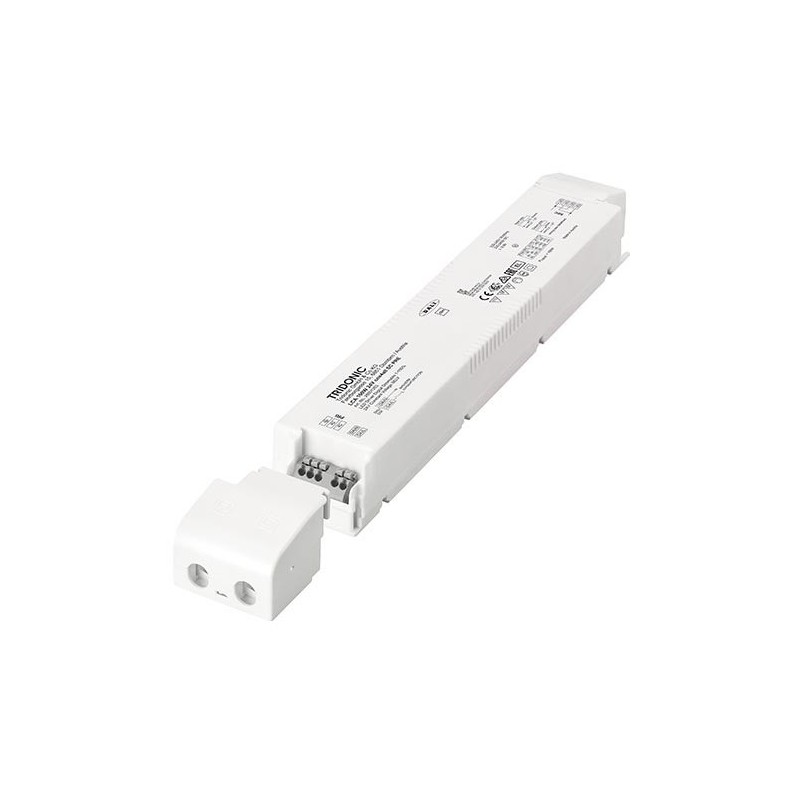

Driver LC 24V bDW SC PRE2 Casambi / Bluetooth

Product description

Dimmable 24 V constant voltage LED Driver for flexible constant voltage strips

Can bei either used built-in or independent with clip-on strain-relief (see data sheet chapter: 1. Standards)

basicDIM Wireless enables different dimming options

Forms automatically a wireless communication network with up to 250 nodes

Dimming range 1 to 100 %

No additional external dimmer is needed

Suitable for emergency escape lighting systems acc. to EN 50172

Nominal life-time up to 50,000 h

Technical details

24 V, 100 W

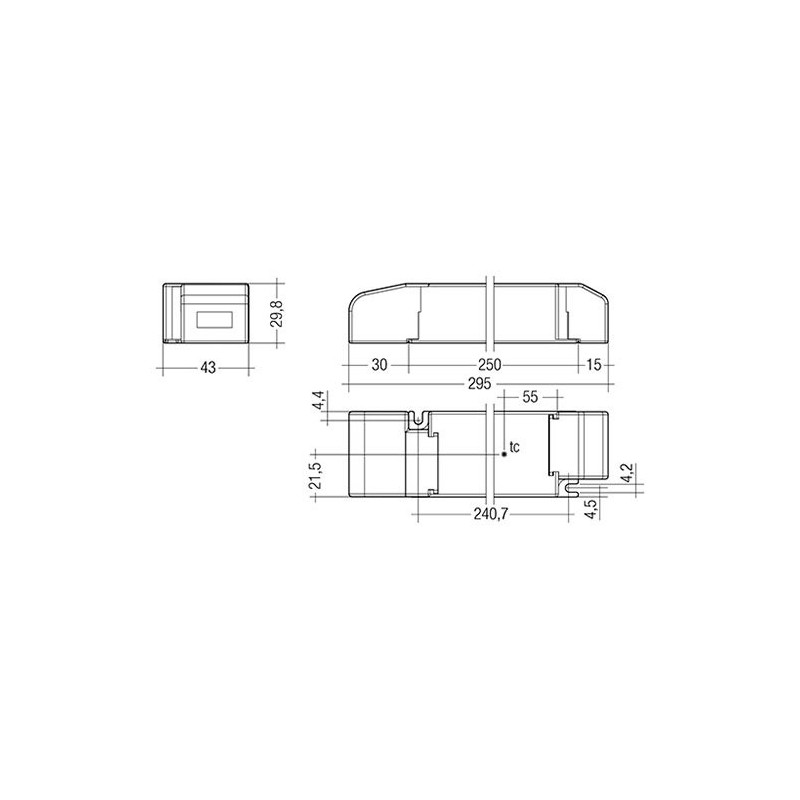

Small design (295 x 43 x 30 mm) with stretched-compact strain relief

Small cross section

Push terminals for simple wiring

Output terminals (+/–) equipped twice for more flexibility in the application

Interfaces

basicDIM Wireless

Fails

28002417 tooteleht

Code	Description		Price	Price+VAT	Unit
28002417	Led Driver LC 100W 24V bDW SC PRE2 bluetooth dimmable (Casambi) Tridonic		€106.00	€129.32	tk

Code: 28002417

Led Driver LC 100W 24V bDW SC PRE2 bluetooth dimmable (Casambi) Tridonic

Price: €106.00
Price+VAT: €129.32
