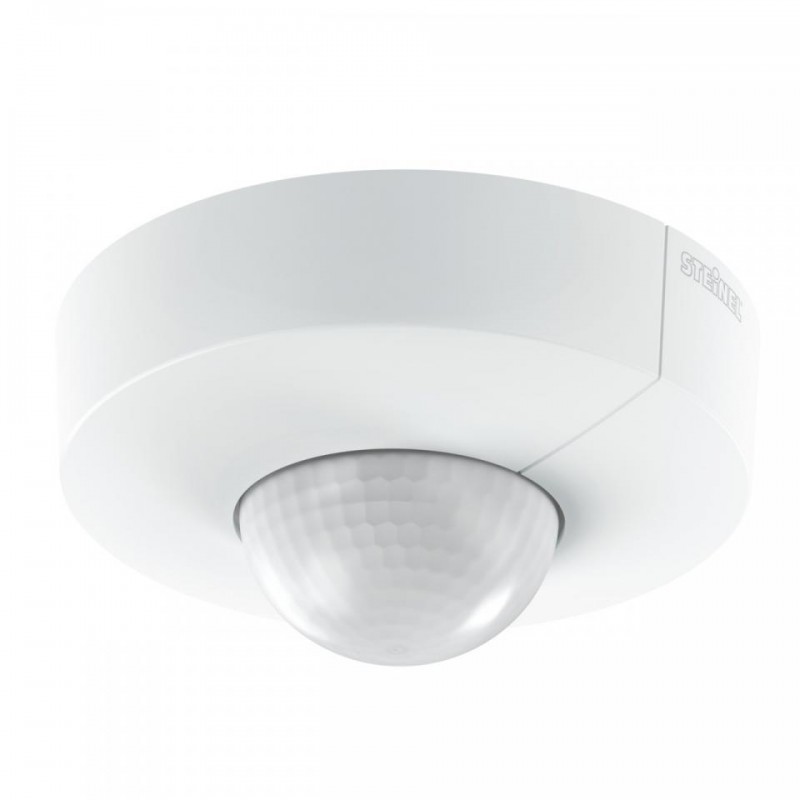

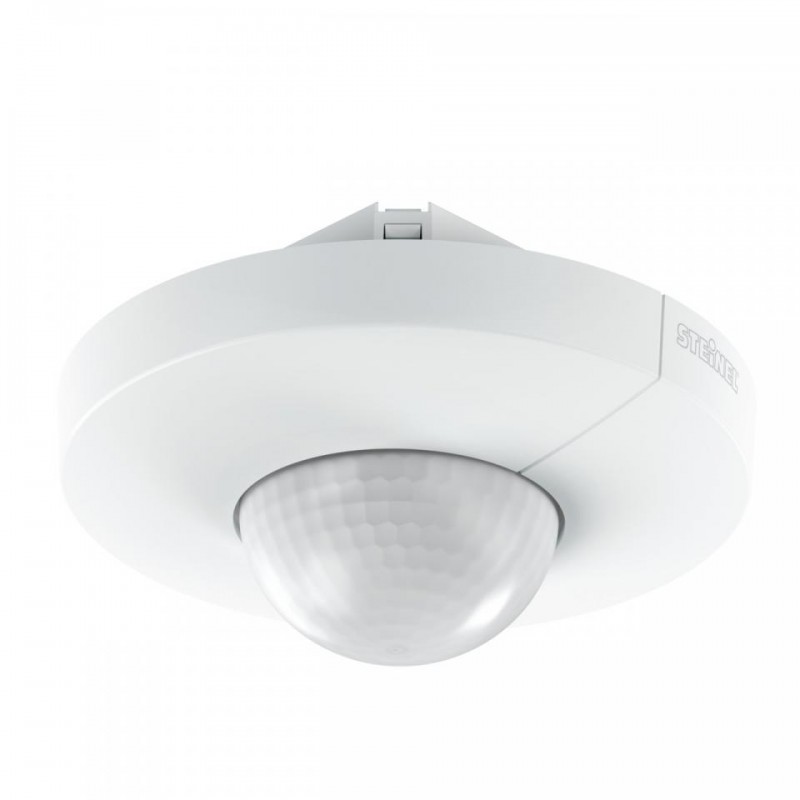

Type: Motion and Presence Detector
Dimensions (Ø x H):126 x 65 mm
Mains power supply: 220 – 240 V / 50 – 60 Hz
Sensor Technology: passive infrared
Application, place: Indoors
Installation: Concealed wiring
Mounting height: 2,50 – 4,00 m optimum 2,8m
Detection angle: 360 °
Angle of aperture: 180 °
Sneak-by guard: Yes
Capability of masking out individual segments: Yes
Reach, radial: Ø 8 m (50 m²)
Reach, tangential: Ø 40 m (1257 m²)
Twilight setting TEACH: Yes
Twilight setting: 2 – 1000 lx
Time setting: 5 s – 15 Min.
Output: 2000 W
Functions: Normal / test mode, Manual ON / ON-OFF
Settings via Remote control,Potentiometers,Smart Remote
Interconnection: Yes
IP-rating: IP20
Ambient temperature: -20 – 50 °C
