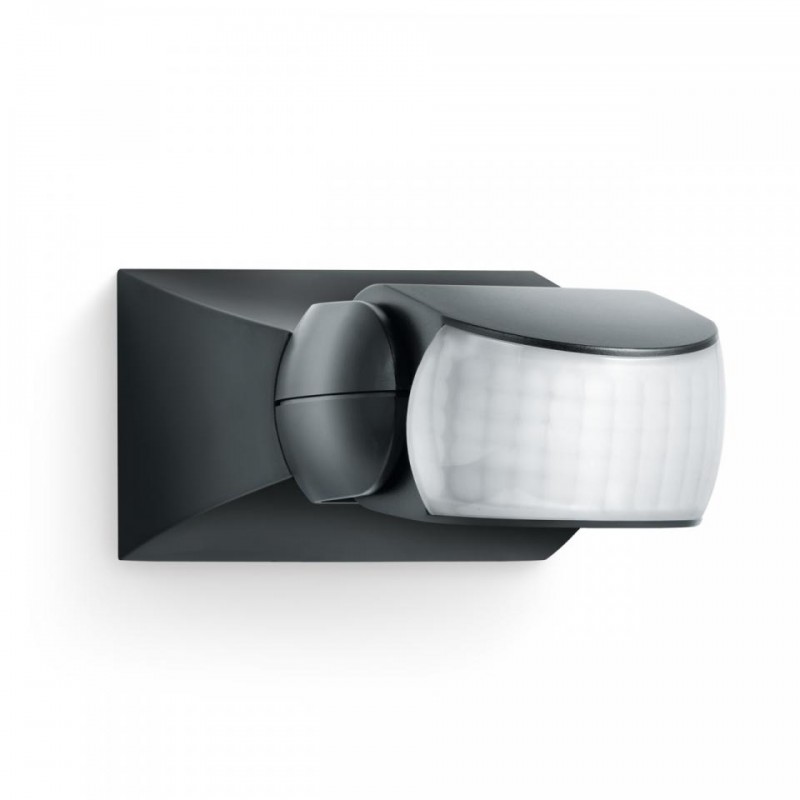

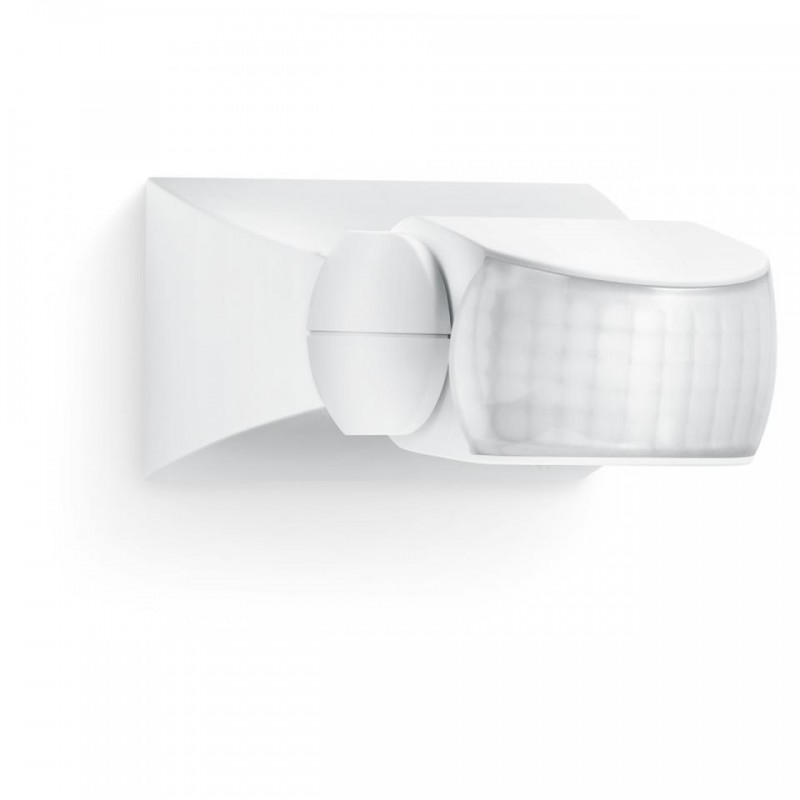

IS 1 - Targeted detection and attractive price. Infrared motion detector IS 1, for indoors and out, ideal for targeted coverage of small areas, 120° angle of coverage, reach up to 10 m, selectable time and twilight threshold, sensor turns through 30° and tilts through 180° for exact adjustment of the detection zone.

Mounting height: 1,80 – 3,00m
Optimum mounting height: 2m
Detection angle: 120°
Angle of aperture: 40°
Capability of masking out individual segments: Yes
Reach, radial: r = 3 m (9 m²)
Reach, tangential: r = 10 m (105 m²)
Twilight setting: 2 – 2000 lx
Time setting: 8 s – 35 Min.
Output: 500 W
IP-rating: IP54
Ambient temperature: -20 – 50 °C
