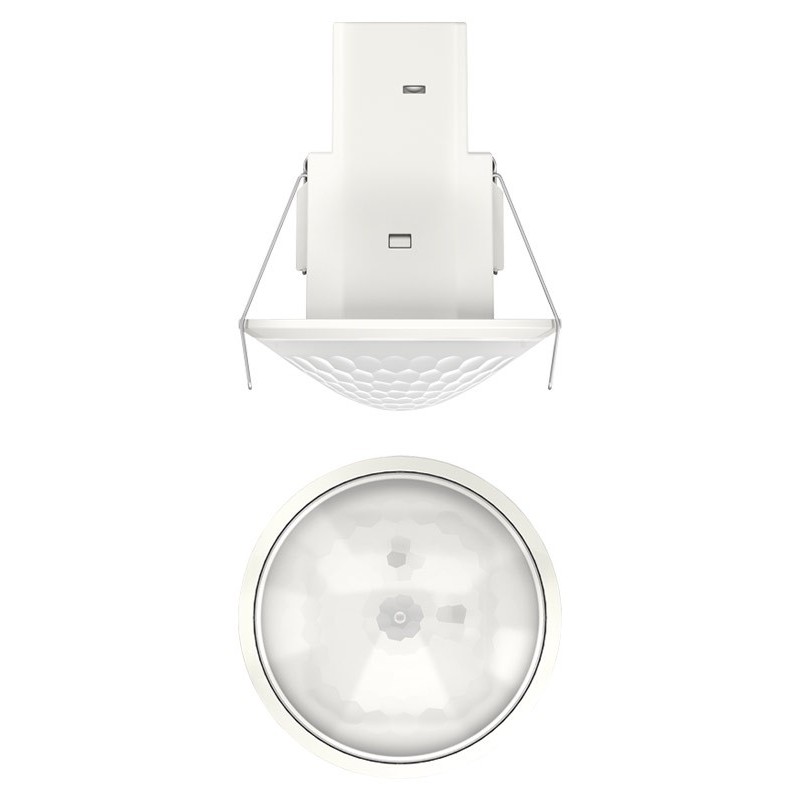

theMova S360-100 DE Motion detector 360º ø8m

Operating voltage 230 V AC
Frequency 50 Hz
Installation height 2 – 4 m
Installation type Ceiling installation
Colour White
Switching output Light
Stand-by consumption ~0.5 W
Light measurement Mixed light measurement
Setting range brightness 30 – 3000 lx
Light switch-off delay  10 s - 60 min
Type of contact light Relay 230 V/10 A µ-contact
Lamps Incandescent/halogen lamps, fluorescent lamps, Energy saving lamps, LEDs
Incandescent/halogen lamp load 2300 W
Compact and flourescent lamps 1150 VA (cos φ = 0,5)
Inrush current max. 400 A / 200 µs
LED lamp < 2 W 25 W
LED lamp 2-8 W 250 W
LED lamp > 8 W 250 W
Type of connection Spring terminals
Detection range 50 m² (ø 8 m | 360°)
Ambient temperature -15°C ... 50°C
Type of protection IP 54 (when fitted)
