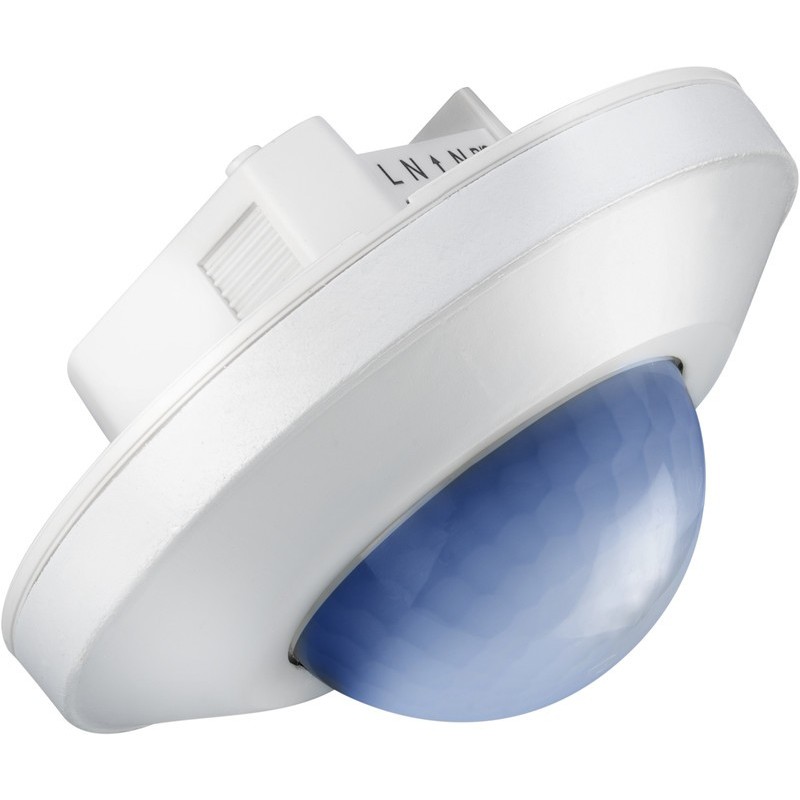

Presence detector TALIS II P 360-24-1I 360° Ø24m IP20

Light level approx. 10 Lux - infinite Lux; Lux Memory
Mounting Options Flush Mounting; Surface Mounting (with accessories only); Ceiling (with accessories only)
Communication Method IR interface Remote operation
Supply Voltage AC 230 V ± 10% 50-60 Hz
Load incandescent bulb max. 2200 W
Load halogen lamp max. 2200 W (AC); max. 1000 W (LV) conventional
Load LED lamp max. 600W
Power consumption (Standby) <1 VA
Parallel switching Max. 10 sensors
Angle of detection 360°
Range small movements Ø 4 m
Range walking towards Ø 6 m
Range walking across Ø 24 m
Installation height 2,5 m
Time setting (1CH) approx. 30 sec. - 30 min.
Operating mode Learning Function; Test Mode
Temperature (operation) -20°C..45°C
Protection class II
Protection type IP20, IP54 with Sealing
