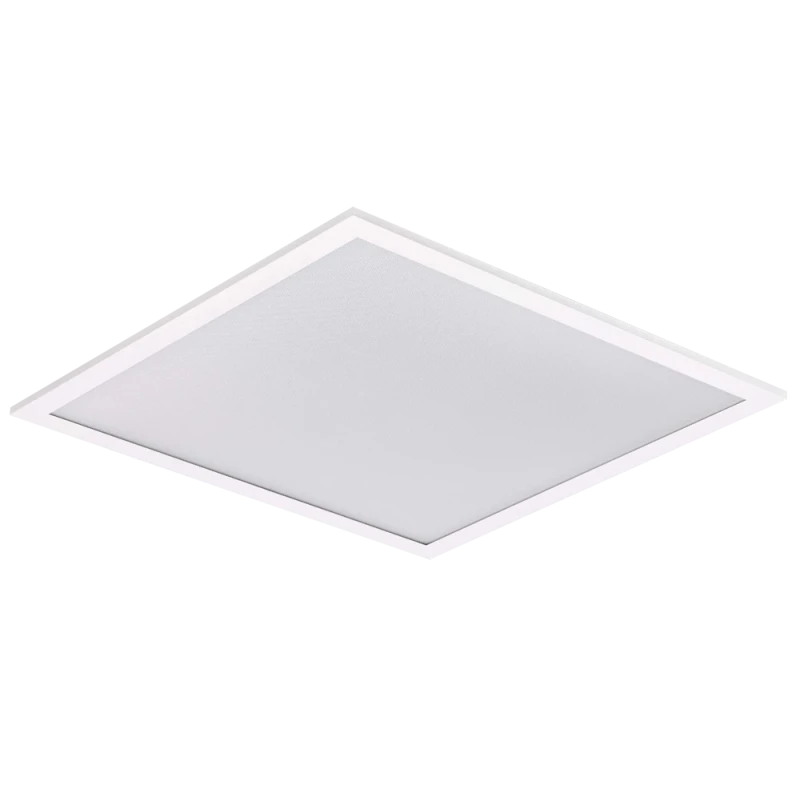

The Fortimo LED Panels are designed to light up spaces in office and commercial buildings. With their ultra-slim design they can be installed easily. The Fortimo panels offer an excellent performance (139 Lm/W at 4000K CRI80), reliability (50,000 hours) and quality of light. It’s designed to meet the standards for office lighting (UGR possible). A wide range of choices in different sizes (60x60; 62x62; 30x120; 60x120) and color temperatures can be combined with a wide choice of Xitanium drivers to perfectly match your application.
Key features and benefits
• Efficacy up to 139 lm/W on module level
• Ultra-slim LED module
• Excellent light uniformity
• Meeting office standards for low UGR
• Good quality of light (CRI >80)

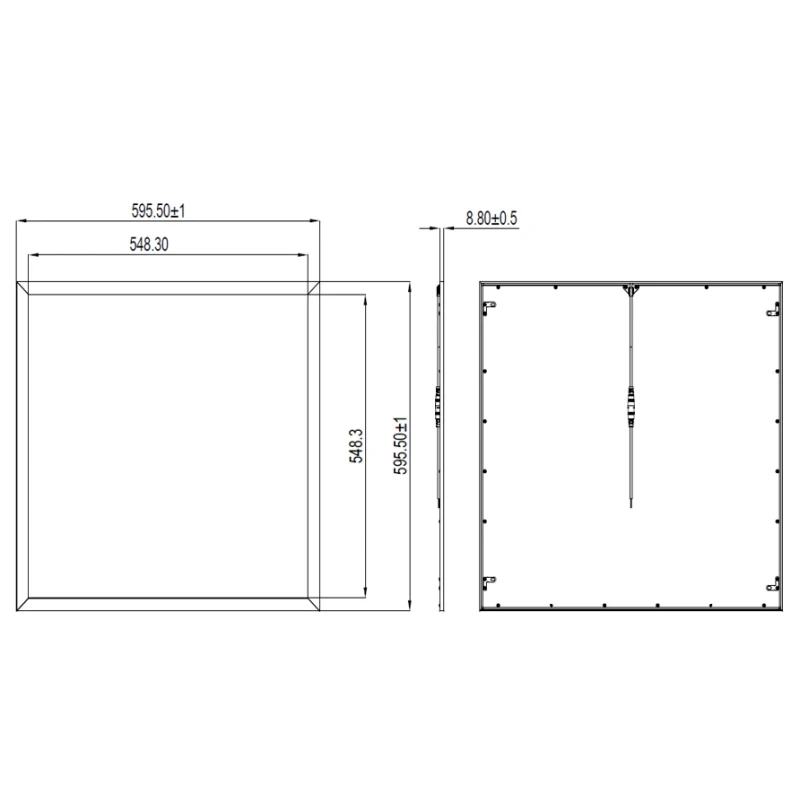

• A wide range of different sizes (60x60, 62x62, 30x120 and 60x120)
• High flexibility of lumen output due to wide driver choice
• 5 year system warranty
• Module is provided with integrated quick install connector
• Excellent color consistency of 3 SDCM
Code | Description | Price | Price+VAT | Unit | ||
---|---|---|---|---|---|---|
929003431506 |
Fortimo LED Panel 6060 830 MD3 UGR19 3350lm@700mA 4263lm@900mA (vajab toiteplokki) 139lm/W Philips | €45.00 | €54.90 | tk | ||
929003431606 |
Fortimo LED Panel 6060 840 MD3 UGR19 3500lm@700mA 4454lm@900mA (vajab toiteplokki) 139lm/W Philips | €45.00 | €54.90 | tk | ||
929003432306 |
Fortimo LED Panel 30120 840 MD3 UGR19 3500lm@700mA 4454lm@900mA (vajab toiteplokki) 139lm/W Philips | €50.00 | €61.00 | tk | ||
929003432106 |
Fortimo LED Panel 30120 830 MD3 UGR19 3350lm@700mA 4263lm@900mA (vajab toiteplokki) 139lm/W Philips | €50.00 | €61.00 | tk |
