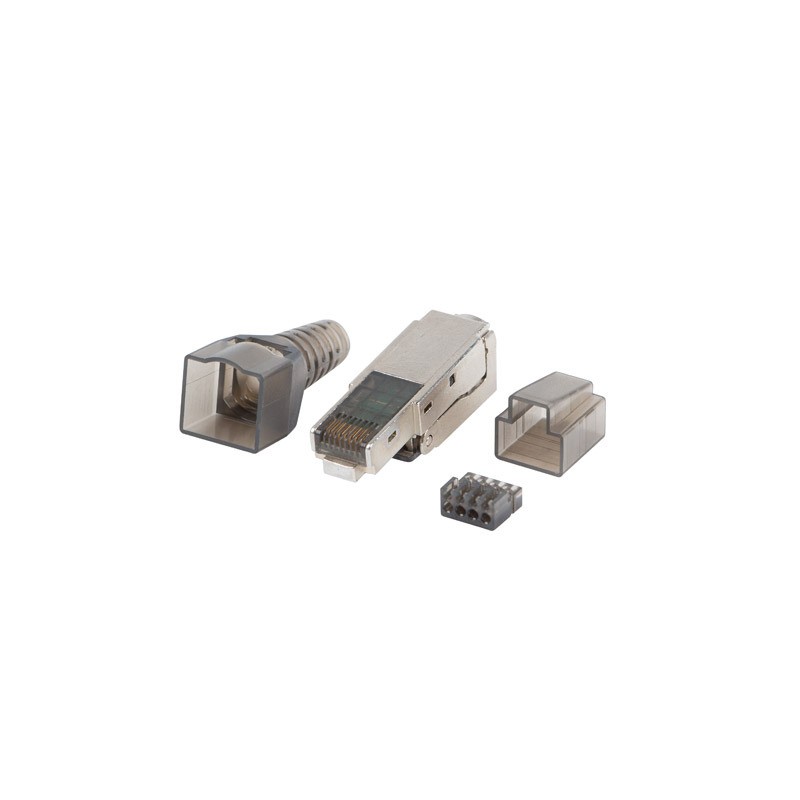

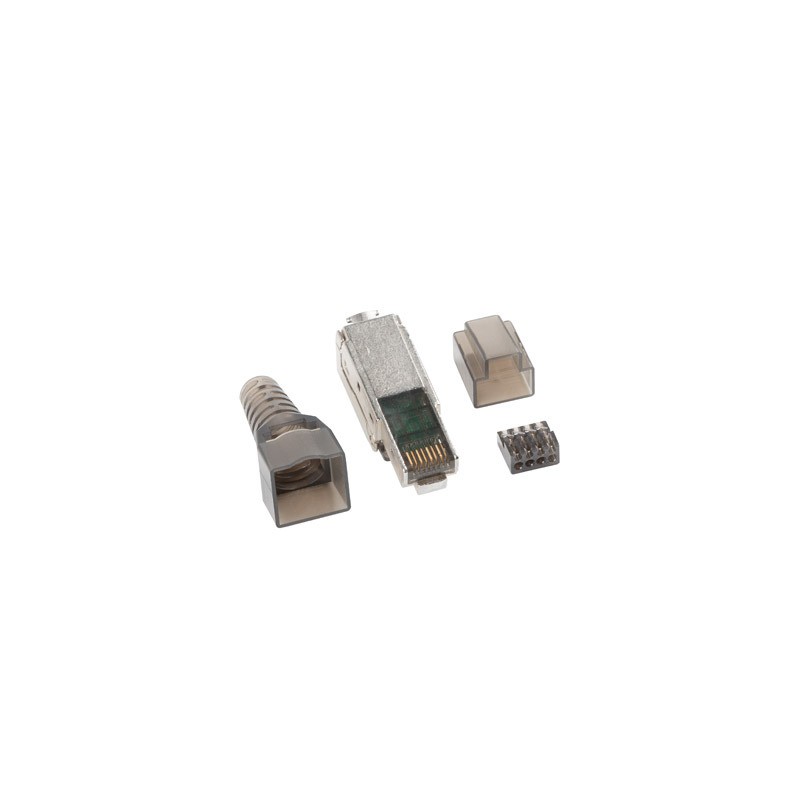

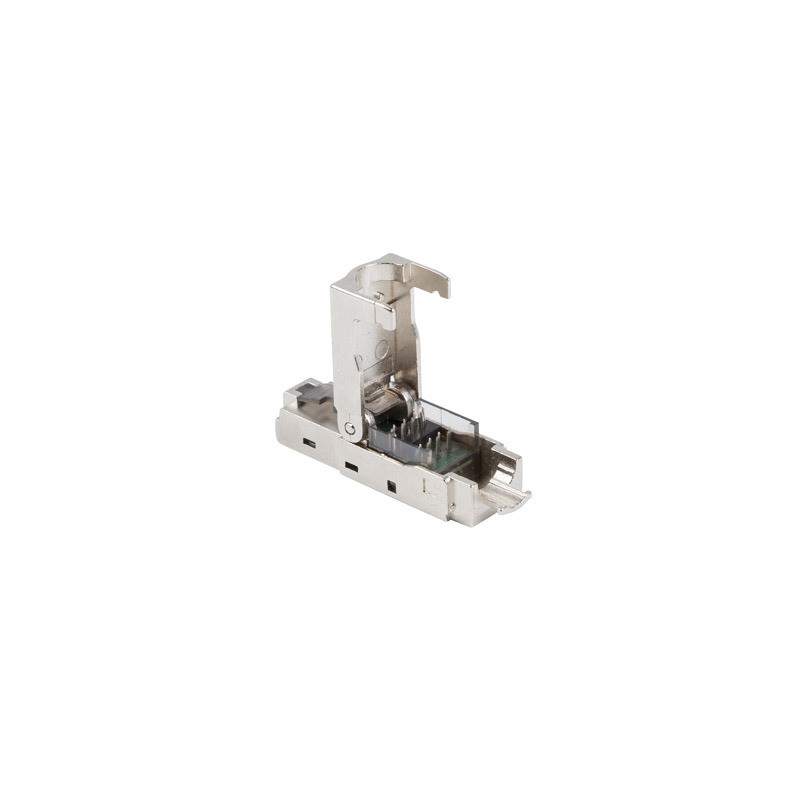

10182

Suitable for solid wire from AWG 26/1 to AWG 22/1.
Compliance with Class E ISO/IEC 11801 Ed.2.2.2011-06,DIN EN 50173-1:2011-09 10 GB IT suitable according to IEEE 802.3an
Adjustable strain relief, suitable for cable jacket diameter from 6.0 to 9.0mm.
Load bar for faster and easier wire pattern termination.
Reuseable design.
3µ gold plated phosphor bronze pin, durability: 750 cycles.
Operating temperature: -25 to 68, relateive humidity:
85%, air pressure: 70 to106KPa.
Intermediate resistance: 20M in normal atmosphere pressure (not include bulk resistor).
Insulated resistance: 1000M in normal atmosphere pressure.
Withstanding voltage: DC 1000V (AC 700V), no puncture or spark-over in 1 minute.
Retention strength: 7.7kg between jack and plug.
