XLed Home 2
XLed Home 2

XLed Home 2

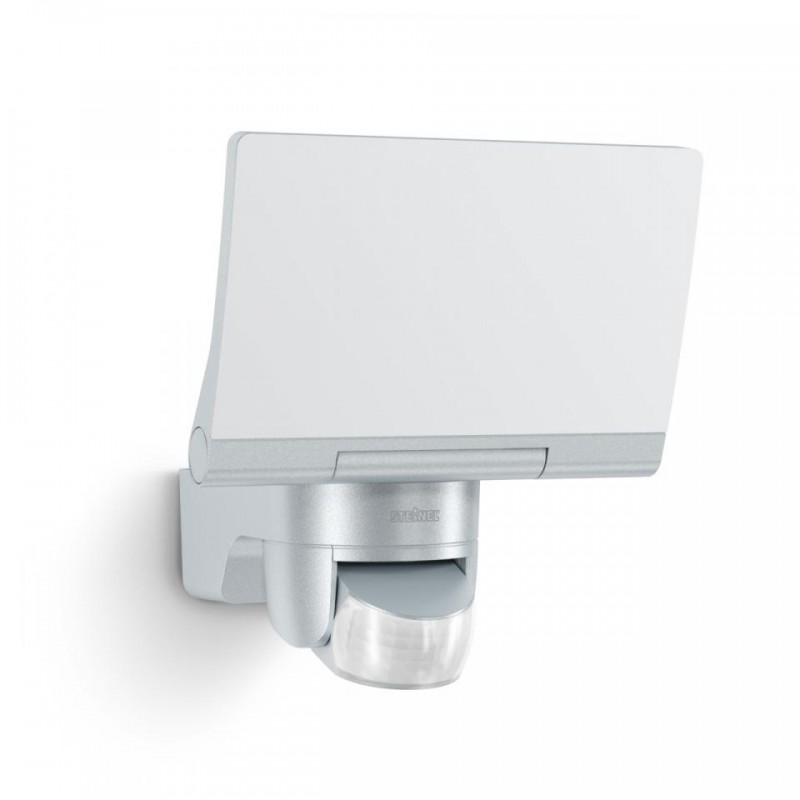

XLED home 2 sensor-switched outdoor floodlight for even more safety and security. Fully swivelling LED panel in classy stainless-steel look. For the most exacting of demands on design and maximum lighting convenience. 1184 lm at a power consumption of only 14.8 W. Swivelling precision IR sensor (horizontally: 180°, vertically: 90°). 140° angle of coverage, 14 m reach. High thermal conductivity magnesium composite cooling system (HCMC).

Technical specifications XLED home 2
Dimensions(w x h x d): 194 x 180 x 161 mm
Voltage: 230 - 240 V, 50 Hz/60 Hz
Mains power: 75 mA
Power factor: 0.84
Sensor type: Passive infrared
Output: 14,8W
Max. Output: Max. 1000 W, max. 4 fluorescent lamps / LED lamps, C < 88 µF
Brightness: 1184 lm
Efficiency: 80 lm/W
Light colour: 4000 K / SDCM 3
Colour rendering: Ra ≥ 80
LED cooling system: HCMC ( High Conductive Magnesium Composite)
LED life expectancy: 50,000 h (L70B10 to LM80)
Floodlight positioning range: 180° horizontally, 180° vertically
Detection angle: 140° with sneak-by protection
Sensor swivelling range: 180 °
Sensor tilting range: 90 °
Reach: 14 m
Capability of masking out individual segments - Yes
Time setting: 8 sec. - 35 min.
Response brightness: 2-2000 lx
Degree of protection (IP): IP44
Protection class: II
Material: UV-resistant plastic
Temperature range: -20°C - +40°C

Fails

description XLED HOME 2 tooteleht

description XLED HOME 2 manual

Code Description Price Price+VAT Unit
033057
XLED HOME 2 SILVER liikumisanduriga prozektor 14W(1484 lm), 180° 14m 3000K 2-2000lux 8sec-35min IP44 Steinel €102.26
€97.15
-5%
€118.52
tk
033071
XLED HOME 2 MUST liikumisanduriga prozektor 14W(1484 lm), 180° 14m 3000K 2-2000lux 8sec-35min IP44 Steinel €97.83
€92.94
-5%
€113.39
tk
033088
XLED HOME 2 VALGE liikumisanduriga prozektor 14W(1484 lm), 180° 14m 3000K 2-2000lux 8sec-35min IP44 Steinel €97.83
€92.94
-5%
€113.39
tk
065447
XLED home 2 SC MUST ÄPIGA liikumisanduriga prozektor 13,7W 1550lm 180° 10m 3000K 2-2000lux 5sec-60min IP44 Steinel €119.07
€113.11
-5%
€138.00
tk
Code: 033057
XLED HOME 2 SILVER liikumisanduriga prozektor 14W(1484 lm), 180° 14m 3000K 2-2000lux 8sec-35min IP44 Steinel
-5% Price: €102.26 €97.15
Price+VAT: €118.52
tk
Code: 033071
XLED HOME 2 MUST liikumisanduriga prozektor 14W(1484 lm), 180° 14m 3000K 2-2000lux 8sec-35min IP44 Steinel
-5% Price: €97.83 €92.94
Price+VAT: €113.39
tk
Code: 033088
XLED HOME 2 VALGE liikumisanduriga prozektor 14W(1484 lm), 180° 14m 3000K 2-2000lux 8sec-35min IP44 Steinel
-5% Price: €97.83 €92.94
Price+VAT: €113.39
tk
Code: 065447
XLED home 2 SC MUST ÄPIGA liikumisanduriga prozektor 13,7W 1550lm 180° 10m 3000K 2-2000lux 5sec-60min IP44 Steinel
-5% Price: €119.07 €113.11
Price+VAT: €138.00
tk
