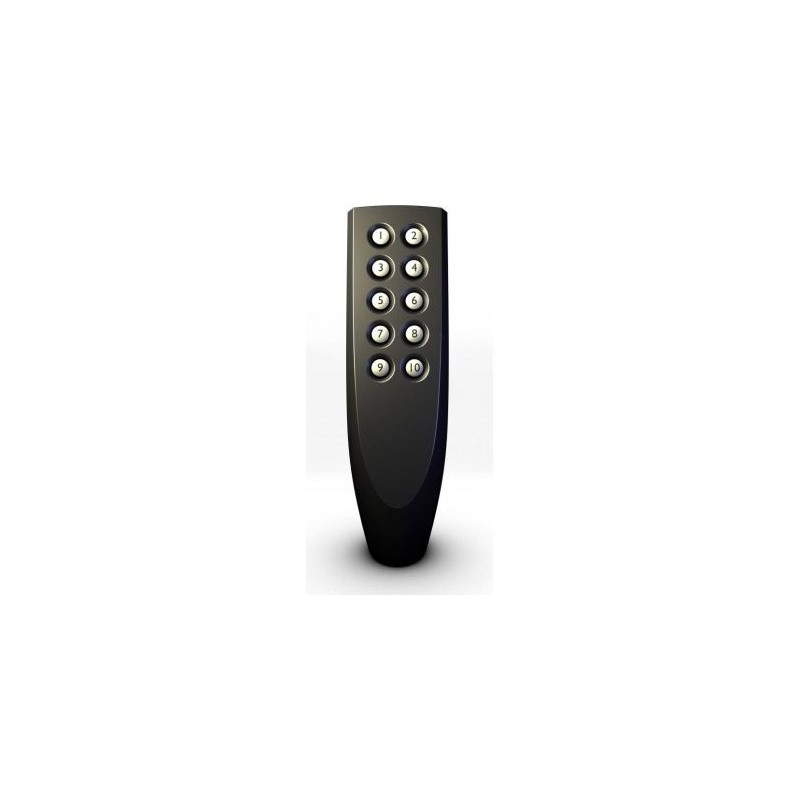

FW-RC10

10-button remote control.
Features of the module
*Ten-button remote control transmitter;
*Cooperation with remote control transmitters of the F&Wave system;
*The ability to control any number of receivers;
*On/off functionality (bistable switch) with receivers: FW-R1P, FW-R1D, FW-R2P, FW-R2D, FW-D1P, FW-D1D, FW-LED2P, FW-LED2D;
*Raise/lower the roller-blind functionality with receivers: FW-STR1P, FW-STR1D; * Dim/lighten the lighting functionality with receivers: FW-D1P, FW-D1D, FW-LED2P, FW-LED2D.

Technical data
power supply 3V DC
power consumption button presssed 20 mA, standby 15 nA
battery CR2032, battery life approx. 15 hours of transmitting (pressed button on the remote control)
working temperature -25÷50°C
radio frequency 868 MHz
dimensions 37×72×30mm

Operating range In an open space without any interfering factors the range of the devices controlled by radio fluctuates within the limits of 100 m. The range can be improved by direct retransmission of modules located in mutual coverage area.
