Key Features
Integrated 5A relay for appliance control; neutral required
Power consumption monitoring of all devices in your chosen room
Can function as a room thermostat together with Shelly BLU H&T- a Bluetooth temperature & humidity sensor for instant environmental data

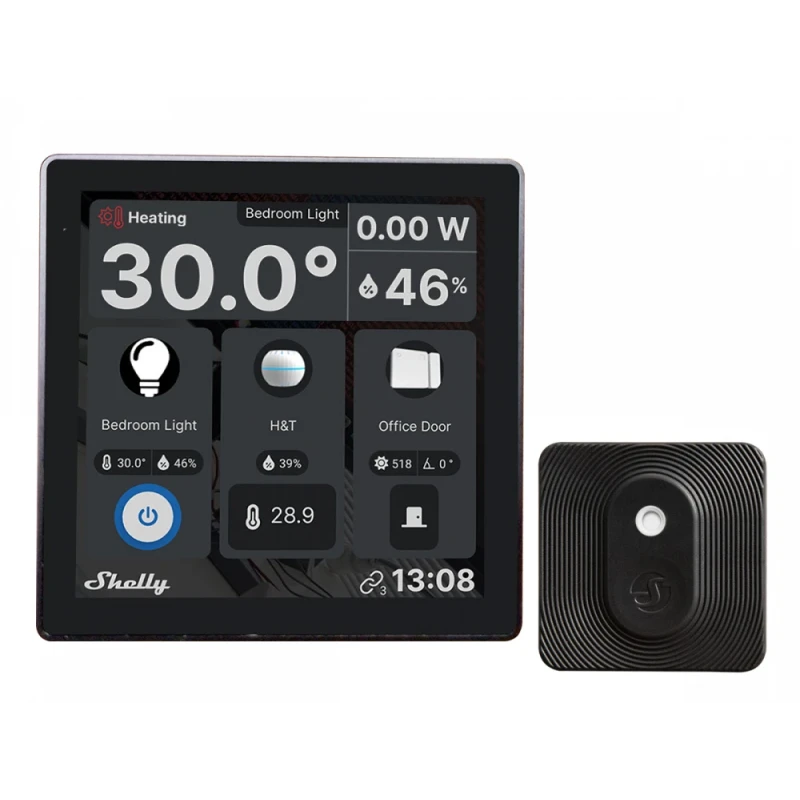

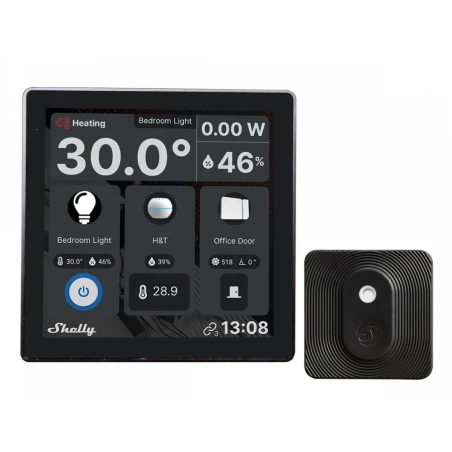

Color display, Easy navigation and customizable homescreen and brightness
Create scenes and schedules
Main interface is now updated with added Media Player, Sonos integration, Screensaver mode
Size (HxWxD): 85x85x30 mm / 3.35x3.35x1.18 inch
Weight: 180 g / 6.35 oz
Screw terminals max torque: 0.4 Nm / 4.43 lbin
Conductor cross section: 0.5 to 2.5 mm² / 20 to 14 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length: 6 to 7 mm / 0.24 to 0.28 in
Mounting: Wall box
Shell material: Plastic, aluminum, glass
Shell color: Black or white
Ambient working temperature: -20 °C to 40 °C / -5 °F to 105 °F
Humidity: 30 % to 70 % RH
Max. altitude: 2000 m / 6562 ft
Power supply: 230 VAC, 50/60Hz
Power consumption: < 1 W
Output circuits ratings
Max. switching voltage: 230 VAC
Max. switching current: 5A
Internal-temperature sensor: No
Ambient temperature sensor: Yes
Humidity sensor: Yes
Light sensor: Yes
Radio: Wi-Fi, Protocol: 802.11 b/g/n
RF band: 2401 - 2495 МHz , Max. RF power: < 20 dBm
Range: Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)
Bluetooth Protocol: 4.2, RF band: 2400 - 2483.5 MHz, Max. RF power: < 4 dBm
Range: Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)
Microcontroller unit CPU: MTK6580, RAM: 1 GB, Flash: 8 GB
Firmware capabilities: Schedules: 20, Webhooks (URL actions): 20 with 2 URLs per hook…
Scripting: No, MQTT: Yes
| Code | Description | Price | Price+VAT | Unit | ||
|---|---|---|---|---|---|---|
|
3800235264904 |
Shelly Wall Display Black/Must + BLU H&T Black/Must |
€153.00
€130.05 |
-15%
€161.26 |
tk |
