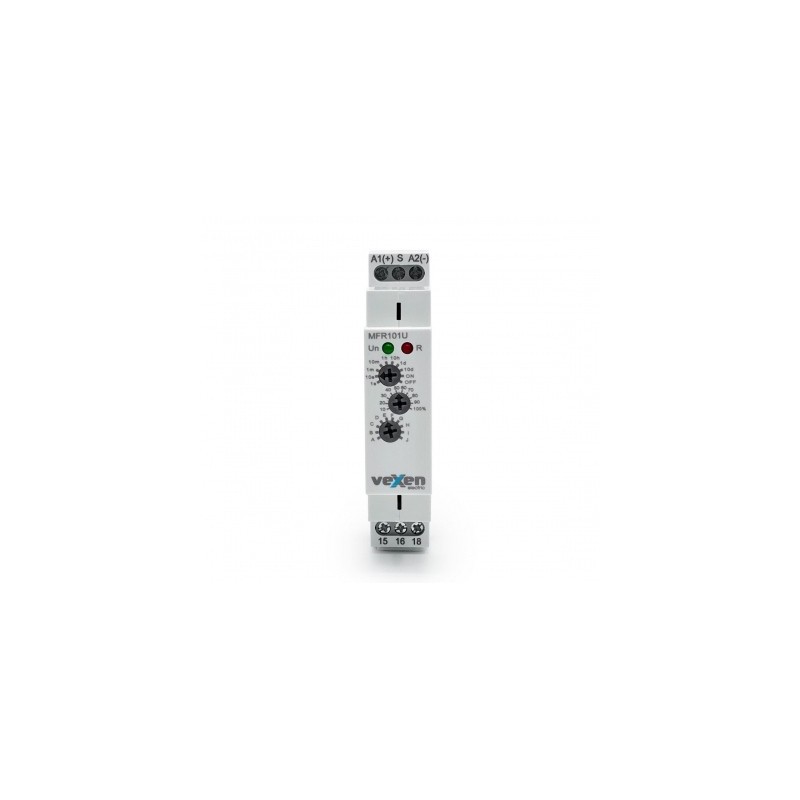

MFR101U multifunktsionaalne aegrelee

MFR101U multifunktsionaalne aegrelee

Technical parameters

Function A,B,C,D,E,F,G,H,I,J
Supply terminals A1-A2
Voltage range AC/DC 12-240V(50-60Hz)
Burden AC 0.09-3VA/DC 0.05-1.7W
Power input AC max.6VA/1.3W AC max.6VA/1.9W
Supply voltage tolerance -15%;+10%
Supply indication green LED
Time ranges 0.1s-10days,ON,OFF
Time setting potentionmeter
Time deviation 10%-mechanical setting
Repeat accuracy 0.2%-set value stability
Temperature coecient 0.05%/°C,at=20°C(0.05%°F, at=68°F)
Output 1×SPDT 2×SPDT
Current rating 16A/AC1
Switching voltage 250VAC/24VDC
Min.breaking capacity DC 500mW
Output indication red LED
Mechanical life 1×107
Electrical life(AC1) 1×105
Reset time max.200ms
Operating temperature -20°C to +55°C (-4°F to 131°F)
Storage temperature -35°C to +75°C (-22°F to 158°F)
Mounting/DIN rail Din rail EN/IEC 60715
Protection degree IP40 for front panel/IP20 terminals
Operating position any
Overvoltage cathegory lll.
Pollution degree 2
Max.cable size(mm2) solid wire max. 1x2.5 or 2x1.5/with sleeve max. 1x2.5 (AWG 12)
Standards EN 61812-1,IEC60947-5-1
Code Description Price Price+VAT Unit
MFR101U
Aegrelee multi. toide AC/DC 12-240V 1ÜL kont. 16A VEXEN €31.42
€20.00 		-36%
€24.40 		tk
Code: MFR101U
Aegrelee multi. toide AC/DC 12-240V 1ÜL kont. 16A VEXEN
-36% Price: €31.42 €20.00
Price+VAT: €24.40
tk
×
