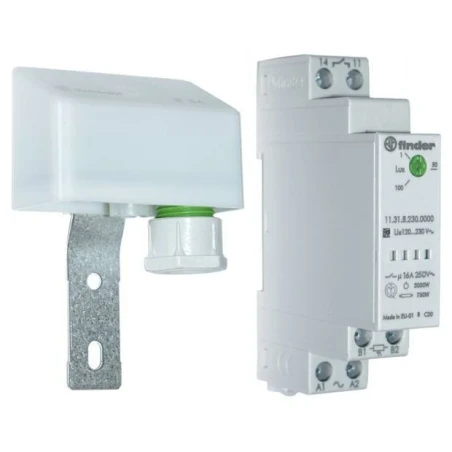

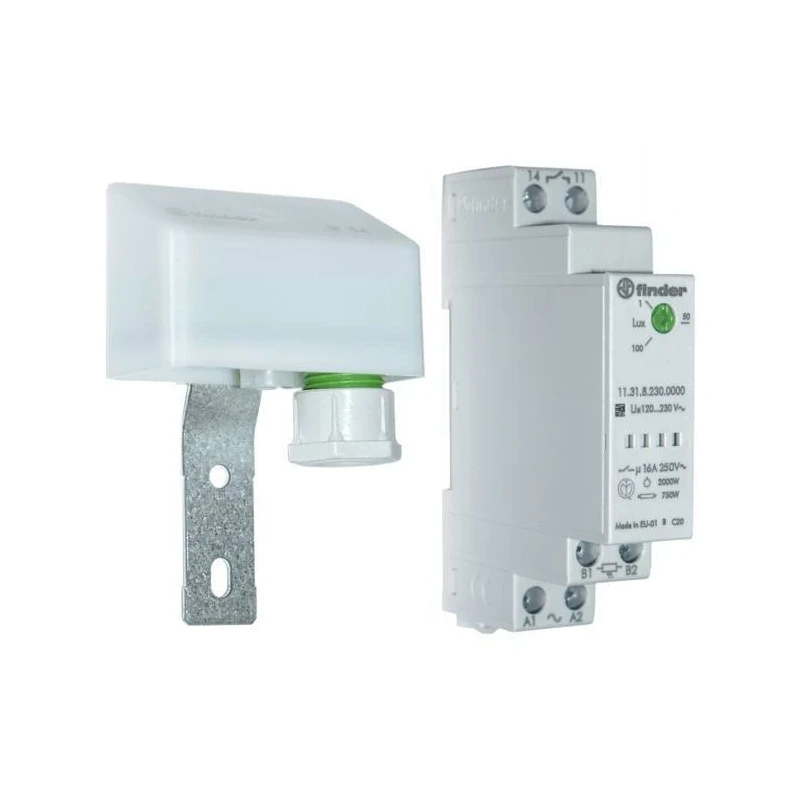

Type 11.31 Light Dependent Relay 16A

Description

Type 11.31 Light Dependent Relays, “twilight switches” for switching on lamps according to the level of ambient light, supplied with separate photosensitive element. Equipped with 1 NO 16 A contact, sensitivity adjustment from 1 to 100 lux, one module, 17.5 mm wide. Low consumption in stand-by. Version for 24 V DC/AC supply, and version for 110…230 supply.

First 3 operating cycles of the relay without delay at switching on and off, in order to facilitate the adjustment process by the installer
LED indicators
SELV separation between power supply circuit and contacts
Double insulation between power supply and photosensor
35 mm rail (EN 60715) mounting
Cadmium-free contacts
Cadmium-free photosensor element (IC photo diode)
