Modella

The Modella family

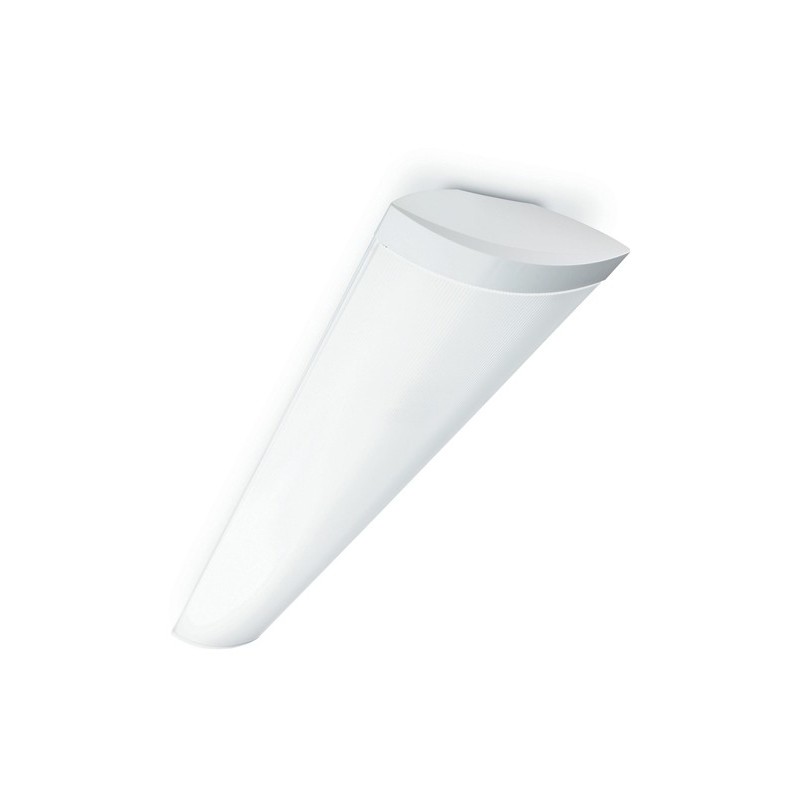

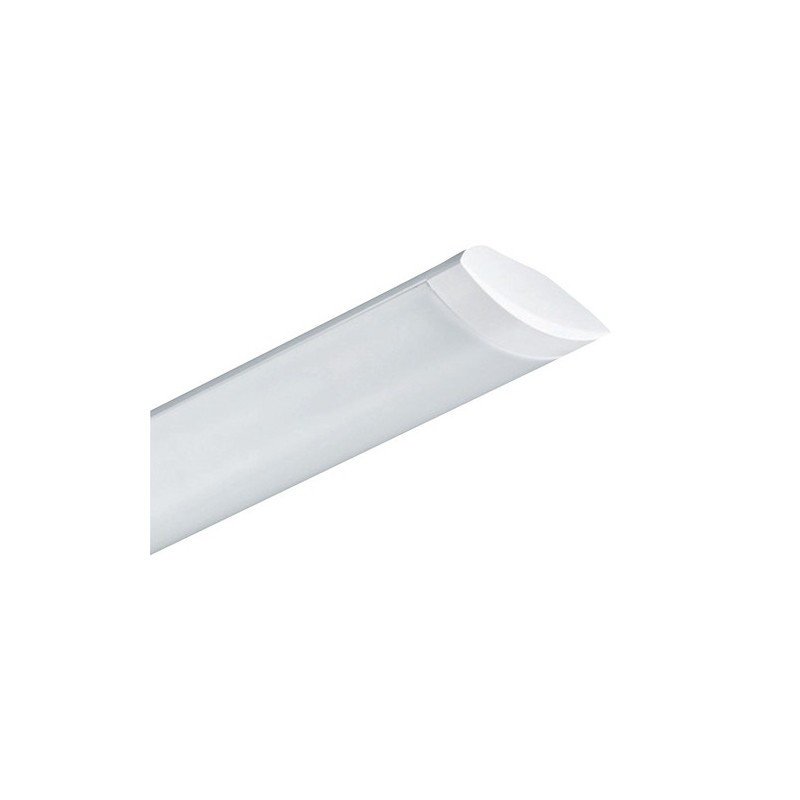

Modella TCS125 is a luminaire for TL-D and TL5 linear fluorescent lamps with an attractive design to suit all interiors. It comes with a choice of smooth, easy-to-clean opal or prismatic covers. The covers can be suspended from the end caps to allow easy lamp replacement without the need for any tools.

Type:  TCS125
Light source: Fluorescent: 2 x or 1 x MASTER TL5 / G5 / 28, 35, 49, 54 W 2 x MASTER TL-D / G13 / 18, 36, 58 W
Lamp included: Yes (lamp color 830 or 840)
Gear: Electronic, 220 - 240 V / 50 - 60 Hz: High Frequency Performer (HFP) High Frequency Regulator (HFR)
Optical cover: Opal cover (O) Prismatic cover (P) Prismatic cover polycarobonate (PCP)
Material Housing: powder painted steel, white End-caps: plastic, white Cover: opal, or prismatic, internally ribbed (PMMA or PC)
Installation: Individual; screw ceiling mounting Remarks 2 Cable-entry versions available (SH)
Main applications: Office, retail, hospitality, industry
