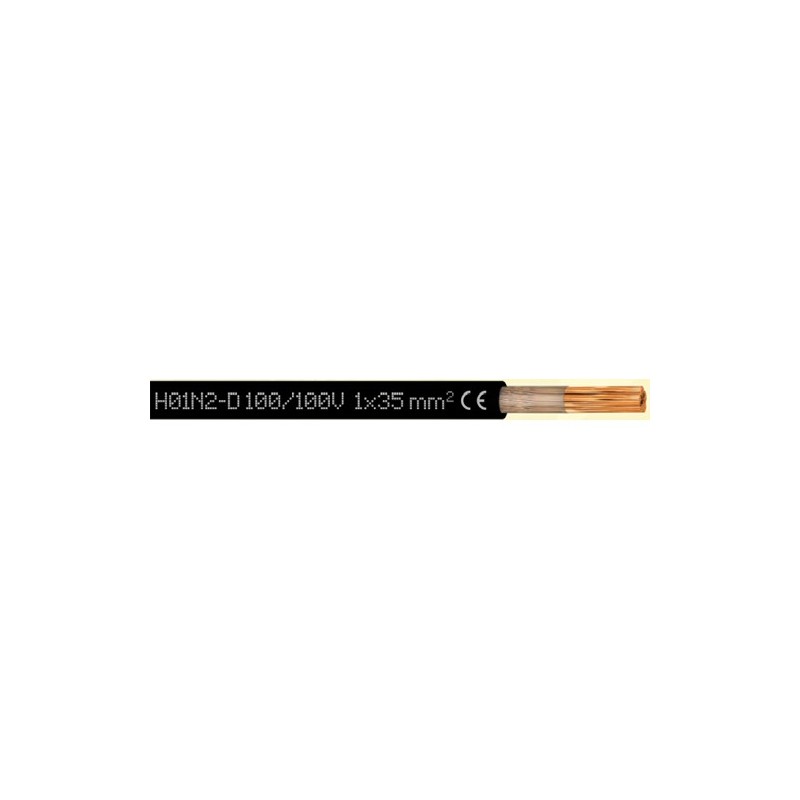

H01N2-D keevituskaabel

Cable symbol explanation: H01N2-D - cable manufactured
according to harmonized standard
(H) for voltage 100/100V (01) in
chloroprene rubber sheath (N2)
with conductors of normal flexibility
(D)
Conductors: copper, multi-wire
Sheath: chloroprene rubber
Operating temperatuure: -20°C to +85°C
Nominal voltage: 100/100V
Application: cables are intended for connecting welding devices with welding
electrode clamp and the welded
object, in wet and dry surroundings,
inside and outside buildings.
