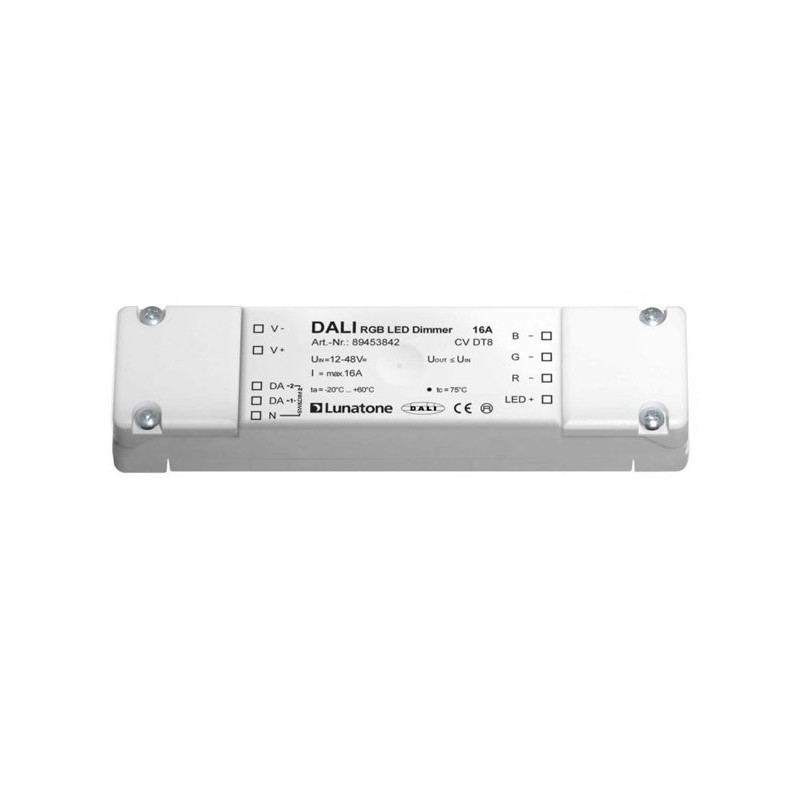

DALI LED-Dimmer for RGB colour
control
suitable for constant voltage LEDmodules
Operating Mode DT8: one DALI address
for the independent control
of light level and colour (DALI DT8,
Type RGBWAF)
Operating Mode Colour&Dim:
control by 2 DALI-addresses, one for
adjusting the light level and one for
adjusting the colour
SwitchDim2: 2 switch-inputs offer
control of light level and colour
without DALI
dimming range 0.1%-100%
adjustable PWM-frequency
(122Hz/244Hz/488Hz/976Hz)
supply voltage 12V to 48V DC
max. input current 16A
the maximum input current can be
distributed on the channels at will low standby power consumption high efficiency
configuration via PC-software DALICockpit
and DALI USB-interface
user-friendly factory default settings

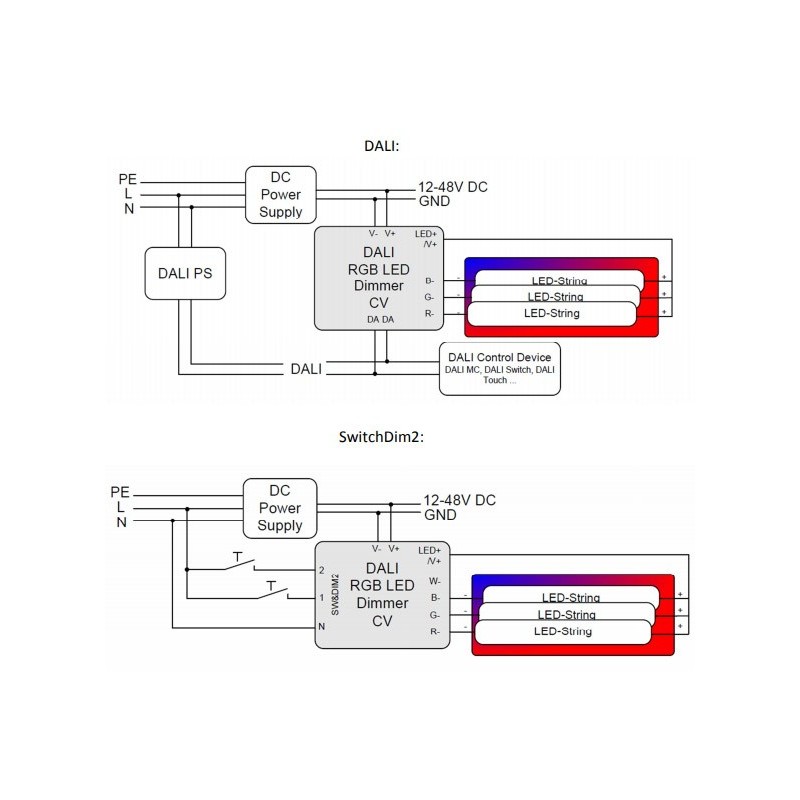

RECOMMENDATION: Care should be taken on keeping cable lengths between DC power supply
and dimmer as well as between dimmer and luminaires (Led-Strings) as short as possible. This kind
of installation will minimize the influence of voltage drops.
Kood
Kirjeldus
KM-ta
KM-ga
ühik
89453842
DALI DT8 RGB Led dimmer 16A 12-48V SwitchDim2 (Colour&Dim) Lunatone
137,50 €
167,75 €
tk
Kood: 89453842
DALI DT8 RGB Led dimmer 16A 12-48V SwitchDim2 (Colour&Dim) Lunatone
