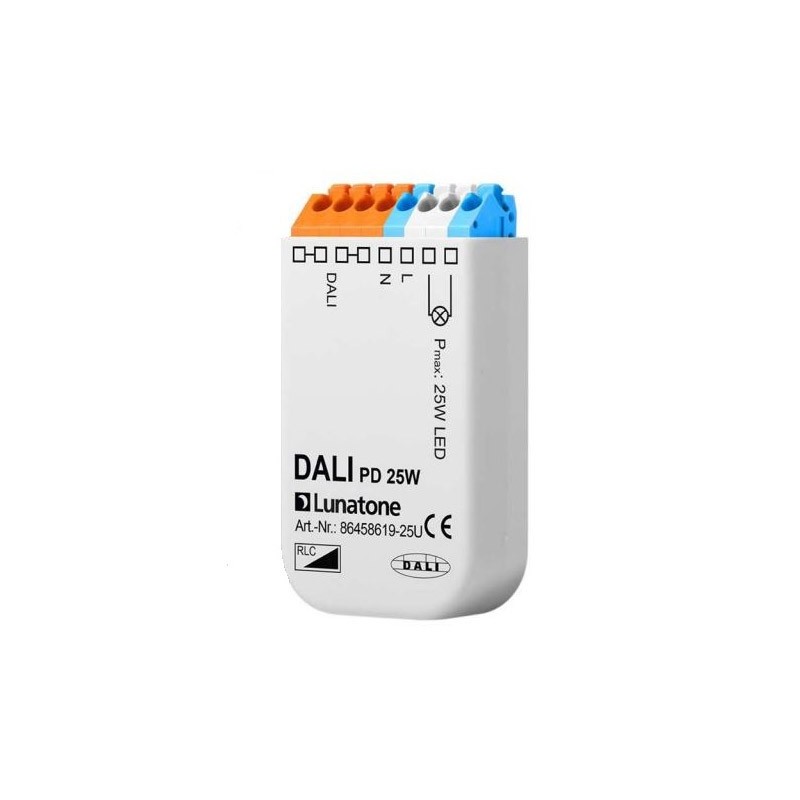

DALI PD - Phase Dimmer Module

Overview
Dimming of 230V LED-Retrofit-bulbs via DALI (Device Type 4 from firmware 3.0 and higher)
Different types for loads from 3W to 25W (PD) for back box installation and for 10-300W (PD300) for remote ceiling and din rail
trailing edge phase cut dimmer for resistive and capacitive loads, leading edge phase cut dimmer for resistive and inductive loads as well available as universal dimmer
Conversion of the DALI dimlevel into a phase cut controlled voltage (trailing/leading edge)
The minimum dim level can be set via DALI (MIN LEVEL)
Additional operating mode as switch (DT7 compliant) available with firmware 3.5 and higher
The module represents a DALI-line client and therefore it has its own DALI-address.
Double DALI terminals
