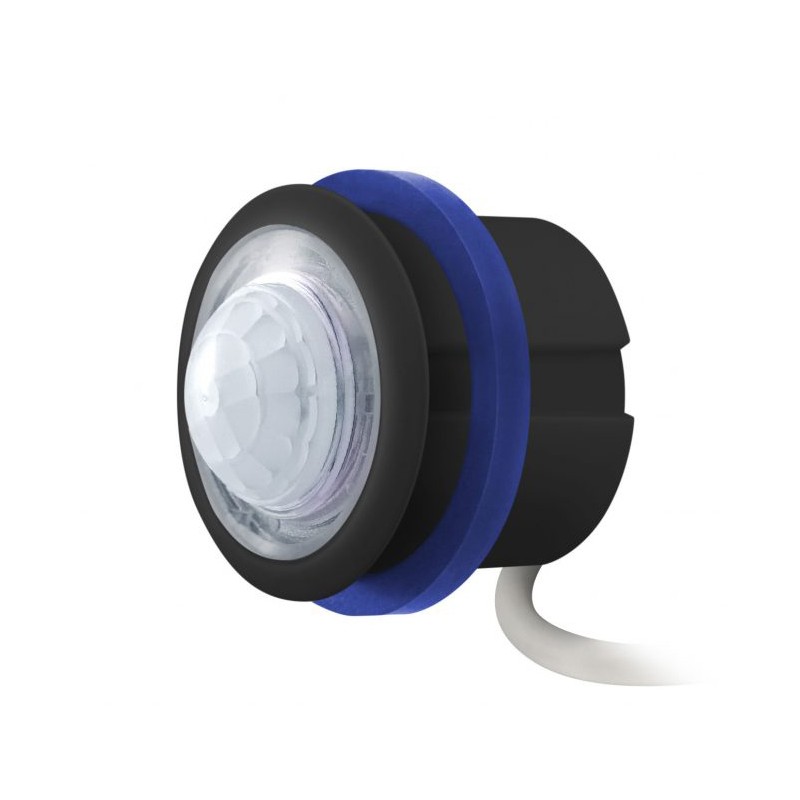

DALI-2 CS Mini liikumisandur
Sensor Module for DALI and DALI-2 lighting systems
Movement detection (PIR) instance type 3 (62386-303) and light intensity measurement instance type 4 (62386-304)
4 operating modes: Movement triggered, Movement triggered with constant light control, Constant light control, Light control (4 thresholds)
Operating modes can be changed via scenes and external DALI commands
Corridor function – second light level before off in case of absence
Light threshold-controlled regulation for the control of blinds or roller blinds
The module can be used as a DALI light controller or just as sensor unit for integration in building management systems
Easy configuration via DALI-Cockpit Software Tool and Lunatone DALI USB.
Multiple sensor modules can be installed within a DALI system.
Automatic synchronisation of multiple DALI-2 CS modules with the same effective range
Supply via the DALI bus, no additional power supply needed
Suitable for installation in luminaries
Version for indoor and outdoor use IP65
Kood | Kirjeldus | KM-ta | KM-ga | ühik | ||
---|---|---|---|---|---|---|
86457244 |
DALI-2 CS Mini liikumisandur MUST Lunatone | 106,00 € | 129,32 € | tk | ||
86457244-INT-W16-IP65 |
DALI-2 CS Mini Integration RAL9016 IP65 Instance mode liikumisandur VALGE Lunatone | 99,90 € | 121,88 € | tk | ||
86457244-IP65 |
DALI-2 CS Mini IP65 liikumisandur MUST Lunatone | 134,00 € | 163,48 € | tk | ||
86457244-W16 |

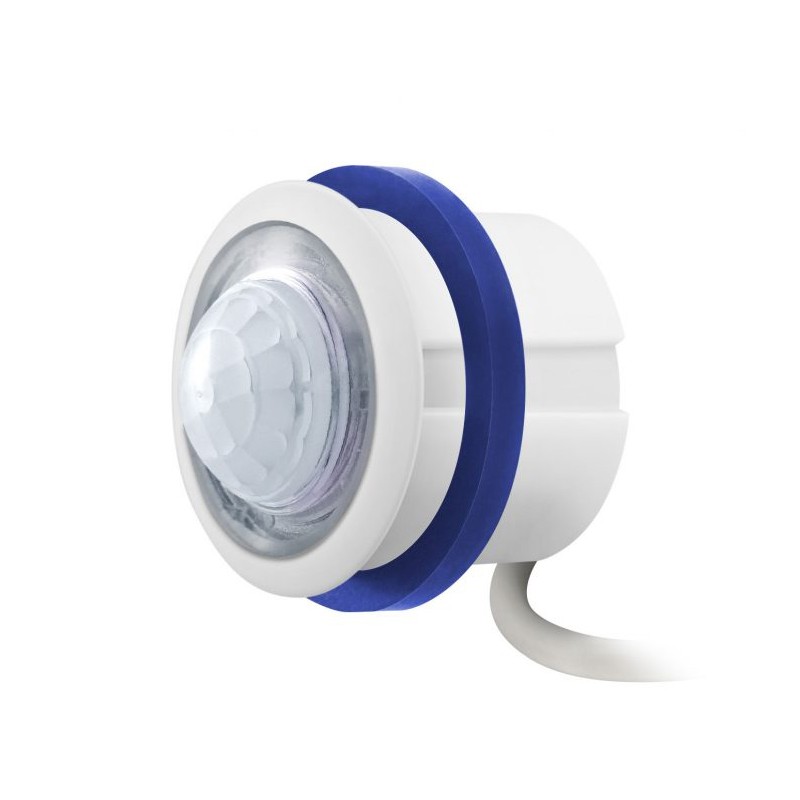

DALI-2 CS Mini RAL 9016 liikumisandur VALGE Lunatone | 115,00 € | 140,30 € | tk | ||
86457244-W16-IP65 |
DALI-2 CS Mini IP65 liikumisandur VALGE Lunatone | 134,00 € | 163,48 € | tk |
KM-ga: 129,32 €
KM-ga: 121,88 €
KM-ga: 163,48 €
KM-ga: 140,30 €
KM-ga: 163,48 €
