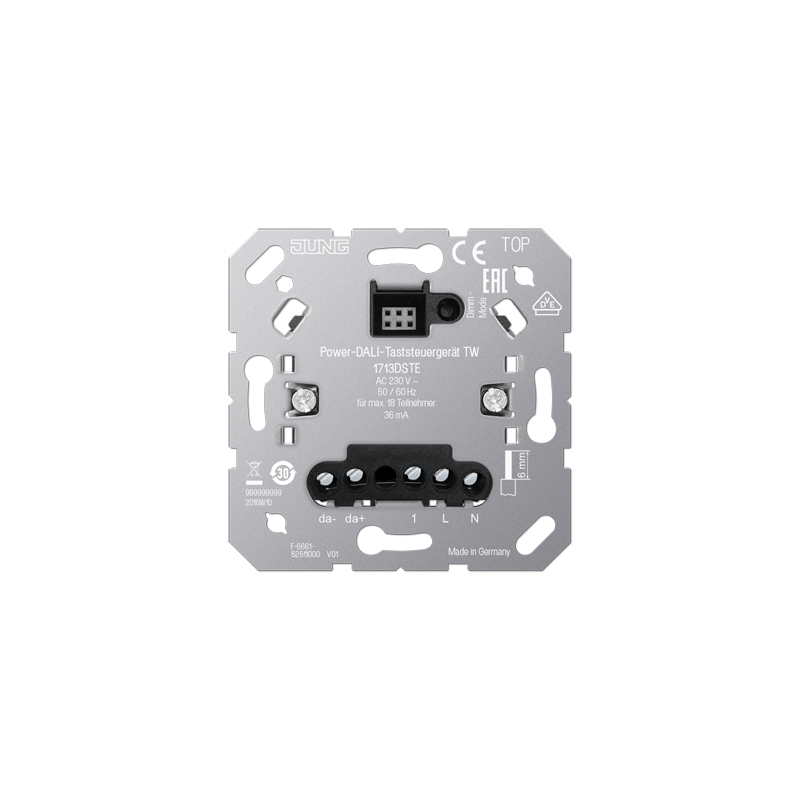

1713 DSTE Power-DALI puutedimmer Tunable White

1713 DSTE Power-DALI puutedimmer Tunable White

with satellite input
for covers ref.-no.: .. 1700 .., .. 1701 .., .. 1702 .., .. 1750 D .., .. 1751 BT .., .. 17180 .., .. 17280 .., .. 17181 .., .. 17281 .., DWPM 17360 ..

Intended use
Switching and brightness setting for luminaires with DALI interface
Setting of colour temperature for luminaires with DALI Device Type 8 for tunable white acc. to IEC 62386-209
Operation with suitable cover of the LB Management
If several automatic switches are to be used, a DALI push-button controller can be connected to up to five 3-wire satellite inserts. Parallel connection of several DALI push-button controllers with automatic switches or motion/presence detectors is not possible.
Installation in flush box according to EN 60670-1

Product characteristics
DALI supply for a maximum of 18 subscribers
Parallel switching of up to 4 DALI control units with the option of supplying up to 72 DALI subscribers
Saving of minimum brightness, coldest and warmest colour temperature
Switch-on with last brightness / colour temperature or saved switch-on brightness / colour temperature
With centre plate 2-gang: Adjustment of the colour temperature via right rocker
Test operation for functional test

Koguseline allahindlus

Kogus Discount
10 10%
Kood Kirjeldus KM-ta KM-ga ühik
1713DSTE
Power-DALI puutedimmer Tunable White max 18 driverit JUNG 155,08 €
147,33 €
-5%
179,74 €
tk
Kood: 1713DSTE
Power-DALI puutedimmer Tunable White max 18 driverit JUNG
-5% KM-ta: 155,08 € 147,33 €
KM-ga: 179,74 €
tk
