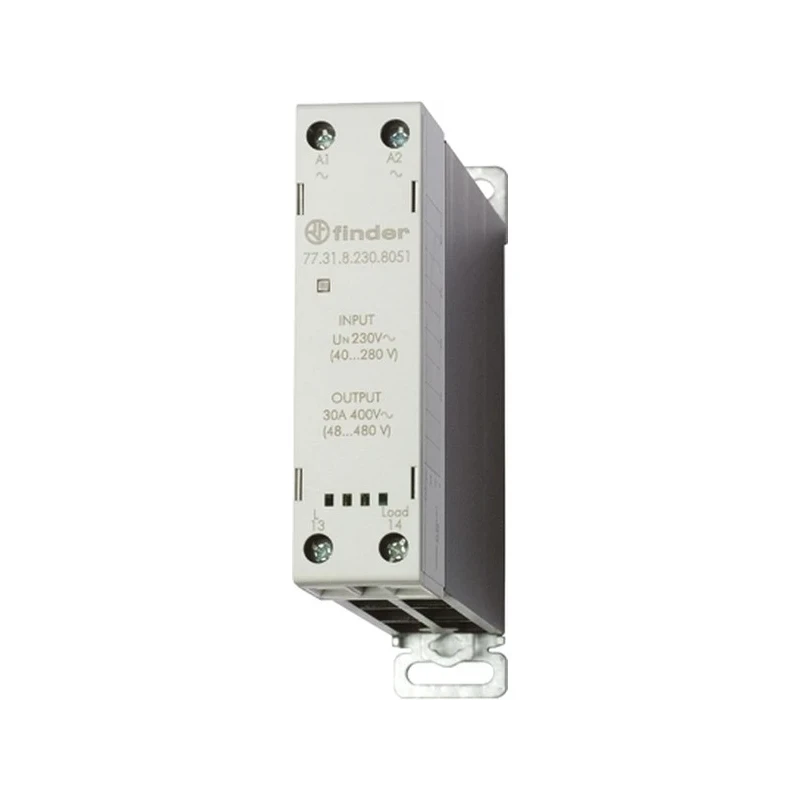

30 A modular SSR, 1 NO output
• 22.5 mm housing, heat-sink + plastic cover
• 60 to 440 V AC output (with back to back SCR)
• 6 kV (1.2/50 µs) insulation between Input and Output
• Zero-crossing and random switch-on versions available
• High switching speed
• High endurance
• Silent switching
• Spark and bounce-free switching
• Low control power
• 3-phase general purpose
• “Relay-style” terminal arrangement (input and output terminals on opposite sides)
• 35 mm rail (EN 60715) mount
Kood | Kirjeldus | KM-ta | KM-ga | ühik | ||
---|---|---|---|---|---|---|
773182308050 |
Pooljuht relee SSR 1F sisend 230V (A1-A2) - väljund 60-440 V AC 30A Finder | 52,30 € | 63,80 € | tk |
