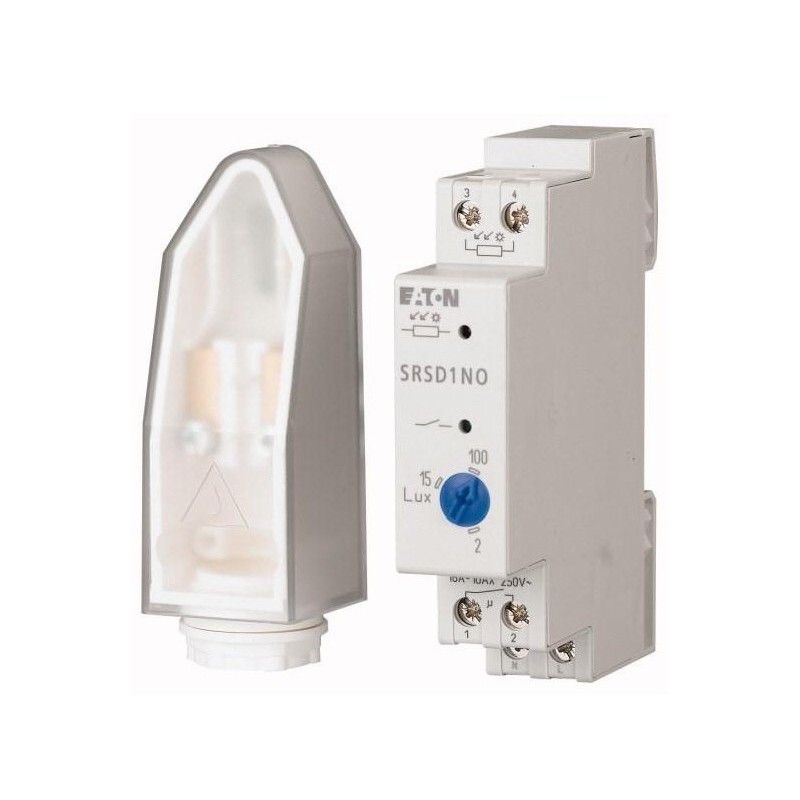

SRSD1NO hämaralüliti DIN latile IP54

Nominal rated voltage    V 230
Nominal rated frequency    Hz 50 - 60
Max. incandescent lamp load    2300W
Max. load fluorescent lamp  VA 2300
Max. load fluorescent lamp (Duo circuit)    VA 2300
Max. load fluorescent lamp (parallel compensated)    VA 400
Max. switching current (cos phi = 0.6)    A 0
Rated switch current    A 16
Adjustment range brightness value    lx 2 - 100
With programmable overnight shutoff      No
Push button input      No
Rated voltage light sensor  V 0
Max. conductor length light sensor    m 100
Protection class light sensor      II
Mounting method light sensor  Wall mounted
Mounting method      DIN rail
Width in number of modular spacings      1
Built-in depth  mm 65.5
Degree of protection  (IP) IP20
Degree of protection (IP) light sensor      IP54
