KE91 Hargnemisklemm 6xAl/Cu 50mm²

Connectable conductor cross section fine-strand without cable end sleeve (Min-Max) 25-35 mm²
Connectable conductor cross section fine-strand with cable end sleeve (Min-Max) 2.5-35 mm²
Connectable conductor cross section solid-core (Min-Max) 6-50 mm²
Connectable conductor cross section multi-wired (Min-Max) 2.5-50 mm²
Rated current In 290 A
Rated voltage 1000 V
Type of electrical connection 1 Screw connection
Type of electrical connection 2 Screw connection
Number of levels 1
Number of clamp positions per level 6
Suitable for conductor material Aluminium/copper
Mounting method DIN rail (top hat rail) 35 mm
Material insulation body Thermoplastic
Operating temperature (Min-Max) -5 - 80 °C
Width 44.6 mm
Height 43 mm
Depth 49 mm

Kood	Kirjeldus	KM-ta	KM-ga	ühik
KE91	KE91 Hargnemisklemm 6xAl/Cu 50mm² hall ENSTO	8,46 €	10,49 €	tk

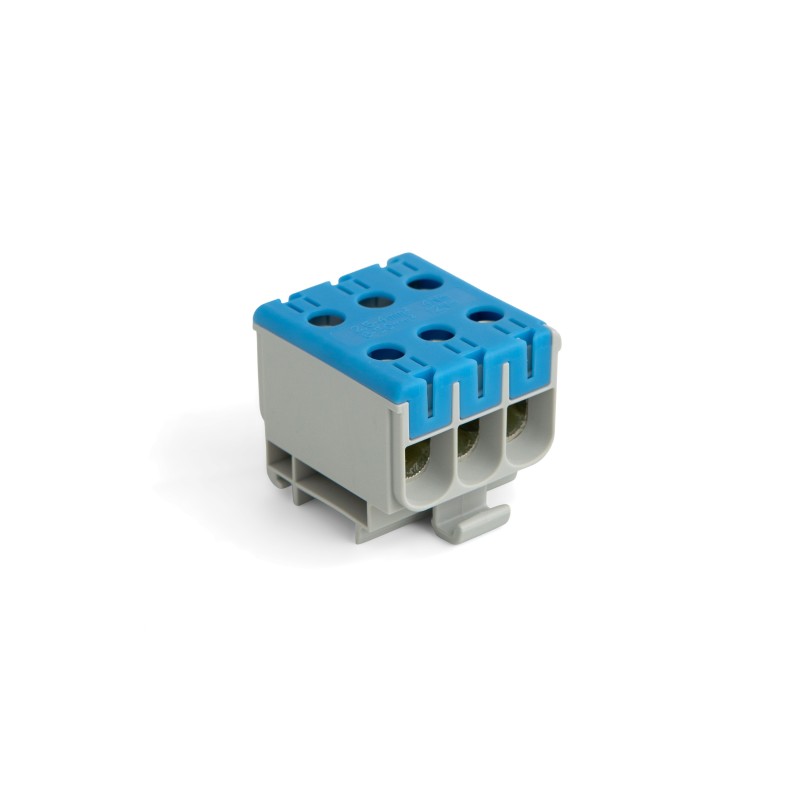

KE91.2	KE91.2 Hargnemisklemm 6xAl/Cu 50mm² sinine ENSTO	8,90 €	11,03 €	tk

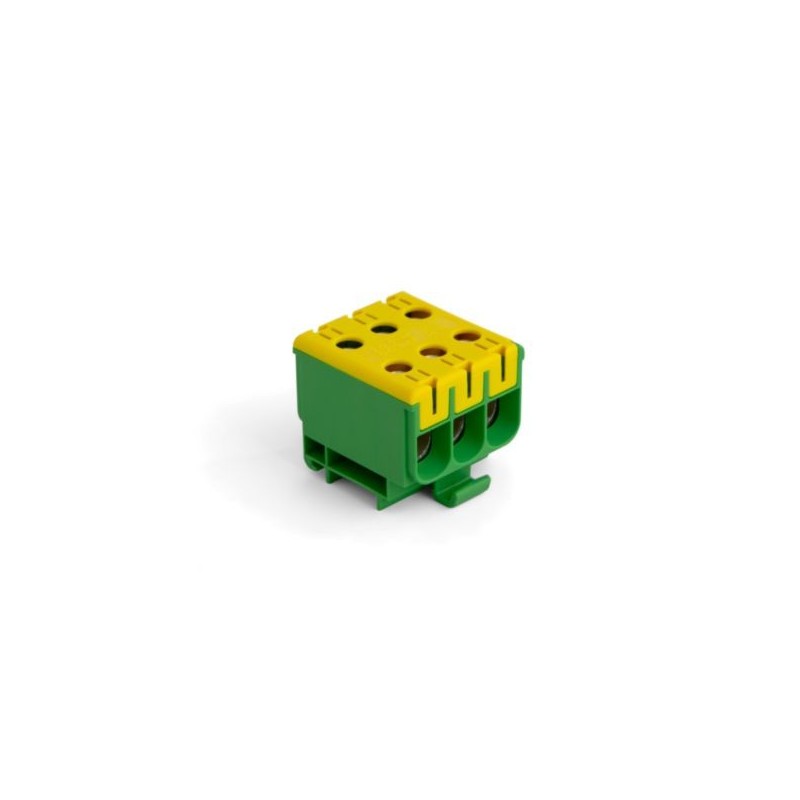

KE91.3	KE91.3 Hargnemisklemm 6xAl/Cu 50mm² ko/ro ENSTO	8,90 €	11,03 €	tk
