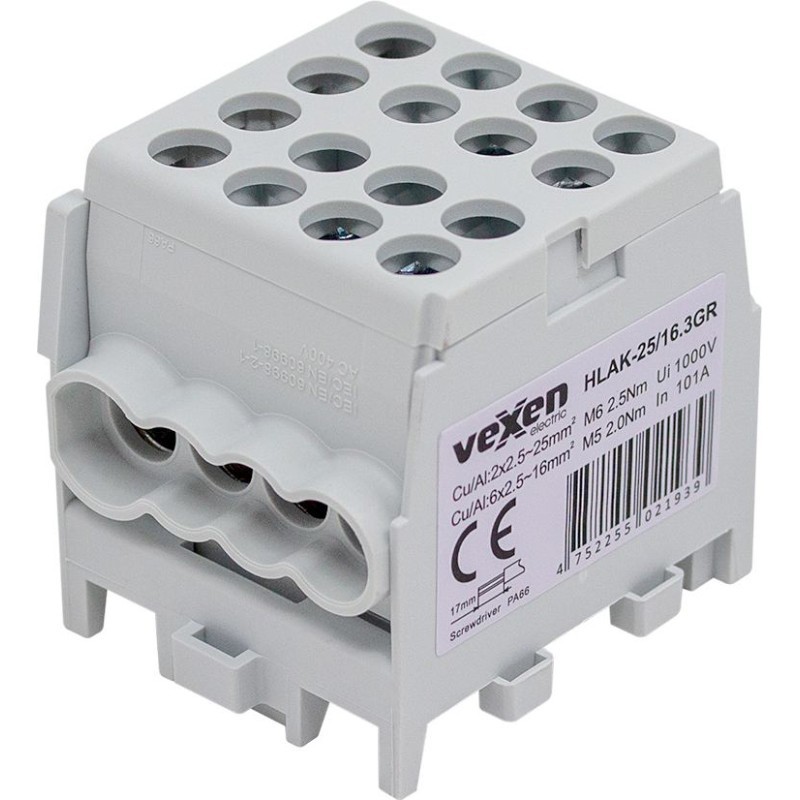

Jaotusklemm HLAK Al/Cu 2x25 - 6x16mm2 hall

Jaotusklemm HLAK Al/Cu 2x25 - 6x16mm2 hall

MATERIAL
Size(mm) 44.5x37.5x41.0
Screw Zinc-Coated Steel
Conductor Tin-Coated Brass
Cover PA66/V-0
Housing PA66/V-0
ELECTRICAL DATA
Standards IEC 60998-2-1
Voltage(V) 1000
Current(A) 101
WIRING DATA
Strip Length(mm) 17
Connection Points 2 6
Solid, stranded(mm²) 2.5~25 2.5~16
Fine stranded(mm²) 2.5~16 2.5~10
Torque(N.m) 2.5 2
Screw Size M6 M5

Kood	Kirjeldus		KM-ta	KM-ga	ühik
HLAK-25/16.3GR	Jaotusklemm HLAK Al/Cu 2x25 - 6x16mm2 hall Vexen		3,47 € 3,12 €	-10% 3,87 €	tk

Kood: HLAK-25/16.3GR

Jaotusklemm HLAK Al/Cu 2x25 - 6x16mm2 hall Vexen

-10% KM-ta: 3,47 € 3,12 €
KM-ga: 3,87 €
