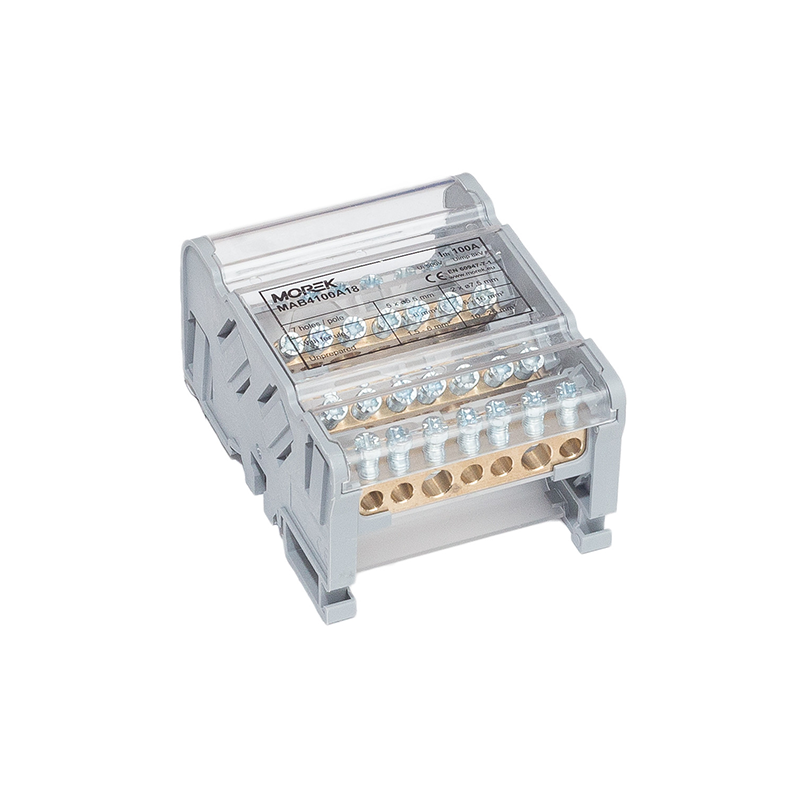

Hargnemisplokk 4P 100A
- Wire material Cu
- Cross-section min. (mm²) 1,5
- Cross-section max. (mm²) 25
- Input wire min. (mm²) 2 x 10
- Input wire max. (mm²) 2 x 25
- Output wire min. (mm²) 5 x 1,5
- Output wire max. (mm²) 5 x 6
- Number of connections 7
- Nominal current (A) 100
- Nominal voltage (V) 500
- Material Brass, galvanized steel, polyamide PA66, polycarbonate
- Mounting method DIN rail, screw
- Item width (mm) 97
- Item length (mm) 71
- Item height (mm) 52
- Rated surge voltage (kV) 8
- Short-circuit resistance (kA/1s) 3
- Tightening torque (Nm) 2,5 Nm
- Certification EN 60947-1; EN 609947-7-4
- Flame resistance UL94 V0
| Kood | Kirjeldus | KM-ta | KM-ga | ühik | ||
|---|---|---|---|---|---|---|
|
MAB4100A18 |
Hargnemisplokk, 4P , 100A-7, 2X25+5X6mm² , Morek | 8,20 € | 10,16 € | tk |
Kood: MAB4100A18
Hargnemisplokk, 4P , 100A-7, 2X25+5X6mm² , Morek
KM-ta:
8,20 €
KM-ga: 10,16 €
KM-ga: 10,16 €
