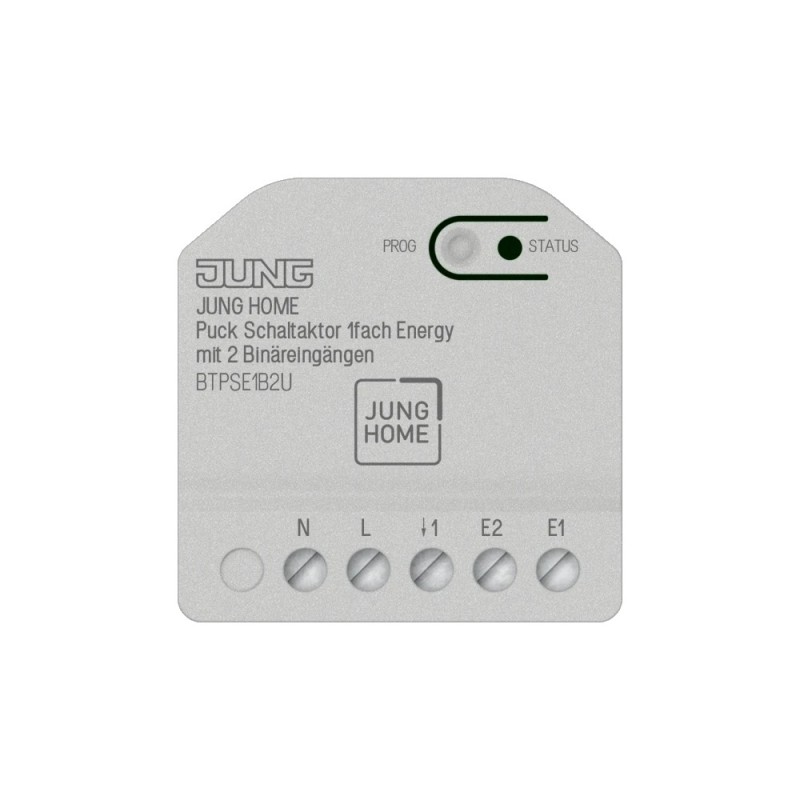

Lülitusseade 1-kanal energiamõõtmisega 2-binaarsisendiga 16A, 230VAC harutoosi

• Intended use
• Manual switching of lighting and common household devices
• Power (W) and energy measurement (kWh) of the connected devices
• Operation via binary inputs of the JUNG HOME actuator, JUNG HOME push-button, JUNG HOME sensors and JUNG HOME app
• Connection of devices (e.g. push-buttons, switches or weather sensors) to the binary inputs for triggering scenes, operating electrical loads, polling of statuses, etc.
• Automatic switching of lighting and common household devices. Requirement: at least one of the following devices is in the project (Bluetooth® Mesh network): JUNG HOME mini actuator, JUNG HOME socket, system insert with JUNG HOME push-button or JUNG HOME motion or presence detector, JUNG HOME room thermostat
• Wireless linking with JUNG HOME system devices

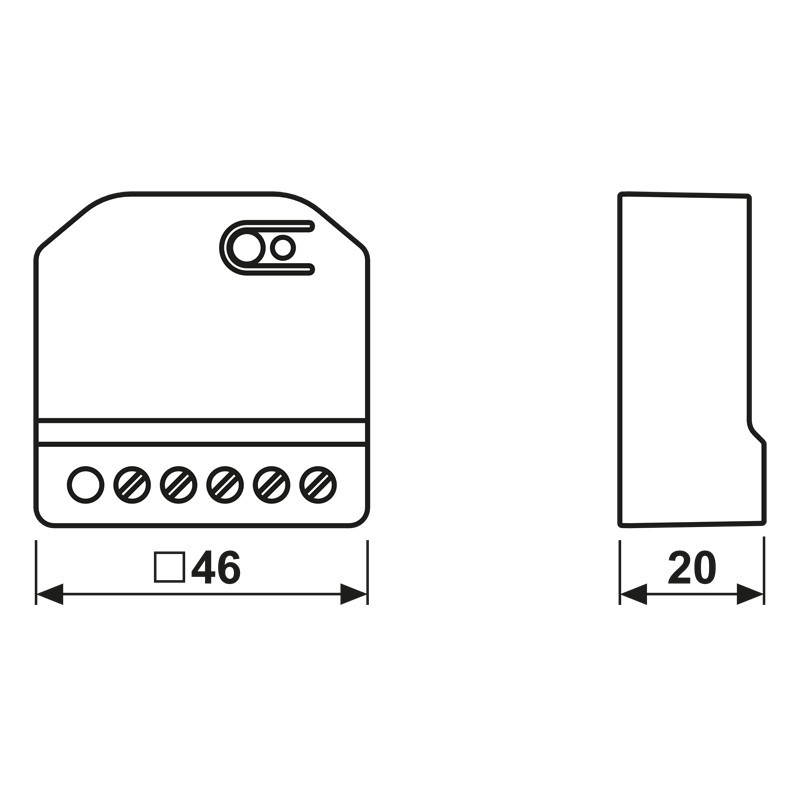

• Installation in flush box with dimensions according to DIN 49073
• Ceiling installation in the mini housing built-in adapter, ref.-no.: FM-EBG
•
• Product characteristics
• Commissioning and operation using JUNG HOME app with mobile device (smartphone or tablet) via Bluetooth®
• Free linking of the 2 binary inputs with JUNG HOME actuators (local or wireless)
• Independent use of actuator functions and binary inputs
• Multi-coloured status indicator and Prog button for commissioning
• Disabling the Prog button
• Including the load in areas (groups), central functions and scenes
• Staircase lighting function (automatic switch-off) with switch-off warning
• Run-on time, switch-on delay, switch-off delay
• Disabling function and forced guidance: Continuous ON/OFF or ON/OFF for fixed time
• Wind alarm via connection of weather sensors to binary inputs
• Trigger the disabling function using binary inputs, e.g. lock-out protection with shutters and blinds, forced guidance, etc.
• Power measurement from 0.1 to 3680 Watt and energy measurement (kWh)
• Recording of the energy flow over previous 24 hours and previous 31 days (charting)
• Operating hours counter, energy measurement period
• Power Save function (switches off standby electrical loads)
• Master/slave function (switches a wirelessly linked electrical load depending on the electrical load connected)
• Overcurrent protection shutdown
• Bluetooth® Mesh for fully encrypted wireless communication and repeater function
• Can be updated using JUNG HOME app
• Function if JUNG HOME mini actuator, JUNG HOME socket, system insert with JUNG HOME push-button, JUNG HOME motion or presence detector, or JUNG HOME room thermostat is included in the Bluetooth® Mesh network (project).
• Up to 16 time programs
• Time programs with sunrise or sunset (astro timer)
• Activate/deactivate automatic functions using the JUNG HOME app
• Automatic date and time update when connecting with mobile device
