Pöördlüliti sisu

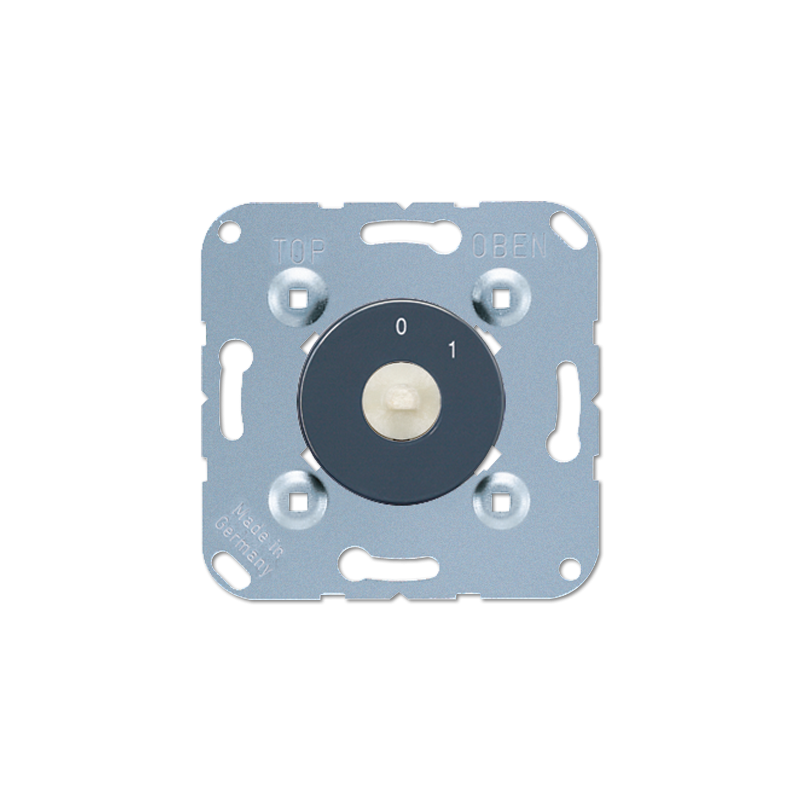

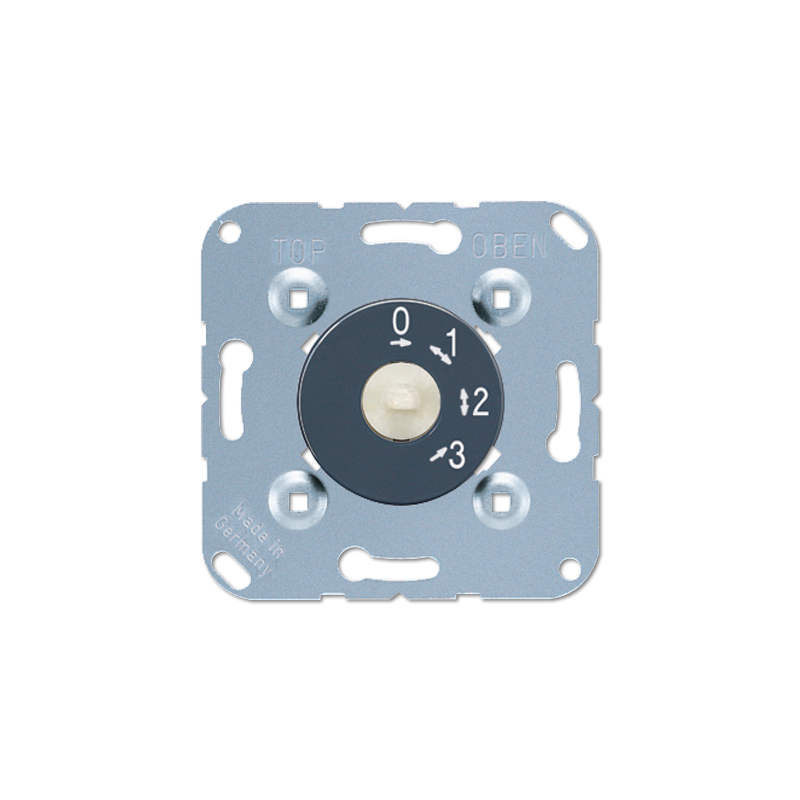

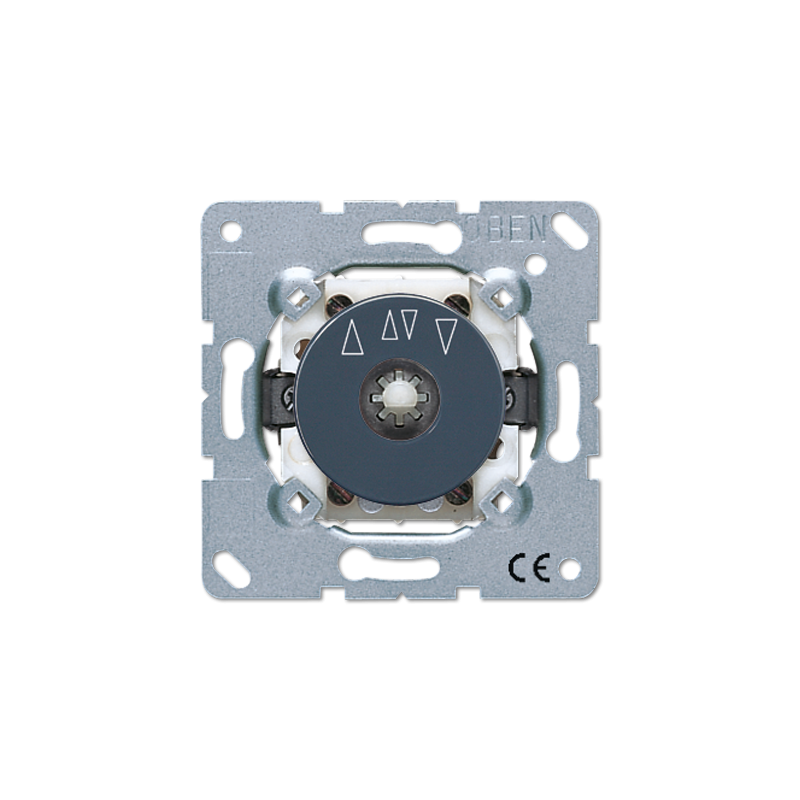

Rotary switch insert

screw terminals for wires up to 4 mm2

screw fixing only, without claws
not suitable for installation in surface caps

Installation note: No plaster compensation possible. Insert must be mounted flush with the wall. Supporting frame must be on top of wallpaper.

Spare scale disc
for ref.-no. 1101-4: SKS 1101-4
for ref.-no. 1101-20: SKS 1101-20

Centre plates:
AS / A ranges: ref.-no. .. 1541 ..
CD range: ref.-no. CD 1541 ..
SL range: ref.-no. SL 1541 ..
LS range: ref.-no. LS 1941 .., .. 1941 ..
