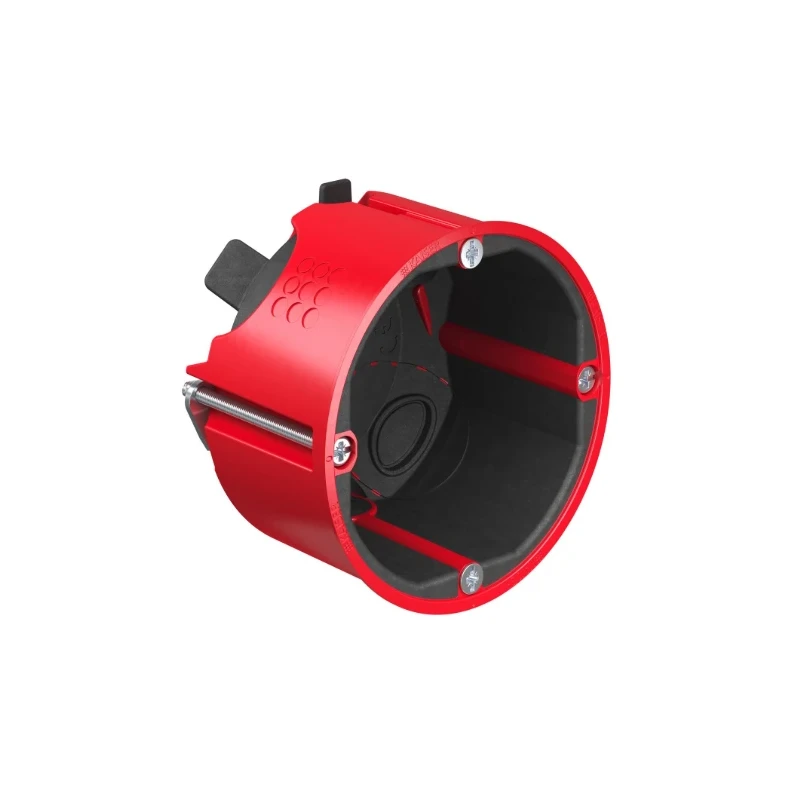

9463-03 68mm h49mm EI30-EI90 Tuletõkkeseina toos HWD 68+

For F30-F90 or EI30-EI90, F30-B to F90-B fire-protection walls
also for directly opposing installation
from wall thicknesses of 100 mm
can be combined with each other and with the one-gang junction box

Depth: 49 mm
For panel thicknesses up to: 7 - 40 mm
Cut hole Ø: 68 mm
Screw spacing: 60 mm
Support connectors for each package: 5
DIBt approvalZ-19.21-2693
ETA approvalETA-22/0129
for sound insulation walls up to: 69 dB
Conduit entries up to Ø 13 mm: 6
Tube entries up to M25: 2
Halogen-free: Yes
Packaging inner/dispatch: 10/100
