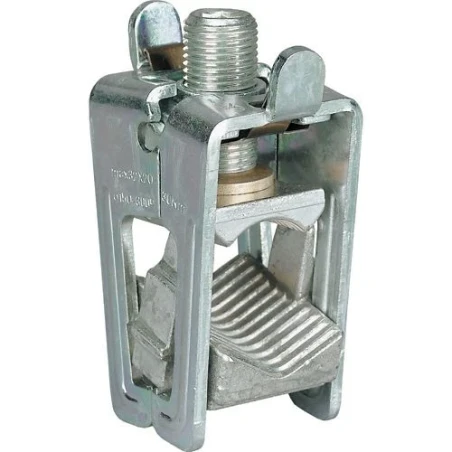

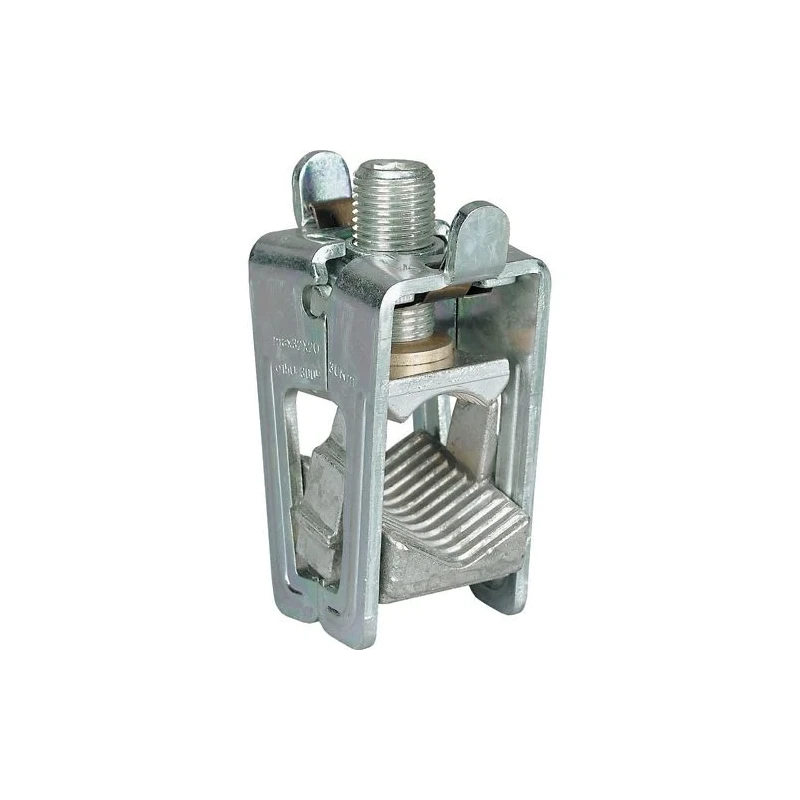

AKS300 Clamp terminal 95-300mm²

Used with

• Double T profile
• Feeder circuits
• 25 mm x 5/10 mm rail
• 30 mm x 5/10 mm rail
• 20 mm x 5/10 mm rail
• 185 mm system
• 60 mm system
• Connection

Special features

• Termination to busbars without drilling
• A cable block is used to connect the conductor to the busbar

Type

• 185 mm system
• 60 mm system
• Connection
• Width clamp 41 mm
• Degree of protection Feeder circuits UL508A; CSA-C22.2 No. 14; IEC 60439-1; CE marking
• Voltage rating (UL CSA 13) Max. 600 V AC
• Busbar thickness - max 10 mm
• Busbar thickness - min 5 mm
• Busbar width - max 30 mm
• Busbar width - min 20 mm
• Conductor cross section - max 300 mm²
• Rated operational current (Ie) - max 600 A

Functions

• Clamp terminal
• Current limiting circuit breaker, refer to approbation report
• Connections

Rated operation current (Ie) 600 A

Suitable for

• Strip conductor connection
• Round conductor connection
• Sector conductor connection
• Flat rail

Rated operational current 600 A

Terminal capacity (conductor)

• 95 mm² - 300 mm²
• MCM 300 - MCM 600
