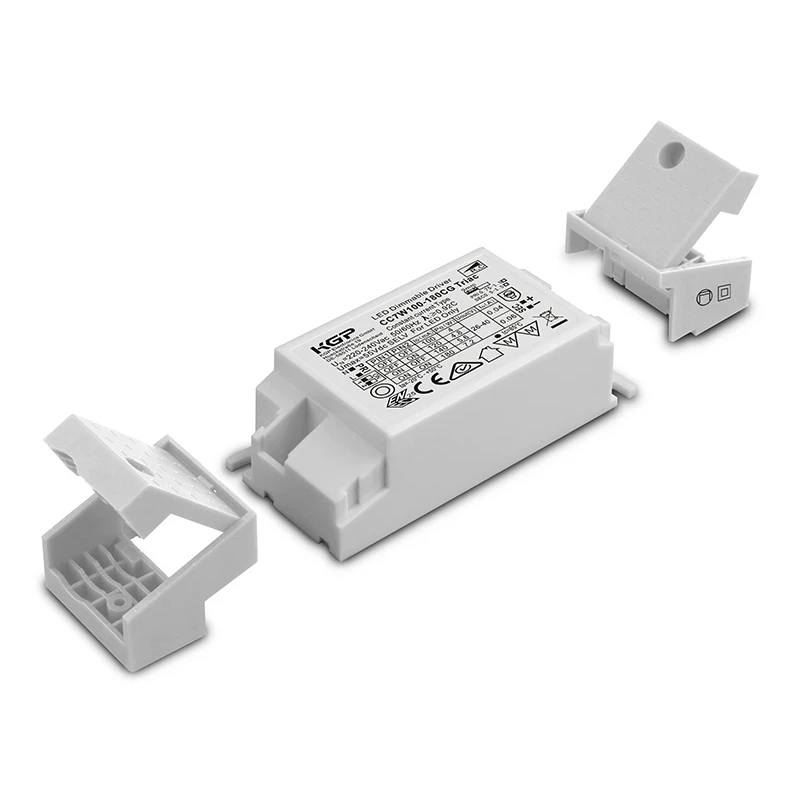

Led Driver 15W ConstantCurrent Triac dimmerdatav
Led Driver 15W ConstantCurrent Triac dimmerdatav
Led Driver 15W ConstantCurrent Triac dimmerdatav
Led Driver 15W ConstantCurrent Triac dimmerdatav

Led Driver 15W ConstantCurrent Triac dimmerdatav

Input Voltage 220 – 240V
Frequency 50 – 60 Hz
Power Factor 0.92
Current Ripple ± 5%
Constant Current LED Driver, Triac dimmable, Leading & Trailing edge
Output Current adjustable via DIP-SWITCH
200mA, 250mA, 300mA, 350mA
500mA, 550mA, 600mA, 700mA
up to 82% Efficiency
Lifetime 50.000h
IP grade IP20
Insulation Class II

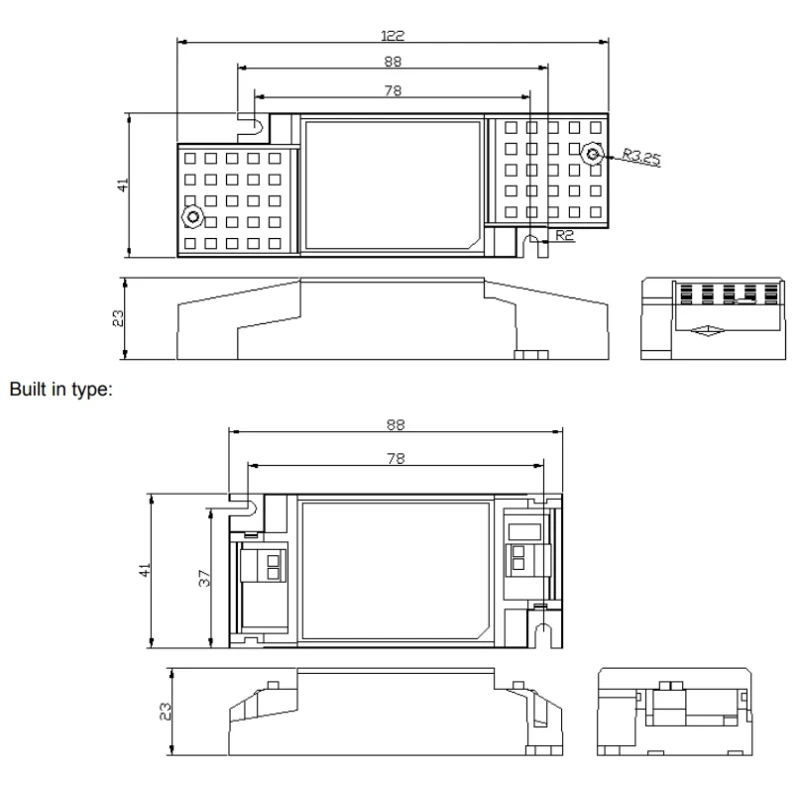

Housing with removable cord grip - 125 x 41 x 23mm
Overload Protection, Short Circuit Protection, Open Circuit Protection, Overheat Protection
SELV

Kood Kirjeldus KM-ta KM-ga ühik
CC15W200-350CG_TRIAC
 Led Driver Triac PhaseCut dimm 15W 200/250/300/350mA 26-42V ENEC Dipswitch-seadistatav KGP 10,00 € 12,20 € tk
CC15W500-700CG_TRIAC
 Led Driver Triac PhaseCut dimm 15W 500/550/600/700mA 12-20V ENEC Dipswitch-seadistatav KGP 10,00 € 12,20 € tk
CC15W400-550CG_TRIAC
 Led Driver Triac PhaseCut dimm 15W 400/450/500/550mA 16-29V ENEC Dipswitch-seadistatav KGP 10,00 € 12,20 € tk
Kood: CC15W200-350CG_TRIAC
Led Driver Triac PhaseCut dimm 15W 200/250/300/350mA 26-42V ENEC Dipswitch-seadistatav KGP
KM-ta: 10,00 €
KM-ga: 12,20 €
tk
Kood: CC15W500-700CG_TRIAC
Led Driver Triac PhaseCut dimm 15W 500/550/600/700mA 12-20V ENEC Dipswitch-seadistatav KGP
KM-ta: 10,00 €
KM-ga: 12,20 €
tk
Kood: CC15W400-550CG_TRIAC
Led Driver Triac PhaseCut dimm 15W 400/450/500/550mA 16-29V ENEC Dipswitch-seadistatav KGP
KM-ta: 10,00 €
KM-ga: 12,20 €
tk
×
