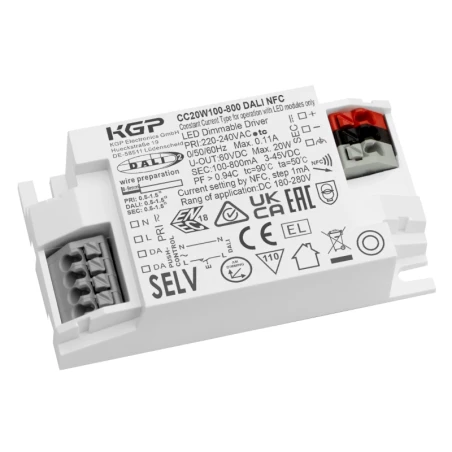

Led Driver 20W 100-800mA DALI2 dimm NFC

Technical specifications

Input Voltage 220 – 240V, Frequency 50 – 60 Hz
Power Factor 0.94
Current Ripple ±3%

Product Description
Constant Current LED Driver
dimmable DALI-2 / Touch DIM
Output Current adjustable via NFC  100mA - 800mA
up to 88% Efficiency
Lifetime 100.000h

Housing Characteristics
IP grade IP20
Insulation Class II
Housing with removable cord grip

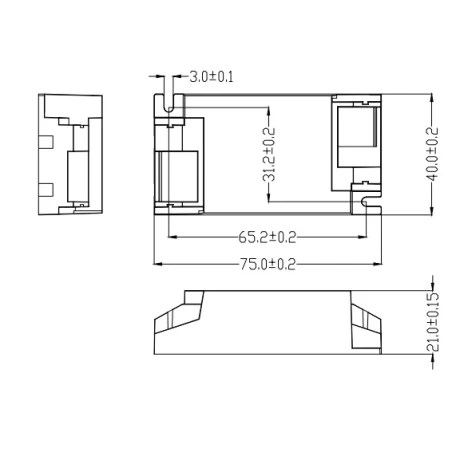

75 x 40 x 21mm

Functions
Overload Protection, Short Circuit Protection, Open Circuit Protection, Overheat Protection
SELV
